Shop Titan 640i Stand Assembly Parts
Find replacement components for the Titan 640i Stand Assembly, including the leg assembly, drip cup, plug, washer, and fastening hardware. Compare each item with the numbered stand drawing, then confirm its individual part number and required quantity before ordering.
Find the Stand Component You Need
Identify the missing or damaged component first. Match its mounting location to the drawing and review the product contents before selecting your replacement.
Leg Assembly
Titan 704-179A identifies the leg assembly at diagram position 9. Compare the installed stand arrangement and inspect the mounting area before ordering.
Find Leg Assembly 704-179ADrip Cup and Screw
Locate drip cup 700-1041 at position 6 and drip cup screw 9805230 at position 7. Check whether your service work requires the cup, its fastener, or both.
View Drip Cup ReferencesPlug and Stand Hardware
Browse the hexagonal flange screw, plug, thrust washer, and cord wrap screw. Match each component to its designated position rather than choosing by appearance alone.
Check Stand Hardware NumbersTitan 640i Stand Assembly Parts Reference

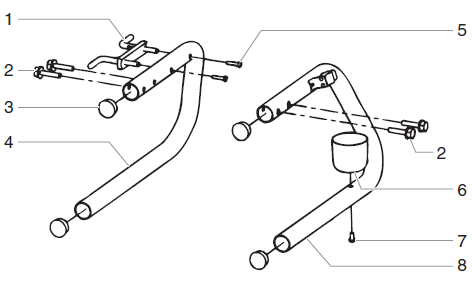

Use this reference alongside the numbered stand drawing. Diagram positions identify component locations and do not indicate the quantity supplied.
Check the supplied contents: An individual screw, plug, washer, or drip cup does not include a complete stand. Review the leg assembly listing separately to confirm its supplied components.
Confirm Your Stand Configuration Before Ordering
Record the sprayer model and serial number, then compare the installed support arrangement with the stand drawing. Select each replacement using the full individual part number, including any letter suffix.
Check the receiving opening, fastening location, and surrounding components when choosing a plug or screw. Where a connection is damaged, replacing the fastener alone may not complete the repair.
Confirm the required quantity, product contents, and current availability before purchasing. If previous repairs have changed the stand arrangement, provide photographs when requesting fitment assistance.
Inspect the Stand and Its Connections
Inspect the support arrangement for loose connections, missing components, or visible damage. Establish the cause of unwanted movement before selecting replacement parts.
Assess visible deformation and damaged mounting points before deciding which components require replacement.
Check the screws, mating threads, plug, and washer locations. Follow the applicable installation and tightening instructions.
Inspect the cup and its attachment together. Confirm whether damage is limited to one component before ordering.
Explore Other Titan 640i Service Sections
Browse the model overview or open the relevant assembly when your service work includes additional components.
Titan 640i Stand Assembly FAQ
Review these questions before selecting stand service components.
How do I identify the correct stand replacement part?
Compare your installed stand with the numbered drawing, locate the affected component, and match its individual part number to the product listing.
Which leg assembly is listed for this stand?
Titan 704-179A is the leg assembly listed at diagram position 9. Confirm your equipment arrangement and the product contents before purchase.
Are the drip cup and its screw separate products?
Yes. Drip cup 700-1041 and drip cup screw 9805230 are listed separately. Check which components your repair requires.
Will replacing a plug correct stand instability?
A plug replacement does not establish that an instability problem has been resolved. Inspect the support structure and its connections to identify the cause.
What information helps confirm the replacement?
Provide the sprayer model, serial number, support configuration, existing part number, and a clear photograph or diagram position.
Need Help Matching Your Titan 640i Stand Part?
Have your sprayer details and component information ready. Contact All Titan Parts for assistance selecting the correct stand replacement.
Call 713-931-0006 for Parts Assistance
