540ix Airless Sprayer

Titan 540IX Airless Sprayer Assembly Parts

Welcome to AllTitanParts, the go-to destination for genuine Titan Airless Sprayer parts! Our mission is to make it easier for our customers to find and order the replaceable assembly parts they need, so they can keep their Titan 540IX Airless Sprayer running like new.

We've divided the 540IX Sprayer into different assemblies to help our customers easily find the parts they need. Each assembly comes with a labelled diagram on the respective pages for quick reference.

Let's take a closer look at our assemblies:

• Main Assembly includes all the replaceable parts for the Titan 540IX Airless Sprayer motor, such as the motor brush, housing, and power cord. These are essential parts that keep your sprayer running smoothly.
• Skid Assembly includes cord wrap screws and lock nuts critical for securing the cords and cables on the sprayer. Keeping cords secure is vital for safety and optimal performance.
• The Siphon/Return Assembly is another crucial assembly that includes the Siphon Hose and Return Hose Assembly, which are critical for the operation of the sprayer.

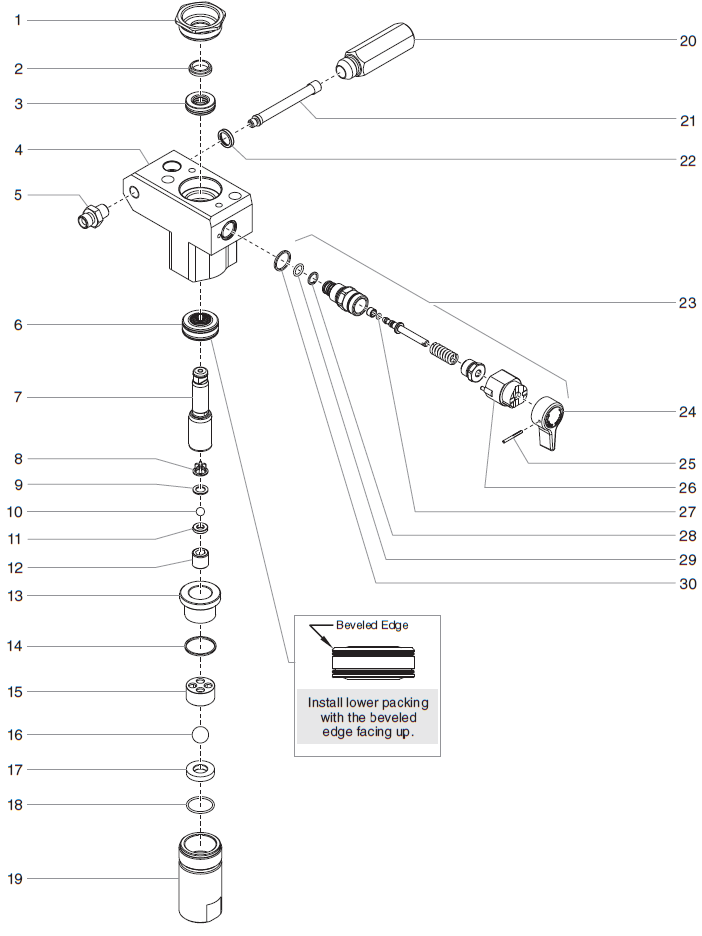

• The Fluid Section Assembly includes parts such as the Piston Rod and Piston Bushing, which are essential for the proper functioning of the fluid section of the sprayer.

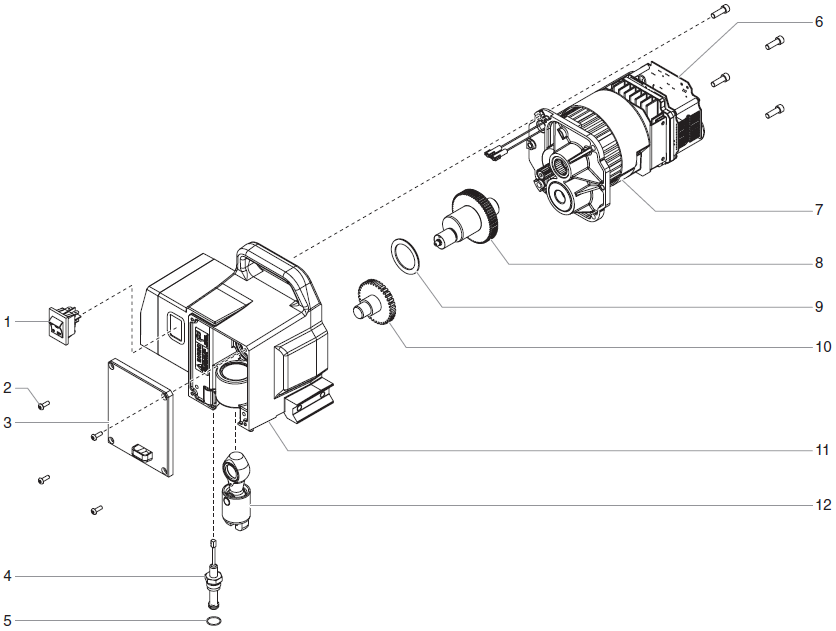

• The Drive Assembly is another important assembly that includes parts such as the 2nd Stage Gear and Transducer Jumper, which are critical for the operation of the sprayer. These parts work together to keep your sprayer running efficiently.
• Lastly, we have the High Rider Cart Assembly, which includes parts such as the Wheel Cap and Wheel Spacer, which are essential for the proper functioning of the sprayer when using the High Rider Cart.

At AllTitanParts, we take pride in providing our customers with genuine Titan Airless Sprayer parts. Our commitment to quality ensures that your equipment runs smoothly and effectively. So, shop with us today and keep your Titan 540IX Airless Sprayer running like new!

FAQ’s

1. How can I find the right replacement parts for my Titan 440IX Airless Sprayer?

You can easily find the correct replacement parts by visiting the Titan 440IX Airless Sprayer parts diagram. Each assembly has a detailed labeled diagram that helps you identify and order the exact components your sprayer needs.

2. Are the replacement parts genuine Titan products?

Yes, all parts available at AllTitanParts are genuine Titan replacement parts. We ensure every product meets Titan’s original quality standards to deliver maximum performance and durability for your sprayer.

3. What does the Fluid Section Assembly include for the Titan 440IX?

 The Fluid Section Assembly includes piston rods, piston bushings, and other key components responsible for fluid movement. Replacing these worn parts helps maintain consistent pressure and smooth paint flow during operation.

4. What is included in the Siphon/Return Assembly?

The Siphon/Return Assembly comes with a siphon hose, return hose, and other connecting components that ensure proper suction and return of paint. Keeping these parts clean and functional prevents clogs and improves spraying efficiency.

5. Can I order individual components from each Titan 440IX assembly?

 Absolutely. Whether you need parts from the Main Assembly, Skid Assembly, Drive Assembly, or High Rider Cart Assembly, you can order each component individually to repair or maintain your Titan 440IX Airless Sprayer.

Maximum operating pressure: 3,300 psi (≈ 22.8 MPa).

Maximum flow rate: approx 0.50 gallons/min (1.9 L/min).
Maximum tip size: 0.022″.
Motor power: ~ 1.15 HP, 120 V, AC (for the 540IX version).
