440ix Airless Sprayer

Find the Right Assembly for Your 440IX Airless Sprayer

At AllTitanParts, we have made it easier to find the replaceable parts you need by dividing the Titan 440IX Airless Sprayer into different Assemblies, each with its labelled diagram on respective pages.

Here is a brief overview of each Assembly:

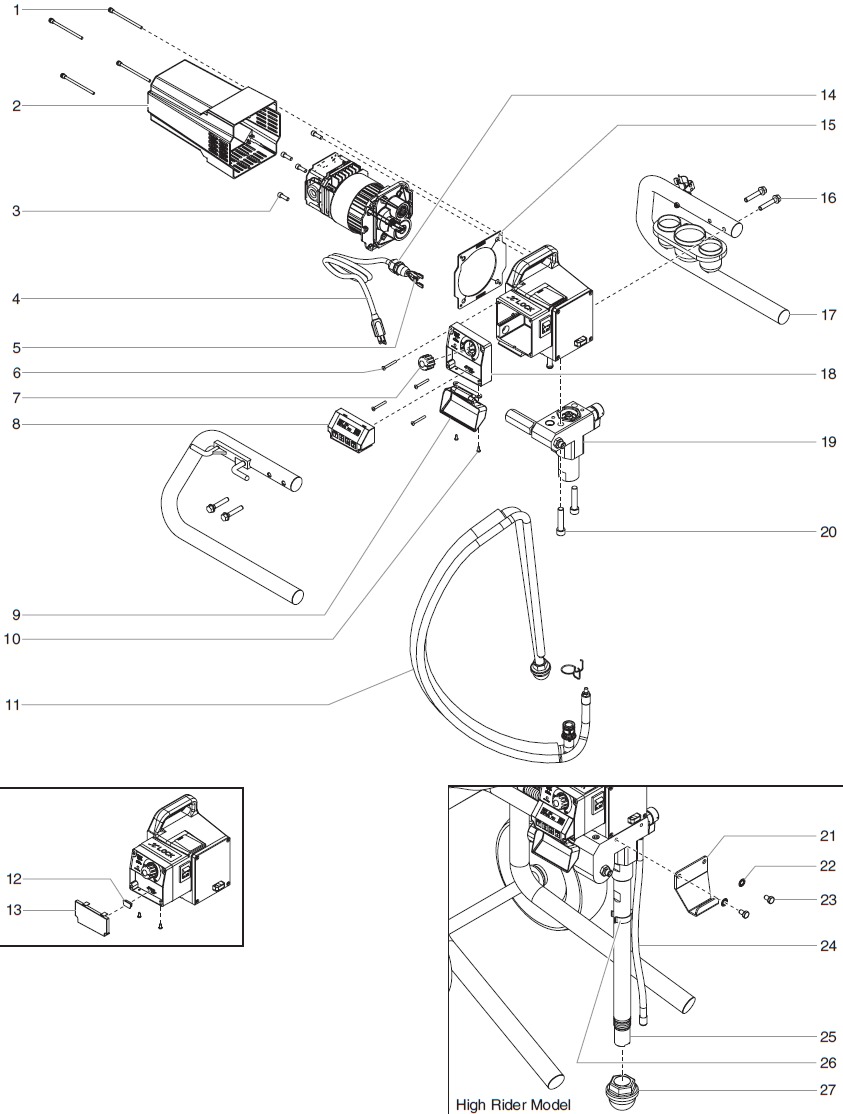

Main Assembly:

The Main includes all the complete sprayer parts, such as the pump, motor, and spray gun.

Skid Assembly:

Skid assembly includes screws and lock nuts, which are essential to keep the sprayer in place and ensure proper stability during operation.

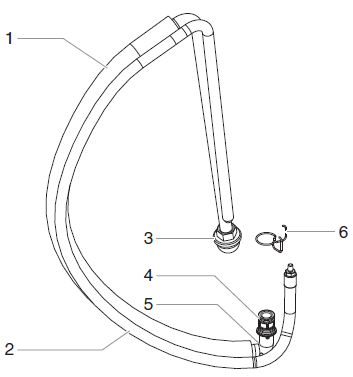

Siphon/Return Assembly:

Siphon/Return assembly includes the siphon hose, return hose, and other components necessary for proper siphon and return function.

Fluid Section Assembly:

Fluid Section assembly includes the piston rods and piston bushings responsible for fluid movement through the sprayer.

Drive Assembly:

The drive assembly includes the 2nd stage gear and transducer jumper, which are crucial for the efficient operation of the sprayer.

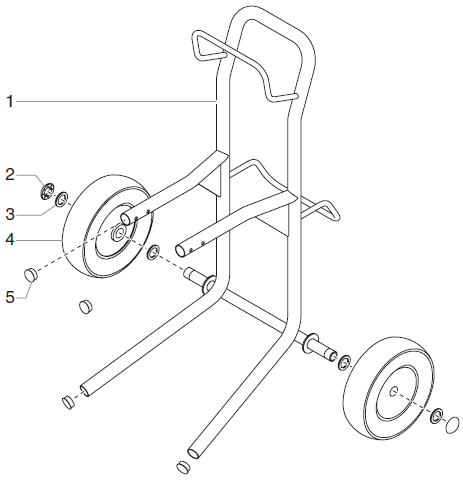

High Rider Cart Assembly:

This assembly includes wheel caps and plugs, which are essential for the proper manoeuvrability and transportation of the sprayer.

Each assembly has a diagram on the respective pages, making identifying and ordering the specific parts you need easier. We pride ourselves on offering only genuine Titan sprayer parts to ensure you get the best performance and longevity from your equipment.

FAQ’s

1. How can I find the right replacement parts for my Titan 440IX Airless Sprayer?

You can easily find the correct replacement parts by visiting the Titan 440IX Airless Sprayer parts diagram. Each assembly has a detailed labeled diagram that helps you identify and order the exact components your sprayer needs.

2. Are the replacement parts genuine Titan products?

Yes, all parts available at AllTitanParts are genuine Titan replacement parts. We ensure every product meets Titan’s original quality standards to deliver maximum performance and durability for your sprayer.

3. What does the Fluid Section Assembly include for the Titan 440IX?

 The Fluid Section Assembly includes piston rods, piston bushings, and other key components responsible for fluid movement. Replacing these worn parts helps maintain consistent pressure and smooth paint flow during operation.

4. What is included in the Siphon/Return Assembly?

The Siphon/Return Assembly comes with a siphon hose, return hose, and other connecting components that ensure proper suction and return of paint. Keeping these parts clean and functional prevents clogs and improves spraying efficiency.

5. Can I order individual components from each Titan 440IX assembly?

 Absolutely. Whether you need parts from the Main Assembly, Skid Assembly, Drive Assembly, or High Rider Cart Assembly, you can order each component individually to repair or maintain your Titan 440IX Airless Sprayer.

Maximum operating pressure: 3,300 psi (≈ 22.8 MPa).

Maximum flow rate: approx 0.50 gallons/min (1.9 L/min).
Maximum tip size: 0.022″.
Motor power: ~ 1.15 HP, 120 V, AC (for the 540IX version).
