Titan 1140ix Digital Airless Sprayer Parts & Diagrams
Shop genuine replacement parts for your Titan 1140ix Digital Airless Sprayer at AllTitanParts. Browse dedicated assembly pages to locate components for the drive, fluid section, filter, siphon system, carts, and PRIME/SPRAY valve.
Use the diagram for your equipment configuration to identify each required component. Match its numbered reference to the listed Titan part number, then review fitment and supplied contents before ordering.
Find the Correct Part in Four Steps
Keep your sprayer’s model, serial number, and existing component references available while building your repair parts list.
1. Confirm the Model
Check the identification label and record the model, serial number, and cart configuration.
2. Open the Assembly
Choose the dedicated assembly page containing the component you need to service.
3. Match the Callout
Locate the item on the diagram and match its reference to the manufacturer part number.
4. Review & Order
Confirm compatibility, quantity, package contents, and any replacement-number information.
Browse Titan 1140ix Digital Assembly Parts
Select the relevant assembly below to compare its parts breakdown with your machine.

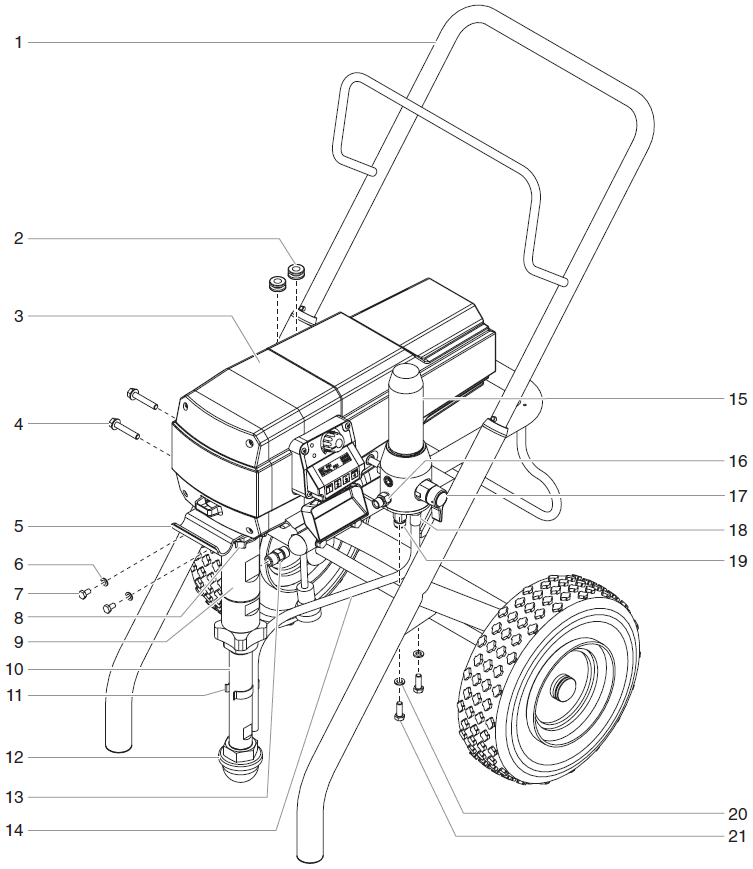

Digital Main Assembly Parts
Find listed components such as the fluid section, siphon tube, inlet screen, bypass tube, fittings, and mounting hardware.

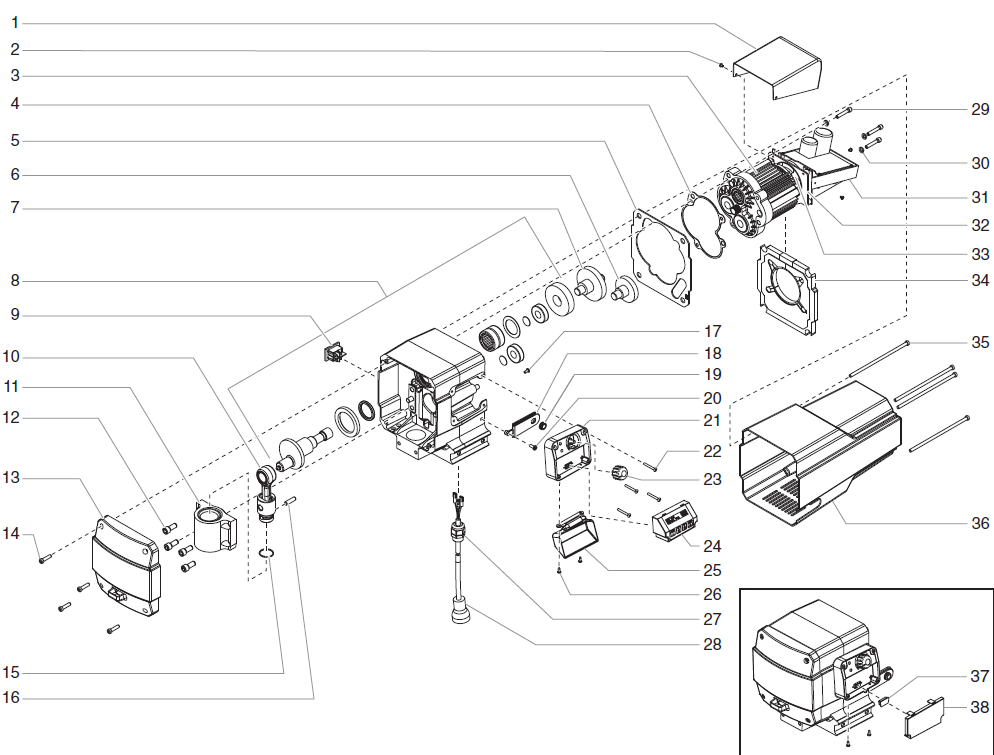

Digital Drive Assembly Parts
Use the Digital drive diagram to identify the applicable drive components, covers, gaskets, controls, and associated hardware.

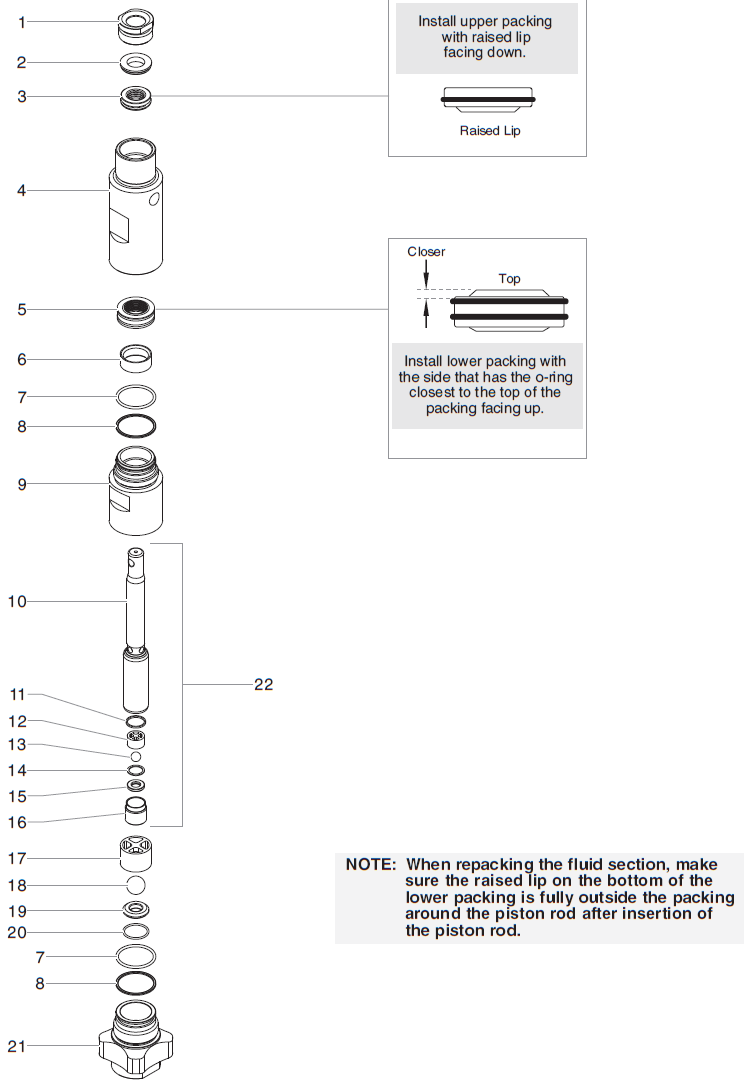

Digital Fluid Section Parts — 800-300
Open the fluid section breakdown to identify the individual pump components required for your repair.

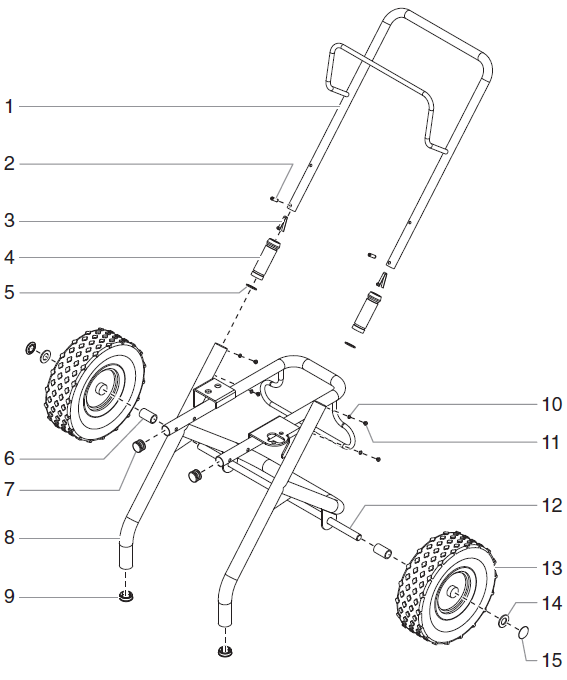

High Rider Cart Parts — 800-600
Compare the High Rider cart diagram with your installed cart before choosing replacement components.

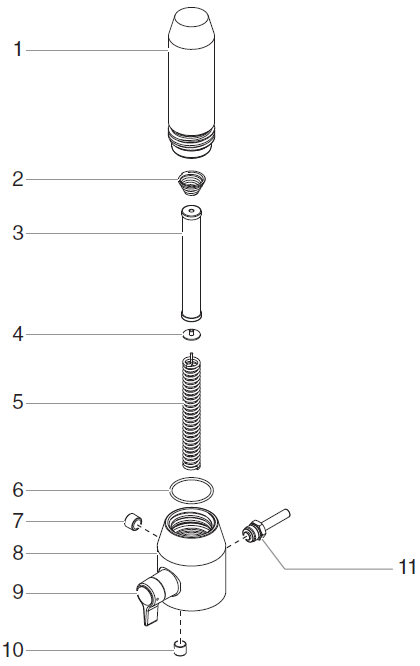

Digital Filter Assembly Parts — 800-900
Locate the filter assembly parts and match the required item to your installed filtration arrangement.
Low Rider Siphon Assembly Parts
Use the Low Rider siphon diagram when identifying intake components and their connection arrangement.
Low Rider Cart Parts — 800-590
Select this section to identify cart hardware for the Low Rider configuration.

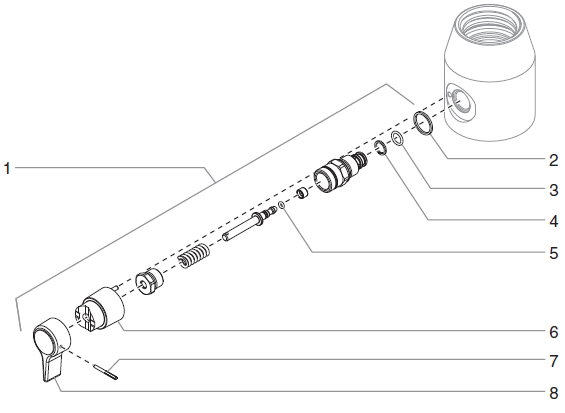

Digital PRIME/SPRAY Valve Parts — 800-915
Identify valve service components through the assembly diagram and associated parts listings.
Sprayer Accessories
Browse listed accessories and confirm their connections, specifications, and application before checkout.
What to Verify Before Buying Parts
| Selection Detail | Buying Guidance |
|---|---|
| Model and revision | Check the identification label, serial information, and applicable diagram before selecting a component. |
| Drive and electrical parts | Match the exact part number, connections, and applicable electrical specifications to your machine. |
| Fluid section | Compare the installed pump with its diagram and review the contents of any replacement assembly or service kit. |
| Cart and siphon configuration | Use the diagram matching the cart and material intake arrangement fitted to your sprayer. |
| Filters and accessories | Confirm the relevant mesh, connections, ratings, and application requirements. |
| Package contents | Check which items are supplied, how many are required, and whether related components are sold separately. |
Featured Pump Component: Titan 800-300 Fluid Section
The Titan 800-300 Fluid Section is listed on the 1140ix Digital main assembly page. The category also provides a dedicated parts breakdown for the 800-300 fluid section.
Compare your installed pump with the applicable diagram before selecting the assembly or individual service components. Review the product listing for current fitment information and supplied contents.
Prepare an Accurate Repair Parts List
Record the diagram reference, part number, and required quantity for each item. Inspect adjacent components during service to identify damaged hardware, worn mating surfaces, or missing seals that may also need attention.
Follow the equipment manual’s troubleshooting, pressure-relief, and power-disconnection procedures. Similar symptoms can have different causes, so establish the fault before choosing replacement parts.
Need Help Matching a 1140ix Digital Part?
Have your model, serial number, equipment configuration, and diagram reference ready. Contact AllTitanParts for assistance identifying the replacement part before ordering.
Call 713-931-0006Frequently Asked Questions
How do I identify the correct Titan 1140ix Digital part?
Confirm your model, serial number, and configuration. Use the relevant Digital assembly diagram to match the component reference to its listed Titan part number, then review compatibility.
Which assembly sections are available for this model?
The category includes Digital main, drive, fluid section, filter, and PRIME/SPRAY valve assemblies, High Rider and Low Rider carts, a Low Rider siphon assembly, and accessories.
Is Titan 800-300 listed for the 1140ix Digital?
Yes. Titan 800-300 appears on the Digital main assembly page, and the category includes its fluid section diagram. Confirm your installed pump and applicable diagram before purchasing.
Which cart assembly references are listed?
The category identifies the High Rider cart as 800-600 and the Low Rider cart as 800-590. Choose the parts diagram matching your installed cart.
Are all parts pictured in a diagram included with one order?
No. A diagram shows component positions and identification references. Review each product listing for supplied contents, quantities, and separately sold items.
