Titan 740ix Parts for Accurate Repairs and Maintenance
Find genuine Titan OEM replacement components for your Titan 740ix Airless Sprayer. Browse assembly diagrams to identify the parts needed for service, compare ordering references and confirm selections against your installed equipment.
Identify Your Component Before Ordering
Start with the assembly containing the component being repaired. Compare its diagram with your machine, locate the numbered callout and match it to the listed Titan part number. Keep your model, serial number and installed cart configuration available when checking compatibility.
1. Confirm the Model
Record the equipment’s model and serial number to select the applicable parts documentation.
2. Select an Assembly
Choose the category below that corresponds to the component’s location.
3. Match the Ordering Number
Use the diagram and parts list together. Diagram positions identify locations; part numbers identify orderable components.
4. Review the Listing
Check fitment notes, included contents, replacement references and required quantities before purchasing.
Browse Titan 740ix Replacement Parts by Assembly

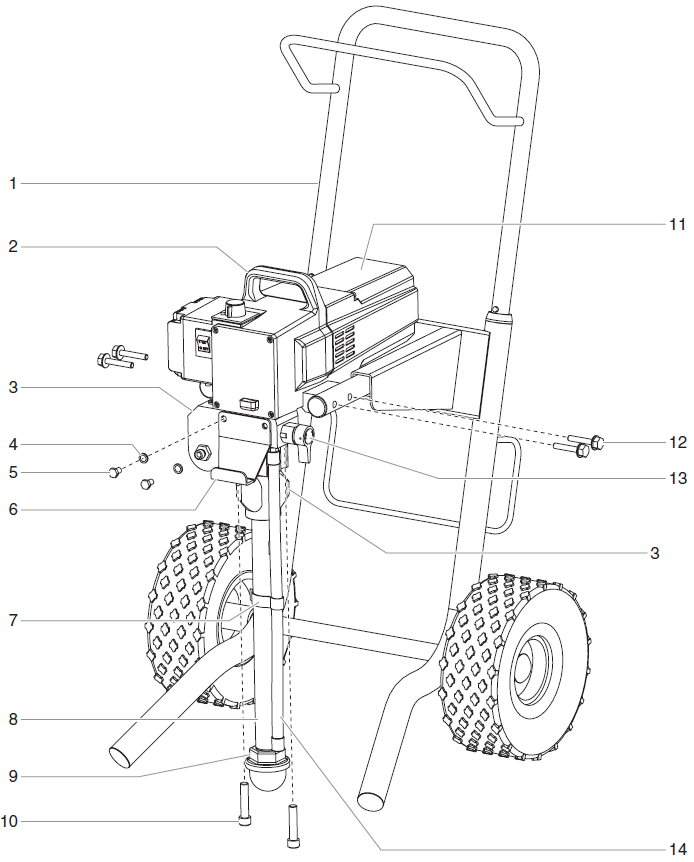

Main Assembly
Use the main assembly category to identify components within the overall sprayer arrangement. Confirm each selection against the applicable diagram and installed equipment.

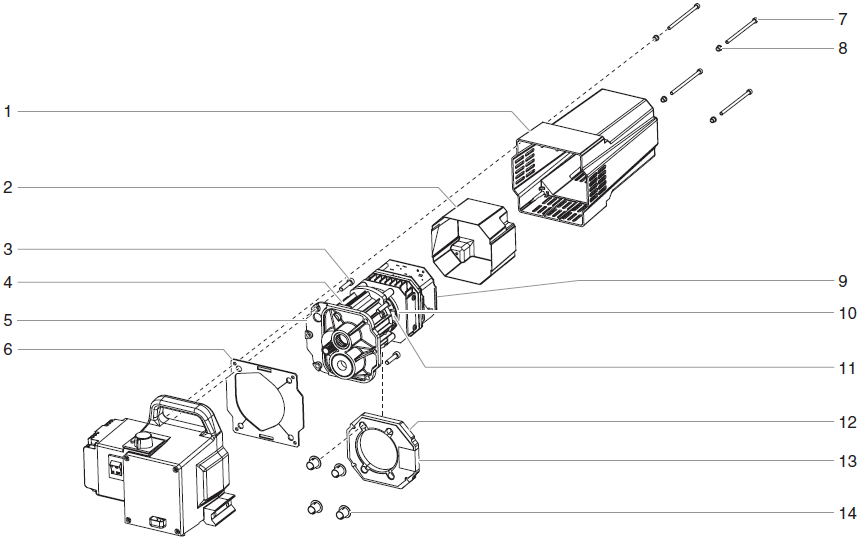

Browse Main Assembly PartsMotor Assembly
Locate listed components including the electronic motor cover, motor mount screw, gasket housing and baffle spacer. Match the replacement to your installed motor arrangement.
Browse Motor Assembly PartsGear Box Assembly
Find listed components such as the crankshaft/gear assembly, second-stage gear, thrust washer and transducer assembly. Check individual part references before selecting mechanical or control components.

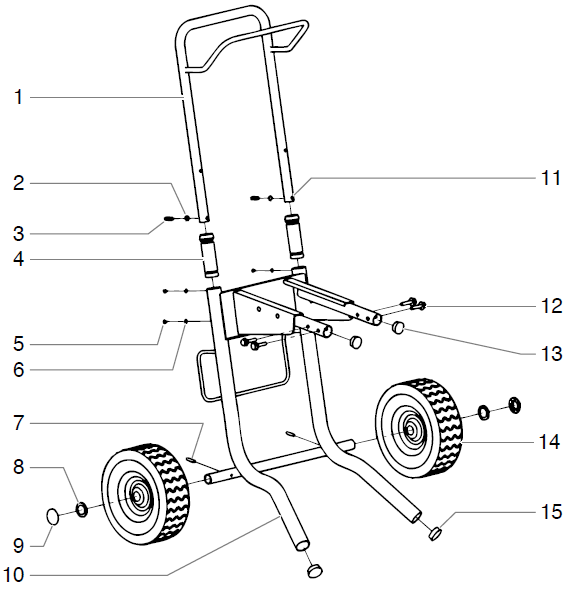

Browse Gear Box PartsHigh Rider Cart Assembly
Explore the High Rider cart category referenced as P/N 800-570. Compare the installed cart with the diagram before choosing configuration-specific components.
Browse High Rider Cart PartsLow Rider Cart Assembly
Browse the Low Rider cart category referenced as P/N 705-200. Verify component positions, mounting references and required quantities for your existing cart.
Browse Low Rider Cart PartsFluid Section Assembly
Consult the fluid section diagram when planning pump service. Confirm the installed assembly and relevant component numbers before purchasing replacement parts.
Browse Fluid Section PartsLow Rider Suction Set
Review the Low Rider suction set referenced as P/N 704-300. Check the existing intake arrangement and connections against the applicable diagram.
Browse Low Rider Suction Set PartsAccessories
Explore the accessories linked from the 740ix catalog. Review each product’s connections and operating requirements before adding it to your order.
Browse 740ix AccessoriesCheck Compatibility and Package Contents
| Ordering Detail | What to Verify |
|---|---|
| Equipment identification | Use the model and serial number to select applicable parts documentation. |
| Installed motor and pump | Compare existing assemblies with the relevant diagram and service reference. |
| Cart and intake arrangement | Match High Rider or Low Rider components to the installed configuration. |
| Titan part number | Confirm the ordering reference and documented replacement-number notes. |
| Included items and quantity | Identify kit contents and any hardware that requires a separate purchase. |
An assembly diagram illustrates component relationships. It does not establish that every pictured item is included with a single part, kit or assembly purchase.
Featured Drive Component: Titan 704-173A
Titan 704-173A Crankshaft/Gear Assembly appears in the 740ix gearbox catalog. This component converts motor rotation into reciprocating motion for the piston pump. If inspection identifies a need for replacement, confirm the installed drive arrangement and applicable part reference before ordering.
View Titan 704-173A Crankshaft/Gear AssemblyPrepare for Service with the Correct Documentation
Diagnose operating problems using the applicable Titan manual before selecting replacement components. Priming difficulties, pressure changes or unusual noise can have several causes. Use inspection findings to establish the repair needed, then identify the required parts through the diagram.
Complete the manufacturer’s prescribed pressure-relief procedure and disconnect electrical power before maintenance. Follow the documented service instructions and use a qualified technician for electrical or internal repairs when required.
Confirm compatibility through part numbers and equipment documentation. Similar model names, including 740i, 740ix and 740ix Digital, do not establish component interchangeability.
Find the Replacement Parts Your 740ix Needs
Choose an assembly above to begin your search. For identification assistance, have your model, serial number, installed configuration and existing part number ready.
Call 713-931-0006 for Parts AssistanceFrequently Asked Questions
How do I find the correct Titan 740ix replacement part?
Check your model, serial number and installed configuration. Open the relevant assembly diagram, match its callout to the listed Titan part number, and review compatibility notes before ordering.
Which parts categories are available for the 740ix?
The catalog includes main, motor, gear box, High Rider cart, Low Rider cart, fluid section, Low Rider suction set and accessories categories.
What references identify the 740ix cart assemblies?
The catalog references High Rider cart assembly P/N 800-570 and Low Rider cart assembly P/N 705-200. Match replacement components to the cart installed on your sprayer.
Is Titan 704-173A listed for the 740ix gearbox?
Yes. Titan 704-173A Crankshaft/Gear Assembly appears in the 740ix gearbox parts list. Confirm the installed drive arrangement and applicable diagram before purchasing.
Does one purchase include everything shown in an assembly diagram?
Review the selected product listing for included components and quantities. Some items illustrated in an assembly diagram are sold separately and may not be included with your purchase.
