Shop Titan 440ix Main Assembly Parts
Plan your next repair with Titan 440ix Main Assembly Parts. Browse genuine OEM components for power connections, digital controls, fluid delivery and machine mounting. Match each replacement to your sprayer configuration and Titan part number before placing your order.
Find the 440ix Component Your Repair Requires
Start with the affected system, then locate the component in the main assembly breakdown. Review individual product details to confirm fitment, supplied contents and any associated items needed for installation.

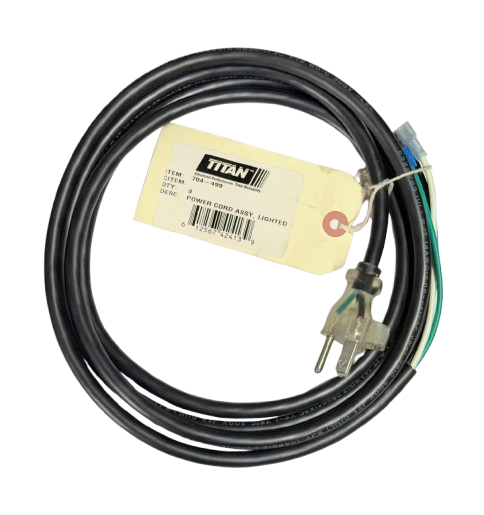

Inspect the cord, plug and entry point for damage. Confirm electrical specifications and the correct cord version for your machine.
Shop Titan 704-499 Power Cord →Review the replacement control assembly when diagnosis identifies a fault in the digital interface. Check power and connections before condemning the unit.

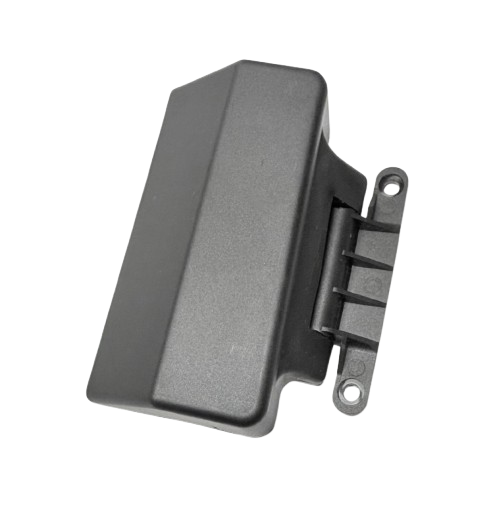

View Titan 704-469 Xact Control →Inspect the control cover and its mounting points during service. A replacement cover is a separate component from the electronic control assembly.
Find Titan 704-467 Control Cover →Confirm the pump assembly specified for your configuration. Review the product listing and associated breakdown before choosing a complete assembly or individual repair parts.
Browse Titan 704-538 Fluid Section →Inspect the material-intake and return connections. Check hose routing, connection details and package contents against your machine before ordering.
Explore Titan 704-300A Hose Assembly →Choose the Correct Titan 440ix Main Assembly Replacement
Similar-looking components can differ by electrical specification, machine revision or frame configuration. Confirm the exact application rather than relying on the 440 model name alone.
Record the exact model and serial number from the identification label.
Check the machine's frame arrangement, electrical specifications and relevant revision details.
Locate the required component and verify its Titan manufacturer number.
Check whether seals, mounting hardware or related fittings require separate purchase.
| Repair Area | Listed Component / Number | Selection Priority | Associated Inspection |
|---|---|---|---|
| Electrical supply | Power cords: 704-499 / 704-553 | Exact electrical version and connection | Plug, entry point and wiring condition |
| Digital interface | Xact control: 704-469 | Control system compatibility | Power supply and connectors |
| Control enclosure | Control cover: 704-467 | Cover shape and mounting points | Surrounding housing and fasteners |
| Pump replacement | Fluid section: 704-538 | Configuration and supplied contents | Mounting and fluid connections |
| Material intake / return | Hose assembly: 704-300A | Connection layout and routing | Seals, retention and restrictions |
| Assembly mounting | Motor screw: 700-681; fluid section screw: 704-117 | Specified location and required quantity | Threads and mating surfaces |
Diagnose the System Before Ordering Main Assembly Parts
A symptom does not identify a failed part by itself. Follow the troubleshooting sequence for your exact machine and inspect connected components before replacing a major assembly.
Check the prescribed external power-supply conditions and inspect the disconnected cord for visible damage. Have internal electrical faults assessed by a qualified technician.
Record any displayed fault information. Verify the required power and connection checks before selecting a replacement digital control assembly.
Inspect the material supply and intake path using the troubleshooting instructions. Rule out accessible restrictions or connection issues before choosing a pump replacement.
Identify the affected location after pressure relief. Inspect the relevant mating surfaces, seals, fasteners and attachment points before reassembly.
Investigate the underlying cause rather than repeatedly replacing the same part. Review installation, connected components and operating conditions.
Service safety: Relieve system pressure, disconnect electrical power and secure the machine before disassembly. Follow the applicable service procedures. Electrical diagnosis and repairs should be performed by a qualified technician.
Use a detailed assembly breakdown when your repair requires internal components rather than the larger unit shown in the main diagram.
Titan 440ix Main Assembly Parts FAQ
Review these ordering and repair questions before purchasing. Keep your model, serial number and required component details available for assistance.
Have your model, serial number, machine configuration and existing component number ready. Contact AllTitanParts for help matching the replacement before ordering.
Call 713-931-0006 for Parts Assistance
