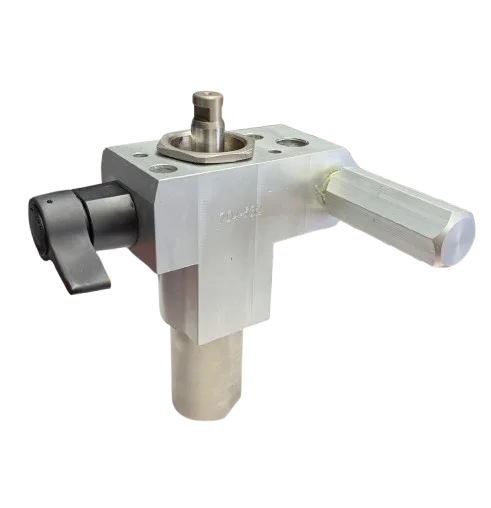

Titan 704-538 Fluid Section Assembly
OEM Titan Pump Module
Titan 704-538 Fluid Section Assembly is a genuine OEM complete pump module for the Titan 440IX and 540IX sprayers, preassembled with the housing, valves, piston, packings, and seals required for a full drop-in replacement.
Compatibility
Replace when the pump will not hold pressure, leaks internally, or when multiple wear components (valves, piston, cylinder) are worn. The assembly is supplied preassembled for direct installation.
Titan Fluid Section Replacement
Titan 704-538 Fluid Section Assembly for 540IX & 440IX Service
Titan 704-538 is a complete fluid section assembly used to manage material flow and pressure in the Titan 440IX and 540IX airless sprayers. When the original fluid section becomes worn, damaged, or develops leaks, this preassembled unit restores proper fluid handling, pressure maintenance, and leak-free operation.
Assembly Includes
- Pump housing and cylinder assembly
- Inlet and outlet check valves
- Piston and rod assembly
- Packing kit and seals
- Fluid inlet and outlet ports
- Pressure relief components
- Mounting hardware and gaskets
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM complete fluid section assembly for the Titan 440IX and 540IX. Includes all major wear components in the fluid path for comprehensive pump restoration. |
| Function | Manages material intake, pressurization, and discharge. Creates pressure to move material from supply to spray tip, controls flow through check valves, and maintains consistent pressure for uniform spray patterns. |
| Compatible Titan Machines | Titan 540IX (primary fit); Titan 440IX. Always confirm fitment using your exact model's parts diagram and serial number. |
| OEM Part Number | 704-538 Fluid Section Assembly. |
| Replacement Indicators | Visible material leakage from the pump area despite seal replacement; inability to reach or maintain proper spraying pressure; multiple worn components (valves, piston, cylinder) needing replacement; pulsating or irregular material delivery. |
| Related Parts Commonly Serviced Together | Spray gun and tip (worn tips affect pattern quality); suction tube and filter (ensure unrestricted material intake); high-pressure hose and connections (verify integrity for safe operation). |
| Common Problems Solved | Restores proper fluid handling, eliminates pressure loss and material leakage, ensures consistent spray patterns, and prevents premature failure of individual components by replacing all wear points simultaneously. |
| Why Genuine OEM | Preassembled with exact-fit components for proper sealing and pressure control. A complete assembly ensures all critical wear parts are renewed together, preventing premature failure from mismatched components. |
Service guidance: Relieve system pressure and disconnect power before servicing. The assembly comes as a complete unit, so no internal component assembly is required. Installation requires standard tools including wrenches, thread sealant for connections, and possibly a torque wrench for proper bolt tightening. Always consult the service manual for your specific sprayer model for detailed instructions.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
