Shop Titan 440ix Fluid Section Assembly Parts
Plan your pump repair with Titan 440ix Fluid Section Assembly Parts. Browse genuine OEM replacement components, identify the affected sealing, piston or valve area, and match each required item to your machine configuration and Titan part number before ordering.
Find the Components for Your 440ix Pump Repair
Start with the diagnosed repair area. Inspect connected components and mating surfaces before deciding which items to replace, then review each listing for fitment and package contents.
Review the upper seal repair option and inspect the piston rod for surface damage before installing replacement packings.
Shop Titan 704-564 Upper Packing Kit →Inspect the rod during pump service. Scoring or other damage can affect the condition of newly installed sealing components.
View Titan 704-551A Piston Rod →Examine the seat and mating valve components during inspection. Confirm the replacement reference and assembly requirements before ordering.
Find Titan 704-558 Outlet Valve Seat →Match inlet components to their diagram positions. Inspect the valve area for contamination and damage before selecting replacements.
Check Inlet Valve Part Numbers →Review the valve assembly when diagnosis identifies a fault in this area. Check associated connections and operating components during service.
Browse Titan 700-258 PrimeSpray Valve →Choose the Correct Titan 440ix Fluid Section Replacement

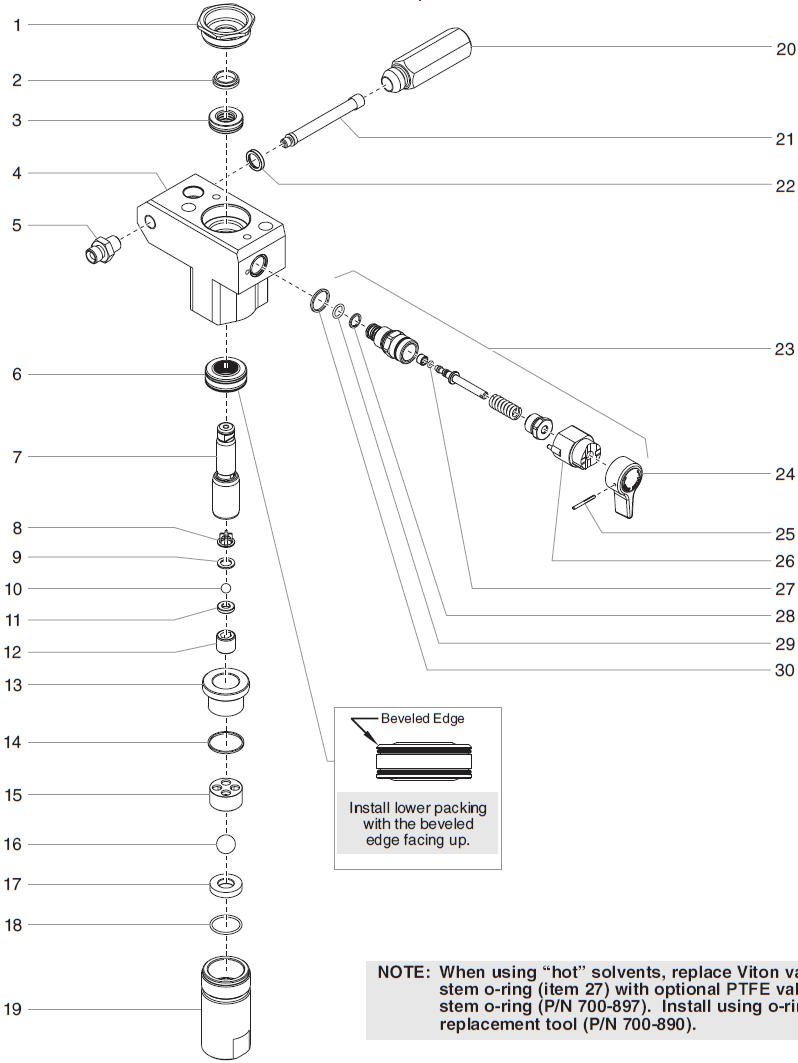

Use the applicable pump breakdown to identify components. Check the condition of mating parts and review kit contents so you can plan the repair without assuming that every associated seal is included.
Record the exact model, serial number and relevant machine configuration.
Follow the troubleshooting sequence and determine which pump area requires service.
Verify the diagram position and current replacement number for the required component.
Inspect mating components and confirm which seals or hardware are supplied separately.
| Repair Area | Listed Component | Titan OEM Number | Selection Check |
|---|---|---|---|
| Upper sealing | Upper packing kit | 704-564 | Kit contents and mating rod condition |
| Lower sealing | Lower packing | 0532915 | Correct version and installation orientation |
| Reciprocating component | Piston rod | 704-551A | Surface condition and assembly compatibility |
| Piston support | Upper guide / piston bushing | 700-587 / 0509590 | Separate positions in the pump breakdown |
| Outlet valve | Ball / seat | 762-144 / 704-558 | Mating surfaces and required seals |
| Inlet valve | Ball / foot valve seat | 762-145 / 762-137 | Exact valve location and component condition |
| Prime / spray switching | PrimeSpray valve assembly | 700-258 | Diagnosed fault and supplied components |
Inspect the Fluid Section Before Rebuilding
Leakage, poor priming or inconsistent delivery can have several causes. Identify the fault through the prescribed diagnostic procedure before selecting a repair kit or replacement assembly.
Locate the affected area after pressure relief. Inspect the relevant seals, connection surfaces and components before deciding what requires replacement.
Complete the recommended intake, filtration and spray-system checks before concluding that internal pump wear is responsible.
Inspect the rod and associated support components during disassembly. Address damaged mating surfaces before fitting new packings.
Follow the cleaning and inspection procedure. Check the valve components together rather than assuming one new item will correct every issue.
Review part selection, installation, mating-component condition and operating conditions to identify the underlying cause.
Service safety: Relieve system pressure, disconnect electrical power and secure the machine before disassembly. Follow the applicable procedures for seal orientation, lubrication, assembly sequence and torque. Never use your hand to check for pressurized fluid leaks.
Open the relevant section when diagnosis identifies an intake, drive or mounting issue beyond the fluid section.
Titan 440ix Fluid Section Assembly Parts FAQ
Use these answers to plan your purchase. Keep the machine details, required component number and diagnosed repair area available when requesting assistance.
Have your model, serial number, diagram position and existing part number ready. Contact AllTitanParts for help identifying the appropriate replacement before ordering.
Call 713-931-0006 for Pump Parts Help
