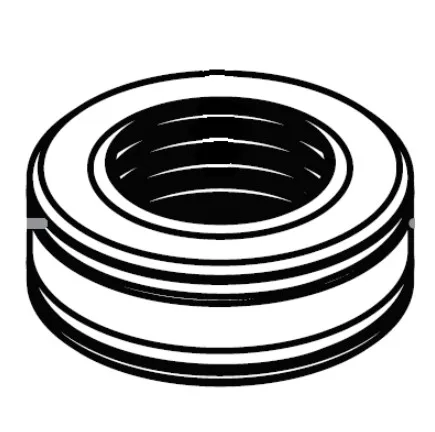

Graco part 0532915 is a lower packing kit used to seal the piston inside the pump of compatible airless sprayers. This kit contains a durable UHMWPE (Ultra-High Molecular Weight Polyethylene) packing, which provides a reliable seal against the cylinder wall to maintain pressure during operation. When the packing wears, the sprayer may lose prime, surge, or leak fluid. Replacing this kit restores pumping efficiency and extends the life of the pump on compatible Graco units.
| Part Number | 0532915 |
|---|---|
| Part Description | Lower Packing Kit |
| Brand | Graco |
| Fits | Impact Series (select models) |
| Condition | New |
The Graco 0532915 Lower Packing Kit is a wear item designed to seal the piston within the pump of Impact series airless sprayers. It consists of a UHMWPE (Ultra-High Molecular Weight Polyethylene) packing that forms a dynamic seal against the cylinder wall. This seal is essential for creating the vacuum needed to draw fluid from the supply and for building the high pressure required for operation. As the sprayer cycles, this packing is subject to constant friction and wear from abrasives in the paint.
Over time, this sealing surface will degrade. When the lower packing wears out, the pump loses its ability to maintain a consistent seal. This results in a loss of prime, pressure surging during operation, or fluid leaking down the pump rod. The sprayer may run but fail to spray properly. Replacing the worn packing with this kit restores the integrity of the pumping section, allowing the sprayer to build and hold pressure consistently. This is a standard maintenance procedure that helps prevent more costly damage to the cylinder or connecting rod.
| Piston seal | Creates a seal between the moving piston and the stationary cylinder wall |
|---|---|
| Prime retention | Helps the pump draw fluid up from the supply and push it out under pressure |
| Pressure stability | Minimizes pressure fluctuations by preventing fluid blow-by past the piston |
| Loss of prime | Sprayer runs but will not draw paint from the bucket |
|---|---|
| Pressure surging | Inconsistent spray pattern with fluctuating pressure during operation |
| Fluid leakage | Paint leaking down the outside of the pump or into the drive housing |
| age or hardening | Visual wear, cracks, or stiffness in the old packing material |
Graco part 0532915 is compatible with the following Graco Impact series airless paint sprayers. Always confirm fitment using the correct parts diagram for your exact model and revision.
| Graco Model | Component |
|---|---|
| Graco Impact 410 | Lower packing kit |
| Graco Impact 400 | Lower packing kit |
| Graco Impact 340 | Lower packing kit |
Pump performance issues are often tied to more than one component. When servicing the lower packing, these parts are commonly inspected at the same time.
A scored or worn piston will damage a new packing quickly. Inspect for smoothness and replace if worn.
If fluid is leaking into the drive housing, the upper seals may also need replacement.
A dirty or worn intake valve can mimic prime loss and should be cleaned during packing replacement.
