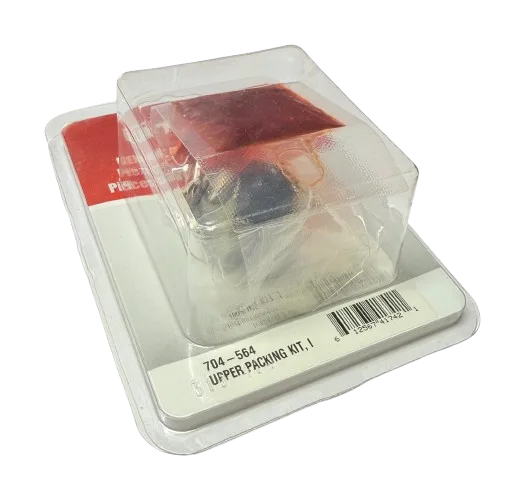

Titan 704-564 Upper Packing Kit

Titan 704-564 Upper Packing Kit

Sourced From:
Titan Tools Inc.



Part 704-564 is an upper packing kit designed for the fluid pump section of compatible Airless Sprayer and RentSpray units. It contains all necessary seals and components to rebuild the upper seal area, preventing fluid leakage and restoring pump efficiency.

Part Number 704-564
Part Description Upper Packing Kit
Brand Titan
Fits Airless Sprayer 640 IX, 540IX, 440IX; RentSpray 650, 600
Condition New

Retail Price: $43.8
You save: $3.33 (7.60%)
Our Price: $40.47



Upper Packing Kit for Airless Sprayer & RentSpray Models

The 704-564 Upper Packing Kit provides all necessary seals to rebuild the upper section of the fluid pump on compatible Airless Sprayer and RentSpray units. The kit includes the main packing, backup ring, O‑rings, and retaining hardware needed to restore a tight seal between the piston rod and pump cylinder.

A worn upper packing can cause paint to leak from the pump’s upper area, loss of prime, erratic pressure, or excessive fluid bypass. Rebuilding with this genuine kit restores pump efficiency, reduces downtime, and prevents damage to the piston rod and cylinder.

Service Guidance: Before installation, inspect the piston rod for scoring or wear. Clean the packing cavity thoroughly and lubricate new components with compatible pump oil. Tighten retaining hardware to specification.

What it does and when to replace it

What the upper packing does
Seals piston rod Prevents paint from leaking upward during the pump stroke
Maintains pressure Ensures hydraulic pressure is directed to the outlet, not lost through the pump
Protects pump Keeps abrasive paint from entering the upper pump housing and bearings
When replacement is recommended
External leakage Paint drips or sprays from the top of the pump
Loss of prime Pump won't prime or loses prime quickly
Erratic pressure Surging or inconsistent spray pattern
Visible damage Packing is cracked, hardened, or deformed

Compatibility

Part 704-564 is compatible with the following models. Always verify fitment using the correct parts diagram for your specific sprayer.

Model Component
Airless Sprayer 640 IX Upper Packing Kit
Airless Sprayer 540IX Upper Packing Kit
Airless Sprayer 440IX Upper Packing Kit
RentSpray 650 Upper Packing Kit
RentSpray 600 Upper Packing Kit

Related parts commonly serviced together

When rebuilding the upper seal, inspect or replace these associated components.

Piston rod

Inspect for scoring, nicks, or wear; replace if damaged.

Lower packing / seal kit

Consider rebuilding the lower seal at the same time to ensure complete pump reliability.

Retaining hardware

Replace any damaged screws or washers that secure the packing retainer.

Frequently Asked Questions

The kit contains the upper packing (U‑cup), a backup ring, two O‑rings (large and small), and a retaining washer. All components are required for a complete upper seal rebuild.

Common signs: paint leaking from the top of the pump, difficulty priming, pressure loss, or erratic spray pattern. The pump may also cycle continuously without building pressure.

It is designed for Airless Sprayer models 640 IX, 540IX, 440IX and RentSpray 650, 600. Always confirm with your parts diagram.

Basic hand tools (wrenches, screwdrivers) are usually sufficient. A packing installation tool can help seat the U‑cup without damage. Lubricate all seals with pump oil before assembly.
