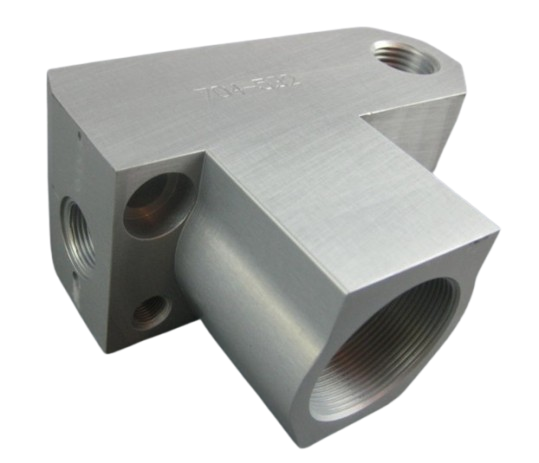

Part number 704-532 is a manifold pump block designed to distribute fluid between the pump and the sprayer's hydraulic or drive system on compatible Airless Sprayer 440 IX and 540 IX models. This precision‑machined component houses fluid passages, check valves, and mounting points, ensuring proper flow direction and pressure regulation. Replacing a cracked, worn, or leaking manifold block restores system integrity, prevents fluid loss, and ensures reliable pump performance.
| Part Number | 704-532 |
|---|---|
| Part Description | Manifold Pump Block |
| Brand | Airless Sprayer |
| Fits | Airless Sprayer 440 IX, 540 IX |
| Condition | New |
The 704-532 Manifold Pump Block is a critical hydraulic component that routes fluid between the pump and the drive system on Airless Sprayer 440 IX and 540 IX models. It contains precision‑drilled passages and integrated check valves that control fluid direction, ensuring the pump receives consistent pressure and flow for optimal spraying performance.
Over time, manifold blocks can develop cracks, wear at sealing surfaces, or become clogged with debris. A damaged manifold can cause fluid leaks, pressure drops, erratic pump operation, and contamination of the hydraulic system. Replacing the manifold pump block restores proper fluid routing, eliminates leaks, and ensures reliable, efficient operation of the sprayer.
| Fluid distribution | Routes hydraulic fluid between pump and drive system |
|---|---|
| Pressure regulation | Houses check valves to maintain proper flow direction |
| Component mounting | Provides mounting points for pump and associated hardware |
| Fluid leaks | Visible leaks from manifold body or seals |
|---|---|
| Cracks / damage | Visible cracks in the manifold block |
| Pressure loss | System cannot maintain rated pressure |
| Contaminated fluid | Debris in fluid indicating internal wear |
Part number 704-532 is compatible with the following Airless Sprayer models. Always confirm fitment using the correct parts diagram for your exact model and serial number.
| Model | Component |
|---|---|
| Airless Sprayer 440 IX | Manifold Pump Block |
| Airless Sprayer 540 IX | Manifold Pump Block |
Manifold block issues may involve associated components. When servicing the manifold pump block, these parts are commonly inspected or replaced at the same time.
Valves housed in the manifold may be worn; inspect and replace as needed.
Replace all seals when installing a new manifold to ensure leak‑free operation.
Bolts and fittings may be corroded; replace if necessary.
