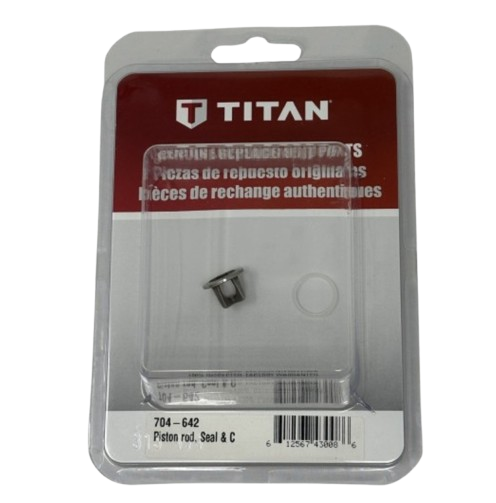

Part number 704-642 is a genuine piston rod seal and cage assembly used in Airless 440IX/540IX/640IX, Advantage, Impact, Impact X, and RentSpray airless sprayers. This combined assembly includes the piston rod seal and its retaining cage, which work together to prevent fluid leakage along the piston rod while maintaining proper alignment. The seal contains high-pressure fluid within the pump, while the cage provides secure mounting and prevents seal extrusion. A worn or damaged seal can cause external leaks, pressure loss, and contamination of the drive system. This genuine replacement restores proper sealing and reliable pump operation.
| Part Number | 704-642 |
|---|---|
| Part Description | Piston Rod Seal & Cage |
| Brand |
|
| Fits |
|
| Condition | New |
The 704-642 Piston Rod Seal & Cage is a genuine OEM sealing assembly designed for a wide range of airless sprayers. This critical component consists of two integrated parts: the piston rod seal, which provides the primary fluid seal around the reciprocating piston rod, and the retaining cage, which holds the seal in position and prevents it from extruding under high pressure.
In piston pump designs, the piston rod seal is one of the most important wear components. It must withstand high pressures, constant reciprocating motion, and exposure to a variety of paints and solvents while maintaining a leak-free seal. The cage ensures the seal remains properly positioned and compressed, preventing fluid from bypassing the seal and entering the drive housing.
Over time, the seal can wear, harden, or develop cracks, leading to fluid leakage along the piston rod, loss of pressure, and contamination of the drive system with paint. The cage may also become corroded or damaged, compromising seal retention. Replacing the complete seal and cage assembly with this genuine part restores proper sealing, prevents fluid leaks, and protects the drive components from damage.
| Fluid sealing | Prevents paint from leaking past the piston rod into the drive housing |
|---|---|
| Pressure retention | Maintains system pressure by containing fluid within the pump |
| Seal retention | Cage holds seal in position and prevents extrusion under pressure |
| Contamination barrier | Keeps debris from entering the pump through the rod opening |
| External leakage | Paint visible around piston rod or dripping from pump area |
|---|---|
| Pressure loss | Inability to build or maintain normal operating pressure |
| Visible wear / damage | Seal is cracked, hardened, or lip is worn; cage corroded |
| During pump rebuild | Always replace seal and cage when rebuilding pump |
Part 704-642 is compatible with the following sprayer models. Always verify your machine's parts diagram to confirm correct fitment.
| Brand / Model | Component |
|---|---|
| Airless 440IX | Piston Rod Seal & Cage |
| Airless 540IX | Piston Rod Seal & Cage |
| Airless 640IX | Piston Rod Seal & Cage |
| Advantage 400 | Piston Rod Seal & Cage |
| Advantage 500 | Piston Rod Seal & Cage |
| Impact 410 | Piston Rod Seal & Cage |
| Impact 440 | Piston Rod Seal & Cage |
| Impact 640 I | Piston Rod Seal & Cage |
| Impact 640 IA | Piston Rod Seal & Cage |
| Impact X 410 | Piston Rod Seal & Cage |
| Impact X 440 | Piston Rod Seal & Cage |
| Impact X 540I | Piston Rod Seal & Cage |
| RentSpray 500 | Piston Rod Seal & Cage |
| RentSpray 600 | Piston Rod Seal & Cage |
When replacing the piston rod seal and cage, it's good practice to inspect these related components, as they are often serviced during the same repair.
Inspect the piston rod for scoring, pitting, or wear that could damage the new seal. Replace if damaged.
Other seals in the pump may also be worn. Consider a full pump rebuild kit if available.
If fluid has leaked past the seal, inspect and replace drive housing gaskets as needed.
