Titan 640ix Replacement Parts and Assembly Diagrams
Find genuine Titan OEM components for your Titan 640ix Airless Sprayer. Explore dedicated assembly diagrams to identify replacement parts, check ordering references and prepare for maintenance or repairs with the correct components for your installed equipment.
Find Your 640ix Parts with Clear Ordering References
Begin with the assembly containing the component you need. Compare its diagram with your machine, then match the numbered callout to the listed Titan part number. Keep your model, serial number and installed configuration available when checking fitment.
1. Check the Configuration
Identify the installed skid base, Low Rider cart or High Rider cart before selecting support components.
2. Choose an Assembly
Open the relevant category below to locate the component in its assembly diagram.
3. Match the Part Number
Use the diagram and parts list together. The diagram position identifies a location; the part number identifies the orderable item.
4. Review the Contents
Confirm compatibility notes, included components and required quantities before purchasing.
Shop Titan 640ix Parts by Assembly
Main Assembly
Start with the main assembly diagram when identifying components in the overall sprayer arrangement. Match each selection to the applicable parts reference.
Browse Main Assembly PartsSkid Assembly
Use the dedicated skid category for components associated with the skid-mounted configuration. Verify the installed base and required hardware quantities.
Browse Skid Assembly PartsSiphon Assembly
Explore the siphon assembly referenced as P/N 704-300. Listed components include the siphon hose, return hose assembly, inlet screen, elbow and retaining hardware.
Browse Siphon Assembly PartsFluid Section Assembly
Find listed pump service components, including the piston assembly, repacking kit and upper piston guide. Confirm the installed fluid section before selecting replacements.
Browse Fluid Section PartsDrive Assembly
Consult the drive assembly diagram to identify the required component and its ordering number. Check the relevant service documentation when planning internal repairs.
Browse Drive Assembly PartsHigh Rider Cart Assembly

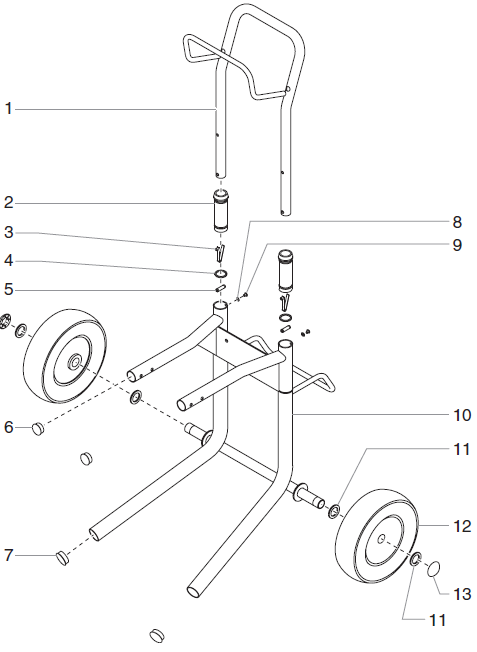

Browse the High Rider cart assembly referenced as P/N 704-529. Compare your installed cart with the diagram before choosing replacement components.
Browse High Rider Cart PartsLow Rider Cart Assembly
Find the Low Rider cart category referenced as P/N 704-583. Match configuration-specific parts and mounting references to your existing equipment.
Browse Low Rider Cart PartsAccessories
Review the accessories linked from the 640ix catalog. Check individual product specifications for suitable connections and operating requirements.
Browse 640ix AccessoriesCheck Fitment Before Completing Your Order
| Ordering Detail | What to Confirm |
|---|---|
| Model and serial number | Select the documentation applicable to your equipment version. |
| Installed assembly | Compare the component arrangement with the relevant diagram. |
| Skid or cart configuration | Match support components to the installed skid, High Rider or Low Rider arrangement. |
| Titan part number | Check the ordering reference and any documented replacement-number notes. |
| Package contents | Review included items, required quantities and separately sold components. |
An exploded diagram illustrates assembly relationships. It does not mean every pictured component is included with a single part, kit or assembly purchase.
Featured Pump Service Part: Titan 704-586B Repacking Kit
Titan 704-586B Repacking Kit appears in the 640ix fluid section catalog. If inspection determines that repacking is required, verify the installed pump, applicable service reference and kit contents before ordering.
View Titan 704-586B Repacking KitPrepare for Maintenance with the Correct Parts
Diagnose operating problems using the applicable Titan manual before purchasing replacement components. Priming difficulties, pressure changes or unusual noise can have several causes. Use inspection findings to establish the repair needed, then use the diagram to identify the correct parts.
Complete the manufacturer’s prescribed pressure-relief procedure and disconnect electrical power before service. Follow the specified disassembly, cleaning and reassembly instructions. Use a qualified technician for electrical or internal repairs when required.
Confirm cross-model fitment using part numbers and applicable documentation. Similar model names, including 640i and 640ix, do not establish component interchangeability.
Find the Right Parts for Your Titan 640ix
Choose an assembly above to begin your search. For identification assistance, have your model, serial number, installed configuration and existing part number ready.
Call 713-931-0006 for Parts AssistanceFrequently Asked Questions
How do I identify the correct Titan 640ix replacement part?
Which parts categories are available for the 640ix?
What references identify the 640ix cart assemblies?
Is Titan 704-586B listed for the 640ix fluid section?
Does an assembly purchase include everything shown in the diagram?
