Shop Titan 640ix Main Assembly Replacement Parts
Find replacement components for the Titan 640ix Main Assembly, including digital controls, power cords, fluid section components, intake items, and mounting hardware. Compare your installed arrangement with the numbered drawing, then confirm the individual part number and product contents before ordering.
Find the Component Required for Your Repair
The main assembly brings together components from several service areas. Identify the affected item and its installation location before selecting a replacement.
Digital Controls
Locate the Xact Digital Control Assembly, its cover, and the control knob. Confirm which component your service assessment identifies before purchasing.
View Control Component ReferencesPower Connections

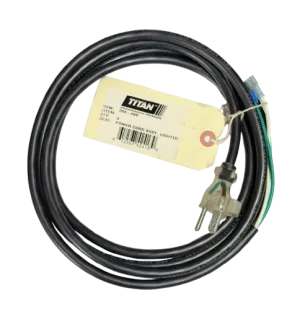

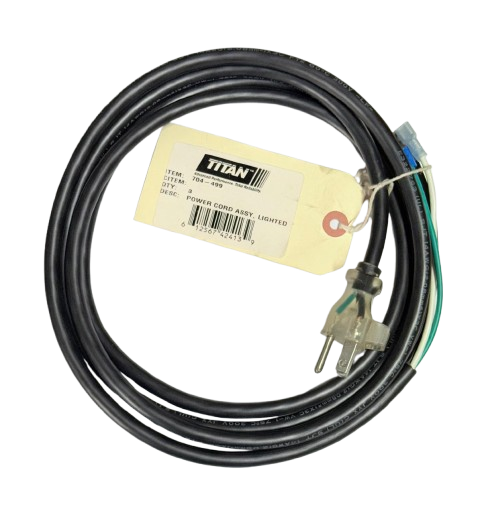

Browse the listed power cords, strain relief components, ground screw, and fuse. Where multiple options share a diagram position, confirm the version fitted to your equipment.
Check Electrical Part NumbersFluid Section and Intake Items
Find the fluid section assembly, siphon/bypass hose assembly, down tube, inlet screen, and associated parts. Match these items to your installed intake arrangement.
Find Pump and Intake ReferencesSelected Titan 640ix Main Assembly Part Numbers
This reference highlights selected components. Use the complete product list and numbered drawing to locate additional screws, brackets, washers, and hose attachment hardware.
Check the supplied contents: A control cover, cord, hose, or fastener does not include the complete main assembly. Review each product listing for contents, quantity, and compatibility.
Match Your 640ix Configuration Before Ordering

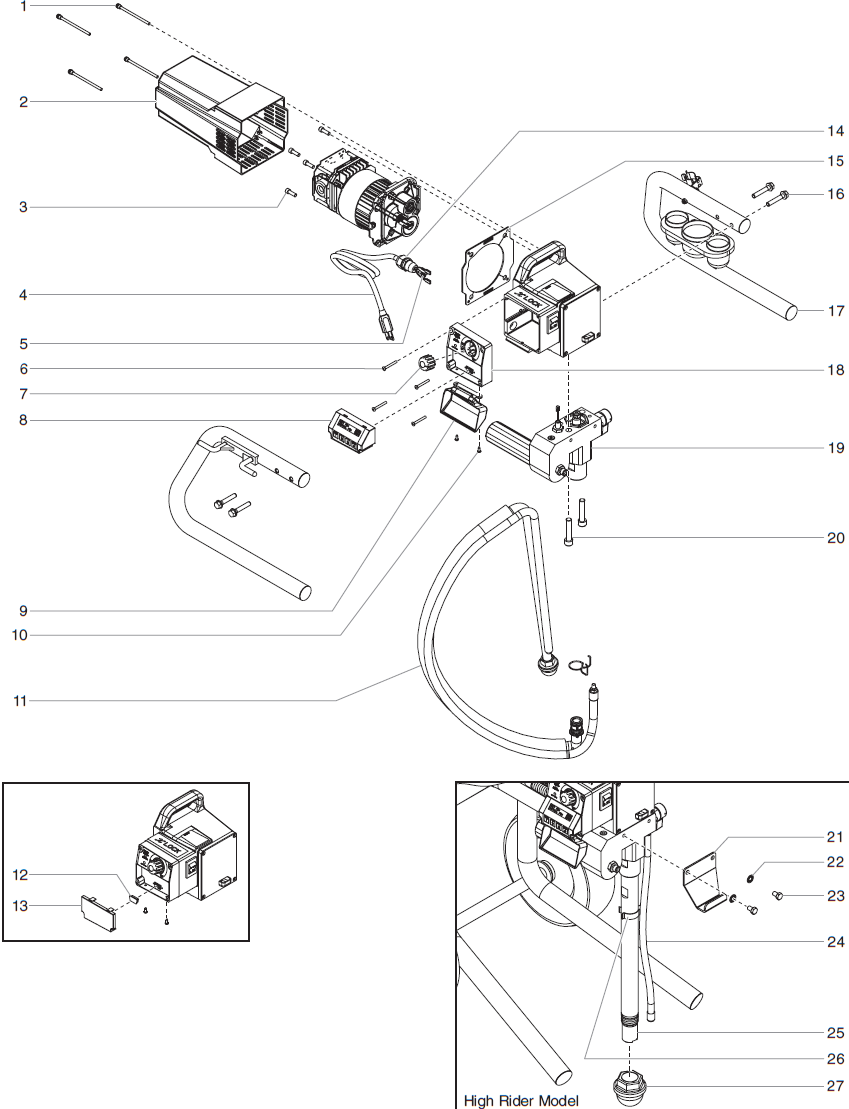

Record the model and serial number from your equipment and compare the installed arrangement with the main assembly drawing. Preserve every digit and letter suffix when checking an individual ordering number.
Where the category lists multiple products at the same diagram position, check which option applies to your sprayer. A shared position does not establish that the listed products are interchangeable.
If previous repairs have changed the controls, wiring, pump, or intake arrangement, provide photographs and existing component numbers when requesting assistance. Confirm product contents and required quantities before purchasing.
Plan the Repair Around the Inspection Findings
Starting problems, irregular operation, or material-flow issues can have several causes. Establish the source before choosing a replacement and inspect adjoining components when damage is found.
Have electrical faults assessed before ordering a control assembly, power cord, or fuse.
Inspect the installed pump and intake arrangement to determine whether the repair requires an assembly or a separate component.
Check mating threads and attachment points alongside damaged fasteners. Follow the applicable reassembly instructions.
Titan 640ix Main Assembly FAQ
How do I identify the correct main assembly component?
Match your installed arrangement to the numbered drawing, locate the affected item, and confirm its individual part number and required quantity.
Does the digital control cover include the control assembly?
The cover and control assembly are separate listings. Review the selected product's contents before placing your order.
Why are multiple power cords listed at one diagram position?
The category shows more than one cord option. Confirm the applicable equipment configuration and product specifications before choosing a replacement.
Does a numbered diagram position indicate package quantity?
No. It identifies the component location. Check the individual product listing for supplied contents and order the quantity your repair requires.
What information helps confirm fitment?
Provide the sprayer model, serial number, installed configuration, existing component number, and a clear photograph or diagram position.
Need Help Finding Your Titan 640ix Main Assembly Part?
Have your sprayer details and component information ready. Contact All Titan Parts for assistance selecting the replacement required for your repair.
Call 713-931-0006 for Parts Assistance
