Shop Titan 640ix High Rider Cart Parts for 704-529
Find replacement components for the Titan 640ix High Rider Cart Assembly (P/N 704-529). Browse the sleeve handle, snap button, roll pin, washers, plugs, screw, and hub cap. Match each component to its numbered drawing position and confirm the individual ordering number before purchasing.
Find the Cart Component You Need
Identify the missing or damaged item first. Compare its installation location with the High Rider cart drawing and inspect adjoining connections before selecting a replacement.
Handle Service Components
Locate sleeve handle 590-504, snap button 9841504, and roll pin 590-508. Confirm the required component and its connection arrangement.
View Handle Component ReferencesHub Cap
Find hub cap 9890104 at position 13. Check the wheel attachment arrangement before ordering the replacement.
Locate Hub Cap 9890104Plugs and Fastening Hardware
Match the listed plugs, flat washer, lock washer, and screw to their designated locations. Check mating connections and required quantities.
Check Cart Hardware NumbersTitan 640ix High Rider Cart Parts Reference

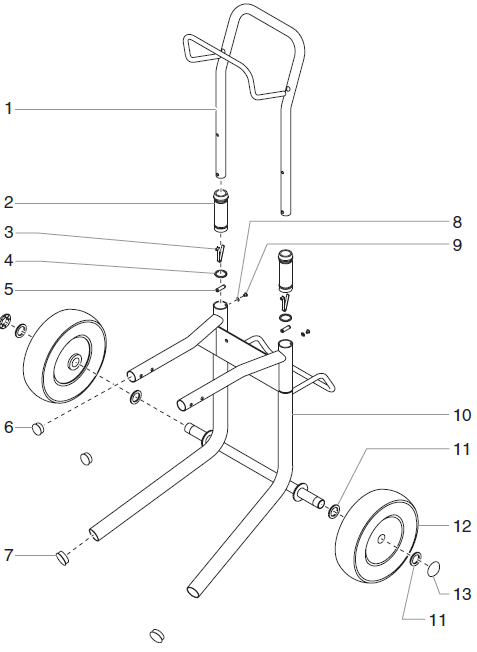

Use these ordering numbers alongside the drawing for reference 704-529. Diagram positions identify component locations rather than quantities supplied.
Check the supplied contents: An individual sleeve handle, plug, pin, washer, screw, or hub cap does not include the complete cart. Confirm larger assembly requirements separately.
Match Your High Rider Cart Before Ordering
Record the sprayer model and serial number and compare the installed cart with the drawing for assembly reference 704-529. Select each service component using its separate ordering number.
Check the handle connections, wheel attachment, and receiving openings carefully. Similar-looking parts from another support configuration should not be assumed to fit.
Review product contents, required quantities, and current availability before purchasing. If previous repairs have changed the cart arrangement, provide photographs and existing component numbers when requesting assistance.
Inspect the Cart Before Selecting Replacements
Identify the cause of looseness or unwanted movement before ordering parts. Inspect adjoining components when a connection or attachment shows damage.
Assess the handle components and receiving connections together. A replacement button alone may not resolve damage elsewhere.
Check the attachment arrangement before selecting a hub cap. Establish whether additional components require service.
Inspect mating threads, washer locations, and receiving openings. Follow the applicable reassembly instructions.
Explore Related Titan 640ix Parts
Open the relevant service section when your repair extends beyond the cart.
Titan 640ix High Rider Cart Assembly FAQ
What does reference 704-529 identify?
It identifies the High Rider cart assembly covered by this category. Select individual service components using their separate part numbers.
Can I replace one component instead of the complete cart?
Base the repair scope on the inspection findings and condition of the surrounding components. Review the selected product's contents before ordering.
Does replacing a hub cap correct all wheel movement problems?
No. Inspect the complete wheel attachment to identify the cause. A hub cap replacement does not establish that other wear or damage has been resolved.
Are High Rider and Low Rider components interchangeable?
Confirm each component by part number and assembly position. Similar appearance does not establish compatibility between cart configurations.
What information helps confirm the correct replacement?
Provide the model, serial number, High Rider cart configuration, existing component number, and a clear photograph or diagram position.
Need Help Matching Your Titan 640ix Cart Part?
Have your sprayer details and component information ready. Contact All Titan Parts for assistance selecting the replacement required for your High Rider cart.
Call 713-931-0006 for Parts Assistance
