Titan 660xc Parts for Pump, Drive and Frame Repairs
Find genuine Titan OEM replacement components for your Titan 660xc Airless Sprayer. Browse assembly diagrams to locate the parts needed for maintenance, identify accurate ordering numbers and check compatibility with your installed equipment.
Turn Your Repair List into an Accurate Parts Order
Begin with the assembly containing the component you need. Compare its diagram with your sprayer, locate the numbered reference and match it to the listed Titan part number. Keep your model, serial number and installed configuration available when reviewing fitment.
1. Identify Your Configuration
Check the installed motor, fluid section and whether your equipment uses a Low Rider frame, High Rider frame or skid base.
2. Select an Assembly
Open the relevant category below to review its diagram and orderable components.
3. Match the Ordering Number
Use the diagram callout and parts list together. A diagram position identifies a location; a part number identifies the item to order.
4. Confirm the Contents
Review compatibility notes, required quantities and included components before completing your purchase.
Shop Titan 660xc Replacement Parts by Assembly

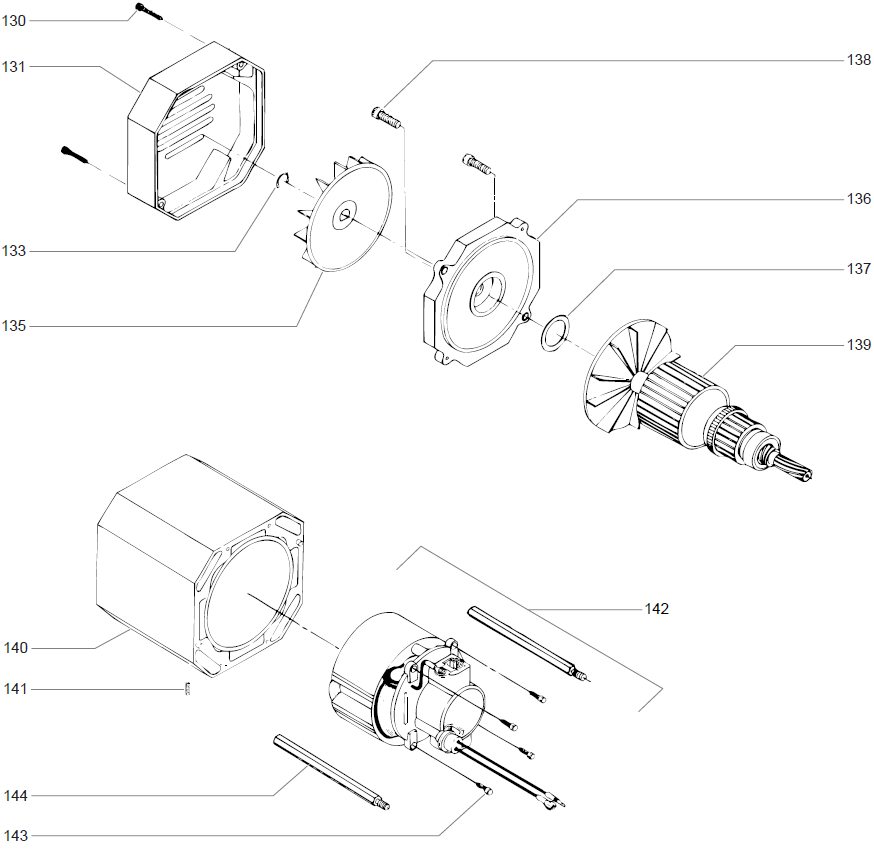

Motor Assembly
The motor assembly catalog lists Titan 700-681 Motor Mount Screw. Check the diagram position and required quantity when replacing mounting hardware.
Browse Motor Assembly PartsGear Box Assembly
Locate listed components such as the pressure control knob, output gear assembly and thrust washers. Match the required component to the applicable ordering reference.
Browse Gear Box PartsFilter Block Assembly
Find listed filtration and bypass components, including manifold filters, springs, O-rings and the filter screen adapter. Check each component’s specifications before ordering.
Browse Filter Block PartsFluid Section Assembly
Use the fluid section diagram when identifying pump components for service. Confirm the installed assembly and individual part references before selecting replacements.
Browse Fluid Section PartsSiphon Assembly
Review the siphon assembly category when locating intake components. Compare the installed arrangement, connections and diagram references with your selection.
Browse Siphon Assembly PartsLow Rider Frame Assembly
Consult the Low Rider frame category for the listed replacement options associated with this configuration. Confirm the installed frame before purchasing.
Browse Low Rider Frame PartsHigh Rider Frame Assembly
Check the High Rider frame listing for applicable components. Use the diagram to verify mounting references and required quantities.
Browse High Rider Frame PartsSkid Assembly
Find the dedicated skid assembly category for skid-mounted equipment. Match each replacement component to the base installed on your sprayer.
Browse Skid Assembly PartsAccessories
Explore the accessories linked from the 660xc catalog. Verify individual product connections and operating requirements before making your selection.
Browse 660xc AccessoriesCheck These Details Before Ordering
| Ordering Detail | What to Verify |
|---|---|
| Model and serial number | Select the parts documentation applicable to your equipment version. |
| Installed assembly | Compare the existing component arrangement with the relevant diagram. |
| Frame configuration | Match Low Rider, High Rider or skid components to the installed equipment. |
| Filter specification | Check the specified filter type and mesh against the applicable operating guidance. |
| Contents and quantity | Review included components and identify separately sold items. |
An exploded diagram shows component relationships. It does not establish that every illustrated item is included with one part, kit or assembly purchase.
Featured Filtration Component: Titan 730-067
Titan 730-067 60 Mesh Manifold Filter is listed in the 660xc filter block catalog. When replacing a filter, confirm the required mesh, installed filter arrangement and applicable operating instructions before ordering.
Find Titan 730-067 in the Filter Block Parts ListPrepare for Repairs with the Correct Documentation
Diagnose operating problems using the applicable Titan manual before purchasing components. Difficulty priming, changes in pressure or unusual noise can have several causes. Use inspection findings to establish the repair needed, then identify the replacement parts through the diagram.
Complete the manufacturer’s prescribed pressure-relief procedure and disconnect electrical power before maintenance. Follow the documented service instructions and use a qualified technician for repairs beyond your training.
Confirm cross-model compatibility through part numbers and applicable documentation. Similar model names or component appearances do not establish interchangeability.
Find the Replacement Parts Your 660xc Needs
Select an assembly above to begin your search. For identification assistance, have your model, serial number, installed configuration and existing part number ready.
Call 713-931-0006 for Parts AssistanceFrequently Asked Questions
How do I find the correct Titan 660xc replacement part?
Identify your model, serial number and installed configuration. Open the relevant assembly diagram, match its callout to the listed Titan part number, and review compatibility notes before ordering.
Which parts categories are available for the 660xc?
The catalog includes motor, gear box, filter block, fluid section, siphon, Low Rider frame, High Rider frame, skid and accessories categories.
Which motor mounting part is listed for the 660xc?
Titan 700-681 Motor Mount Screw is listed in the 660xc motor assembly catalog. Confirm the diagram position and required quantity before purchasing.
Is Titan 730-067 listed in the 660xc filter block catalog?
Yes. Titan 730-067 60 Mesh Manifold Filter appears in the 660xc filter block parts list. Verify the required mesh and installed filter arrangement before ordering.
Does one purchase include everything shown in an assembly diagram?
Check the selected product listing for included components and quantities. Some items illustrated in an assembly diagram are sold separately and may not be included with your purchase.
