Titan 740i Replacement Parts and Repair Diagrams
Locate genuine Titan OEM components for your Titan 740i Airless Sprayer. Browse assembly diagrams to identify replacement parts, compare ordering references and select components suited to your installed equipment and repair requirements.
Find Your Part Before You Place the Order
Start with the assembly containing the component being serviced. Compare its diagram with your sprayer, locate the numbered callout and use the corresponding Titan part number to review the listing. Have your model, serial number and cart configuration ready when checking compatibility.
1. Identify Your Equipment
Record the model and serial number, then confirm the installed motor, pump and cart arrangement.
2. Open the Assembly
Choose the category below that corresponds to the component’s location.
3. Match the Part Number
Use the parts list alongside the diagram. A diagram position identifies a location; the part number identifies the orderable item.
4. Check the Listing
Review fitment notes, replacement references, package contents and required quantities before purchasing.
Shop Titan 740i Parts by Assembly

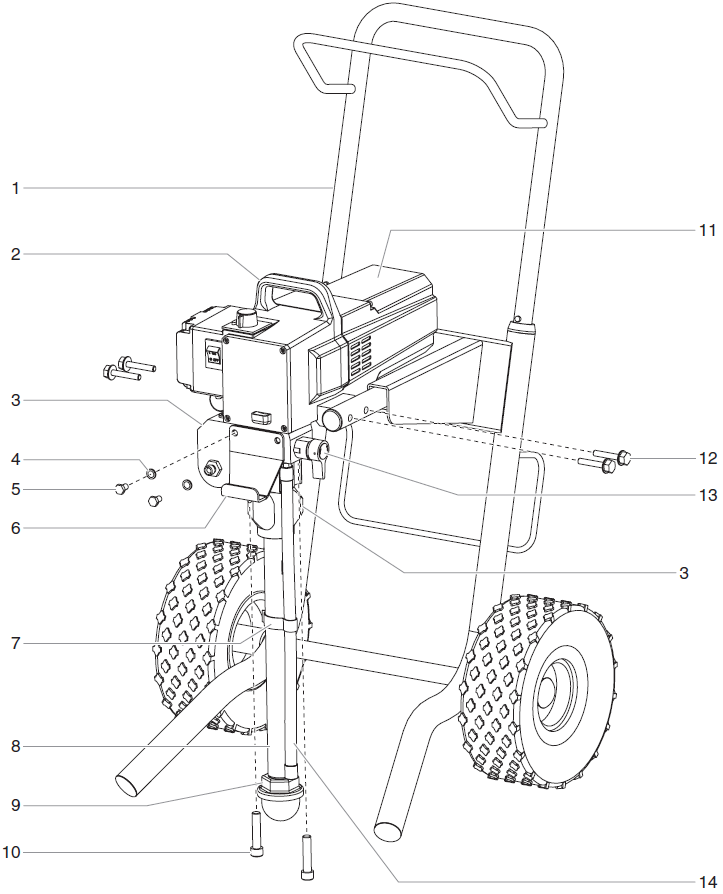

Main Assembly
Find listed components such as the pail bracket, hose tie clamp, inlet screen and mounting hardware. Check configuration notes when selecting cart-specific items.
Browse Main Assembly PartsMotor Assembly

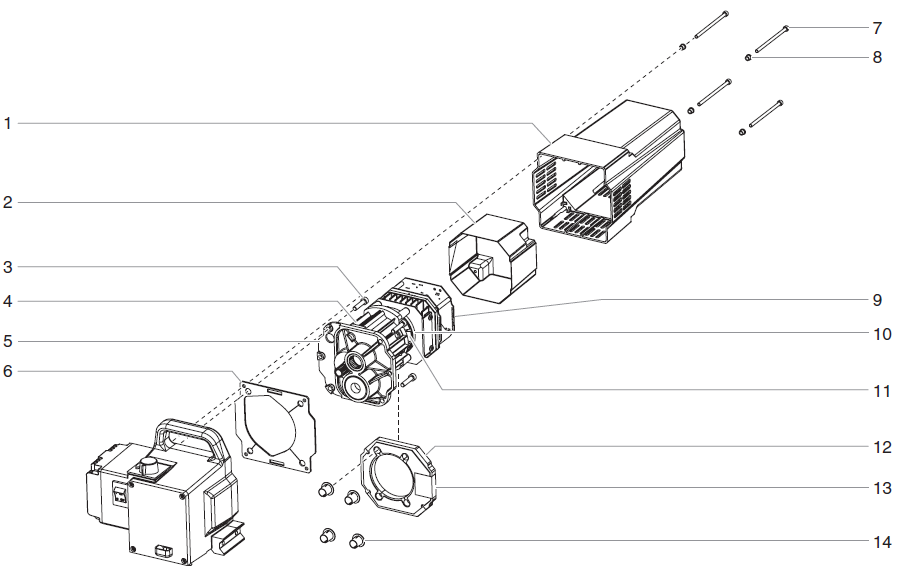

Locate the electronic motor cover, motor mount screw, gasket housing and baffle spacer listed in this category. Compare each component with the installed motor arrangement.
Browse Motor Assembly PartsGear Box Assembly

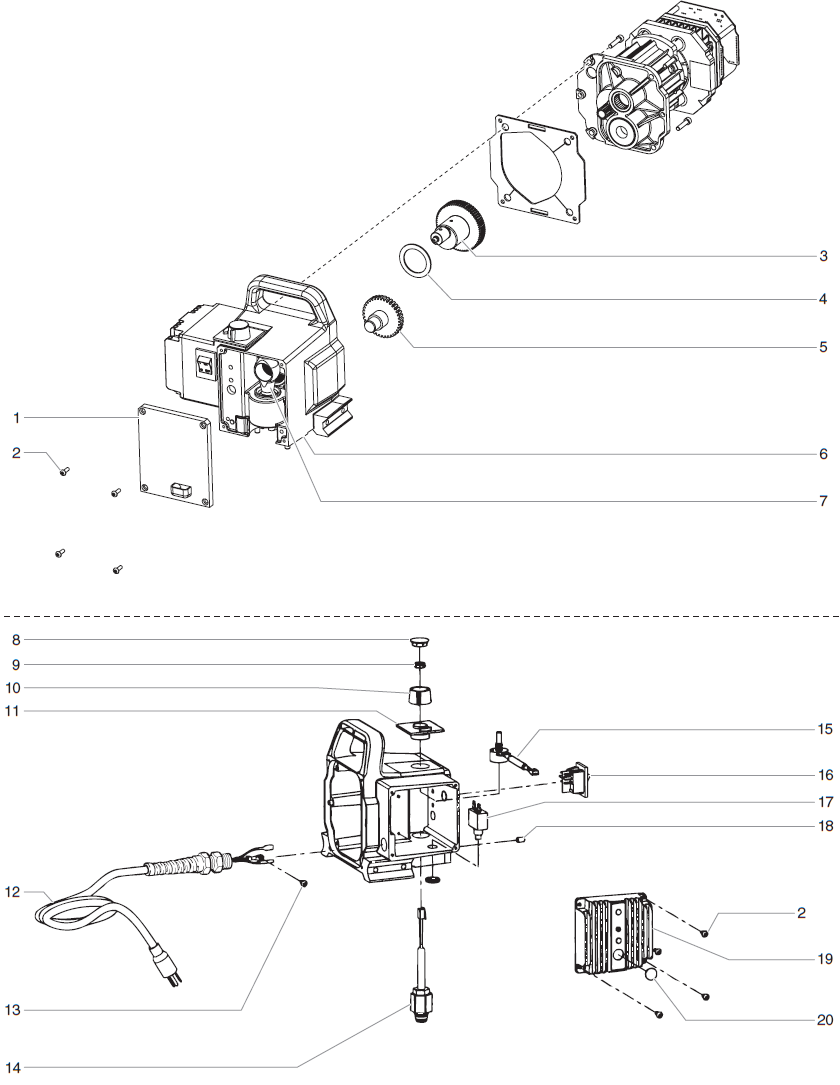

Review listed drive components, including the crankshaft/gear assembly, second-stage gear and thrust washer. Confirm the diagram reference before ordering internal parts.
Browse Gear Box PartsHigh Rider Cart Assembly

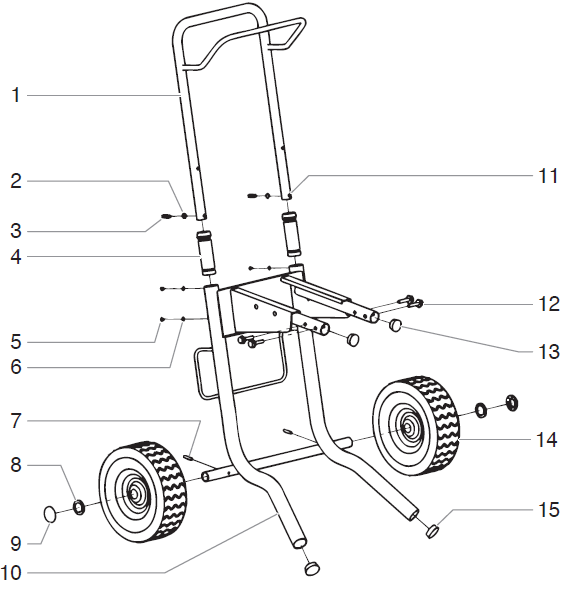

Explore the High Rider cart category referenced as P/N 800-570. Match the installed cart and component positions before selecting replacement hardware.

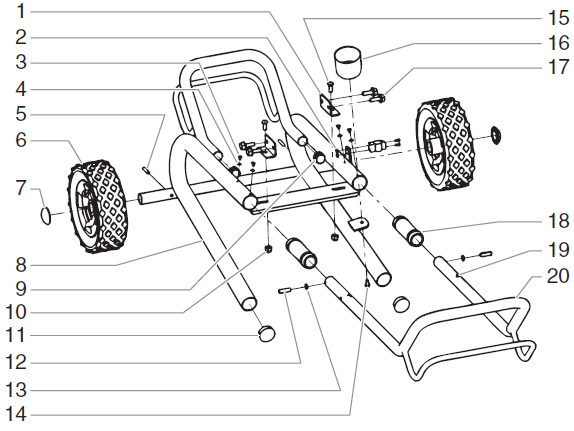

Browse High Rider Cart PartsLow Rider Cart Assembly
Use the Low Rider cart category referenced as P/N 705-200. Verify the cart configuration and required quantities against the applicable diagram.
Browse Low Rider Cart PartsFluid Section Assembly

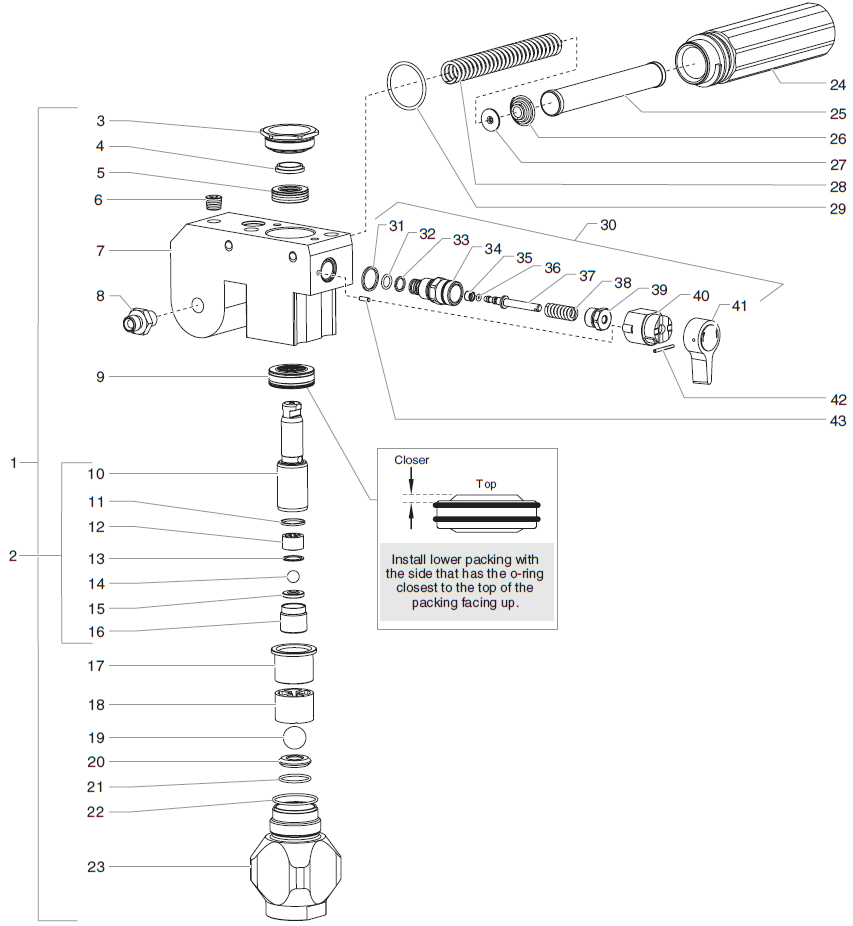

Consult the fluid section diagram when identifying components for pump service. Confirm the installed assembly and individual ordering numbers before purchasing replacements.
Browse Fluid Section PartsLow Rider Suction Set

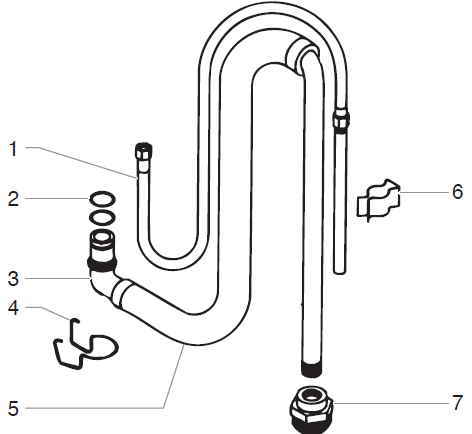

Browse the Low Rider suction set referenced as P/N 704-300. Compare the intake arrangement and connections with your existing equipment.
Browse Low Rider Suction Set PartsAirless Sprayer Accessories
Explore accessories linked from the 740i catalog. Check each listing for suitable connections and operating requirements before adding it to your order.
Browse 740i AccessoriesCheck Fitment and Contents Before Ordering
| Ordering Detail | What to Confirm |
|---|---|
| Model and serial number | Select parts documentation applicable to your equipment version. |
| Installed motor and pump | Compare the existing assemblies with the relevant diagram and service reference. |
| Cart and intake configuration | Match High Rider or Low Rider components to the installed arrangement. |
| Part number and supersession notes | Verify the ordering number and any documented replacement reference. |
| Package contents and quantity | Check included components and identify hardware that must be ordered separately. |
An exploded diagram illustrates component relationships. Review the selected product listing to determine exactly what is included with a part, kit or assembly purchase.
Featured Component: Titan 705-063 Electronic Motor Cover
Titan 705-063 Electronic Motor Cover appears in the 740i motor assembly catalog and is listed as replacing Titan 508558. Compare the installed cover and applicable diagram before selecting this replacement.
View Titan 705-063 Electronic Motor CoverPrepare for Maintenance with the Correct Documentation
Diagnose operating problems using the applicable Titan manual before purchasing replacement components. Priming difficulties, pressure changes and unusual noise can have several causes. Use inspection findings to establish the repair needed, then identify the corresponding parts through the diagram.
Complete the manufacturer’s prescribed pressure-relief procedure and disconnect electrical power before service. Follow the documented inspection, cleaning and reassembly instructions. Use a qualified technician for repairs beyond your training.
Confirm cross-model compatibility using part numbers and applicable documentation. Similar names, including 740i, 740ix and Impact 740, do not establish component interchangeability.
Build Your Titan 740i Parts Order
Select an assembly above to locate your replacement component. For parts identification assistance, have your model, serial number, installed configuration and existing part number ready.
Call 713-931-0006 for Parts AssistanceFrequently Asked Questions
How do I identify the correct Titan 740i replacement part?
Check your model, serial number and installed configuration. Open the relevant assembly diagram, match the callout to its listed Titan part number, and review compatibility notes before ordering.
Which parts categories are available for the 740i?
The catalog includes main, motor, gear box, High Rider cart, Low Rider cart, fluid section, Low Rider suction set and airless sprayer accessories categories.
What references identify the 740i cart assemblies?
The catalog references High Rider cart assembly P/N 800-570 and Low Rider cart assembly P/N 705-200. Match replacement components to the cart installed on your sprayer.
What does Titan 705-063 Electronic Motor Cover replace?
Titan 705-063 is listed as replacing Titan 508558 and appears in the 740i motor assembly catalog. Confirm the installed cover and applicable diagram before purchasing.
Does one purchase include every component shown in an assembly diagram?
Check the selected product listing for included components and quantities. Some items shown in an assembly diagram are sold separately and may not be included with your purchase.
