Titan 740i Fluid Section Assembly Parts
Find Titan 740i Fluid Section Assembly Parts for pump maintenance and repair. Browse components for the piston, packing assemblies, inlet and outlet valves, and filter system. Use the assembly diagram and listed part numbers to identify the items required for your sprayer before placing an order.
Find the Components Your Fluid Section Needs
The fluid section is the pumping portion of your airless sprayer. Its piston, seals, and valves work together to move coating material through the pump. When planning a repair, identifying the affected components helps you select the appropriate replacement parts and assess whether related items also need attention.
Piston and Pump Components
Locate piston rod and pump block components using the diagram references. Compare complete assemblies with individual components so you can choose the option that matches the repair.
Packing and Sealing Parts
Review upper and lower packing assemblies, seals, and repacking options. Check the condition of adjoining surfaces and confirm kit contents before deciding which items to order.
Valve and Filter Components
Identify valve balls, seats, cages, and filtration components for your fluid section. Match the listed component to its diagram position instead of relying on appearance alone.
Selected Titan 740i Fluid Section Part Numbers
The following examples highlight components listed for this assembly. Refer to the complete product listing and diagram for additional items and ordering details.
| Diagram Position | Part Number | Component |
|---|---|---|
| Not numbered | 800-450 | Repacking Kit |
| 2 | 705-120A | Piston Rod Complete Assembly |

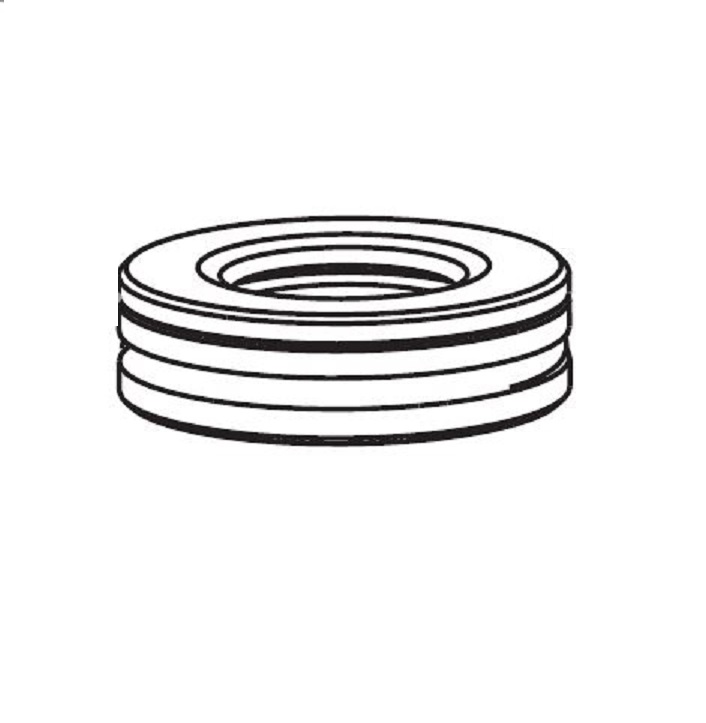

| 5 | 800-454 | Upper Packing Assembly |
| 7 | 800-453 | Pump Block |

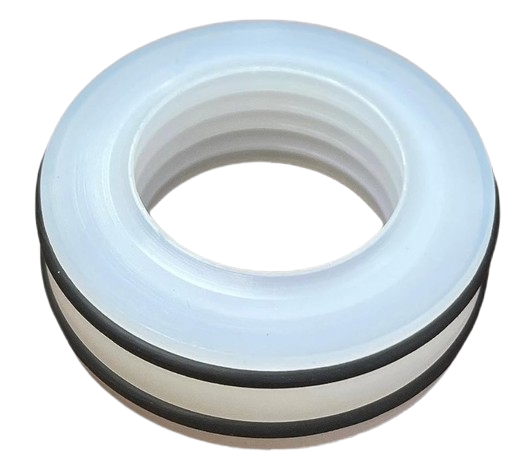

| 9 | 800-456 | Lower Packing Assembly |

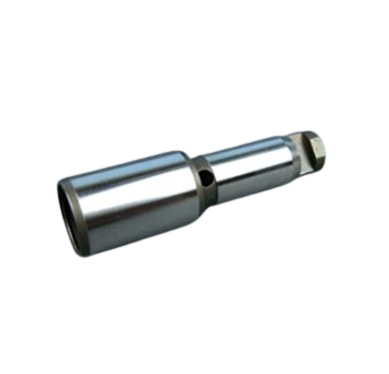

| 10 | 800-452 | Piston Rod |
| 11 | 800-348 | Outlet Valve Seal |
| 14 | 9841502 | Outlet Valve Ball |

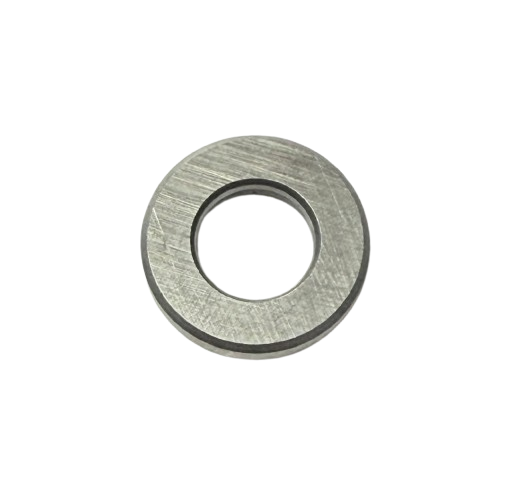

| 15 | 800-243 | Outlet Valve Seat |

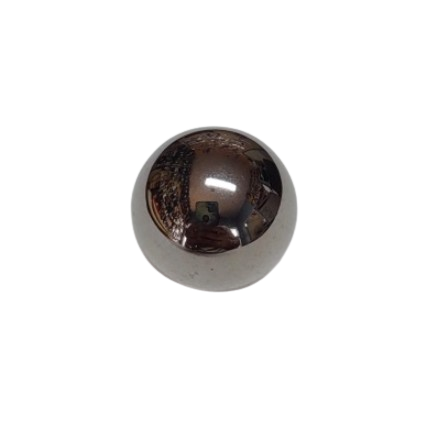

| 19 | 51519 | Inlet Ball, replaces 800-242 |
| 25 | 730-067 | 60 Mesh Manifold Filter |
| 30 | 700-258 | Prime/Spray Valve Assembly |
Ordering tip: Diagram positions identify components in the illustration. Use the actual part number when ordering, including any letter suffix. Confirm whether the selected listing supplies an individual component, a kit, or an assembly.
Check Fitment Before Ordering
Start with your sprayer model and the relevant assembly diagram. Compare the component name, part number, and mounting location with the item you are replacing. Keep your model and serial information available if you need help confirming a selection.
A repacking kit and a complete piston assembly serve different repair needs. Review what each listing includes and inspect surrounding components before purchasing. Replacing packing alone may not address damage to a piston rod or other mating surfaces.
Where the diagram lists alternative components, verify which version applies to your sprayer. A similar description or appearance does not establish interchangeability.
Plan Your Fluid Section Repair
Identify the Repair Need
Establish the cause of the operating issue before selecting parts. Symptoms alone may not identify the component that requires replacement.
Inspect Related Components
Check adjoining seals, valve surfaces, and pump components during inspection. Account for any additional wear when preparing your parts order.
Follow Service Instructions
Use the applicable Titan service instructions for disassembly, installation, and reassembly. Consult the manual for component orientation and service procedures.
Explore Related Titan 740i Assemblies
Use the related assembly pages when your inspection identifies components outside the fluid section.
Frequently Asked Questions
Does this category represent one complete fluid section package?
This page lists fluid section components, kits, and assemblies. Review the individual product listing to confirm exactly what is included in your purchase.
How do I choose between a kit and individual parts?
Base your selection on the components that require replacement. Compare the kit contents with your repair requirements and identify any additional parts needed separately.
What information helps confirm the correct replacement?
Provide the sprayer model, serial information, diagram position, and existing part number when available. Clear photographs can also help clarify which component you are replacing.
Find Your Titan 740i Fluid Section Replacement Parts
Review the assembly diagram, match your part numbers, and select the components needed for your pump repair.
Browse Fluid Section Parts
