Titan 800-456 Lower Packing Assembly
OEM Titan Fluid Section Seal

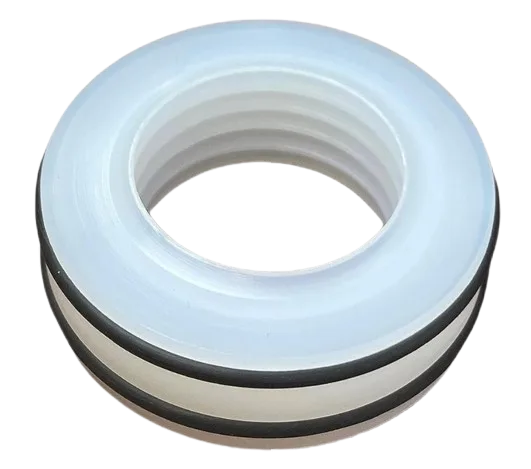

Titan 800-456 Lower Packing Assembly is a genuine OEM lower packing set that seals the piston rod on the intake side of the pump in Titan 740I and 740IX airless sprayers, helping to create vacuum for priming and preventing air from entering the fluid system.
Compatibility Overview
Replace if the pump struggles to prime, loses suction, spits air, or if the packing shows visible wear or damage.
Titan Fluid Section Seal Replacement
Titan 800-456 Lower Packing Assembly for 740I and 740IX Pump Service
Titan 800-456 is a genuine OEM lower packing assembly engineered to seal the piston rod on the intake side of the pump in compatible Titan airless sprayers. The official Titan 740IX owner's manual details the repacking procedure, instructing technicians to pre-form the lower packing using the sizing tool, insert it with the O-ring side facing up, and push it into position using the lower packing insertion tool. This assembly helps create the vacuum needed to draw material from the container and prevents air from being pulled into the fluid system. Over time, the lower packing can wear, harden, or become contaminated with dried paint, leading to poor priming, loss of suction, erratic spray, and reduced pump efficiency. Replacing the lower packing assembly restores the pump's ability to draw and hold prime, ensuring consistent material delivery.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM lower packing assembly for the 740I and 740IX airless sprayers. Seals the piston rod on the intake side of the pump. |
| Function | Seals the piston rod during the suction (inlet) stroke. Helps create vacuum to draw paint from the container. Blocks air from being pulled into the pump cylinder. |
| Compatible Titan Models | Titan 740I Airless Sprayer; Titan 740IX Airless Sprayer. |
| OEM Part Number | 800-456 Lower Packing Assembly. |
| Replacement Indicators | Hard starting or no prime; loss of suction; air sputtering from the gun; paint leaking from weep hole; visible wear, cracking, or hardening of the packing. |
| Related Parts Commonly Serviced Together | Upper packing assembly (800-454), piston rod assembly, repacking kit (800-450), lower packing insertion tool (705-138), packing grease. |
| Common Problems Solved | Restores proper priming and suction, eliminates air ingestion and loss of prime, and ensures consistent material delivery. |
| Why Genuine OEM | Exact dimensions and material composition ensure proper fit and sealing effectiveness. A low quality or incorrect packing may fail to seal, leading to continued priming issues and potential damage to the piston rod. |
When replacing the lower packing, inspect the piston rod for scoring or wear. Clean the packing groove and cylinder bore thoroughly. Lubricate the new packing with compatible grease before installation. Use the lower packing insertion tool (705-138) to avoid damaging the sealing lips. Install the lower packing with the side that has the O-ring closest to the face of the packing facing up. Replace the upper packing at the same time for balanced wear and maximum pump life. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
Lower Packing Assembly for Airless Sprayer 740I / 740IX
The 800-456 Lower Packing Assembly is an OEM replacement seal component for the pump fluid section of Airless Sprayer 740I and 740IX models. This assembly includes the lower packing (often a V‑packing or U‑cup) that seals the piston rod on the intake (inlet) side of the pump. It helps create the vacuum needed to draw paint from the container into the pump cylinder and prevents air from being pulled into the fluid system.
Over time, the lower packing can wear, harden, or become contaminated with dried paint, leading to poor priming, loss of suction, erratic spray, and reduced pump efficiency. Replacing the lower packing assembly with the 800‑456 restores the pump's ability to draw and hold prime, ensuring consistent material delivery.
What it does and when to replace it
| Intake sealing | Seals the piston rod during the suction (inlet) stroke |
|---|---|
| Priming support | Helps create vacuum to draw paint from the container |
| Prevents air ingestion | Blocks air from being pulled into the pump cylinder |
| Hard starting / no prime | Pump runs but will not draw paint or build pressure |
|---|---|
| Loss of suction | Pump loses prime easily or spits air |
| Paint leaking from weep hole | Visible leakage around the piston rod area |
| Visible wear or damage | Cracked, flattened, or hardened packing during inspection |
Compatibility
Part 800-456 is compatible with the following Airless Sprayer models. Always verify with your machine's parts diagram before ordering.
| Brand / Model | Component |
|---|---|
| Airless Sprayer 740I | Lower packing assembly (pump fluid section) |
| Airless Sprayer 740IX | Lower packing assembly |
Related parts commonly serviced together
When replacing the lower packing assembly, these related components are often inspected or replaced at the same time.
Replace both upper and lower packings as a set for balanced sealing.
Inspect for scoring, corrosion, or bending; replace if damaged.
Check for deformation and replace if needed.
