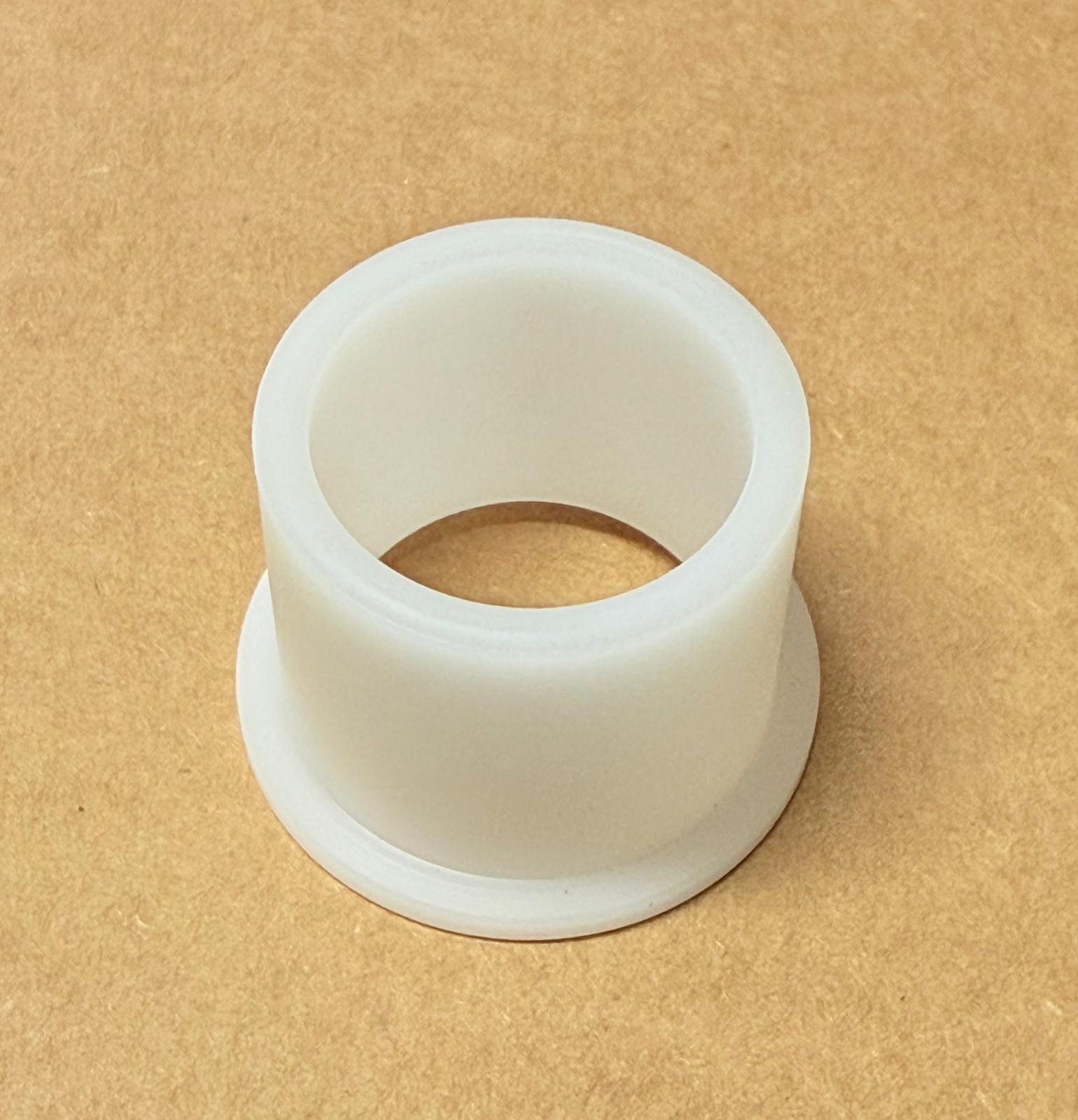

Titan 705-103 Adapter - Aftermarket | Bedford
SprayTech part 705-103 is an adapter manufactured as an aftermarket component by BEDFORD. This adapter is used to connect or adapt sprayer components for proper fit and function. It is compatible with 740 ix Airless Sprayer, 740 IX, and 740 i Airless Sprayer models.
Aftermarket Bedford Component
Titan 705-103 Adapter is an aftermarket component manufactured by Bedford Precision Parts, identified as the lower piston guide adapter bushing for the fluid section of compatible Titan 740 series airless sprayers, ensuring proper alignment of the piston rod.
Compatibility Overview
Replace if the bushing is worn, causing piston misalignment, excessive play, or fluid leaks around the lower guide area.
Aftermarket Component Replacement
Titan 705-103 Adapter for 740 Series Fluid Section Service
Titan 705-103 is an aftermarket adapter manufactured by Bedford Precision Parts for compatible Titan airless sprayers. While the AllTitanParts listing describes it as a general sprayer adapter, Bedford's official quick-reference guide specifically identifies it as the "Adapter Bushing, Piston Guide, lower" for the Titan 740 i Epic [citation:6]. This indicates its primary function is to guide and align the lower end of the piston rod within the pump fluid section, reducing friction and maintaining proper alignment during operation. A worn or damaged guide bushing can allow the piston rod to shift off-center, leading to accelerated wear on packings, increased friction, and potential fluid leaks.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Aftermarket adapter bushing manufactured by Bedford Precision Parts, identified as the lower piston guide for the Titan 740 i Epic fluid section [citation:6]. |
| Function | Guides and aligns the lower end of the piston rod within the pump fluid section. Reduces friction and maintains proper alignment during operation. |
| Compatible Titan Models | 740 i Airless Sprayer; 740 IX Airless Sprayer. |
| Part Number | 705-103 Adapter (Aftermarket from Bedford). |
| Replacement Indicators | Worn bushing causing piston misalignment; excessive play in the piston rod; fluid leaks around the lower guide area; increased friction or binding during pump operation. |
| Related Parts Commonly Serviced Together | Piston rod, lower packing assembly (800-456), upper packing assembly (800-454), repacking kit (800-450). |
| Common Problems Solved | Restores proper piston rod alignment, reduces friction and wear on packings, and eliminates leaks caused by misalignment. |
| Why Bedford Aftermarket | Bedford Precision Parts manufactures aftermarket components as alternatives to original manufacturer parts, offering comparable fit and function. Always verify compatibility with your specific model before purchase. |
Before installing the 705-103 adapter bushing, inspect the piston rod for scoring or wear and the pump bore for damage. Clean all mating surfaces thoroughly. Lubricate the bushing and piston rod with compatible grease before assembly. Follow the fluid section disassembly and reassembly procedure in your sprayer's service manual. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
