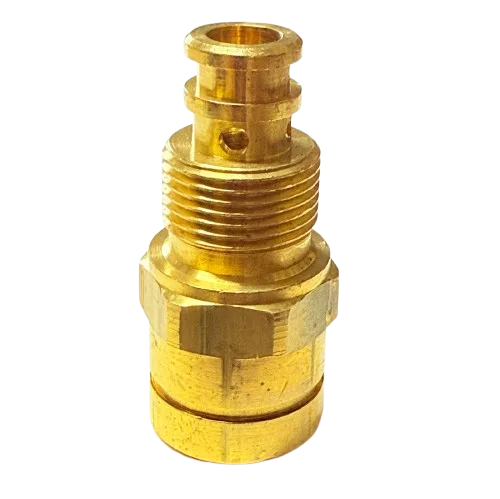

Titan 700-253 Bypass Valve Housing
OEM Titan Fluid Section Component
Titan 700-253 Bypass Valve Housing is a genuine OEM component that houses the prime/spray valve mechanism on compatible Titan airless sprayers, directing fluid flow during operation and recirculation while managing pressure relief.
Compatibility Overview
Replace if the housing is cracked, leaking, has stripped threads, or if pressure fails to relieve when the gun is triggered off.
Titan Fluid Section Component Replacement
Titan 700-253 Bypass Valve Housing for Prime/Spray Valve Service
Titan 700-253 is a genuine OEM bypass valve housing engineered to contain the prime/spray valve mechanism within the fluid section of compatible Titan airless sprayers. Bedford Precision's cross-reference guide identifies it as the "Housing, prime/spray valve" for the Epic 1140 i platform. The official Titan PowrLiner 2800 owner's manual lists it as item #5, "Valve housing," in the PRIME/SPRAY Valve Assembly diagram. A Titan service document for the Elite G40 details the replacement procedure, confirming the housing is removed by loosening with a wrench and unscrewing from the filter block. This housing directs paint flow back to the hopper or container when the spray gun is triggered off, providing pressure relief and circulation control. A compromised housing can cause fluid leaks, erratic pressure, or failure to relieve pressure when the gun is released.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM bypass valve housing for compatible airless sprayers. Houses the prime/spray valve mechanism within the fluid section. |
| Function | Directs fluid flow to the hopper when the gun is off, preventing dead-heading. Maintains fluid movement to prevent settling and pressure spikes. Helps protect pump and seals from excessive pressure buildup. |
| Compatible Titan Models | 1140I, 1140IX; 740I, 740IX; 840I, 840IX; Performer 1140IX; PowrLiner 2800; ProMark II (759-2010); RentSpray 700. |
| OEM Part Number | 700-253 Bypass Valve Housing. |
| Replacement Indicators | Visible cracks or fluid seepage from the housing; inconsistent spray pressure or failure to relieve pressure when gun is off; stripped threads, warped mounting surfaces, or corrosion; recurring bypass failure after servicing internal components. |
| Related Parts Commonly Serviced Together | Bypass valve kit (poppet, spring, seat), gasket/O-ring set, bypass return hose. |
| Common Problems Solved | Restores proper bypass function, eliminates fluid leaks, ensures consistent spray pressure, and maintains operator safety. |
| Why Genuine OEM | Exact dimensions and material specifications ensure proper fit and reliable sealing. A low quality or cracked housing may leak or fail to direct flow correctly, compromising pressure control. |
When replacing the bypass valve housing, inspect the internal valve seat, poppet, and spring (not included) for wear. Use new gaskets or O-rings as needed. Always verify that the bypass port directs flow correctly and that the housing is torqued to factory specifications to avoid cracking. Follow the service procedure in your sprayer's manual, which typically involves removing the groove pin, handle, and cam before loosening and unscrewing the housing. Always relieve system pressure and disconnect power before servicing.
