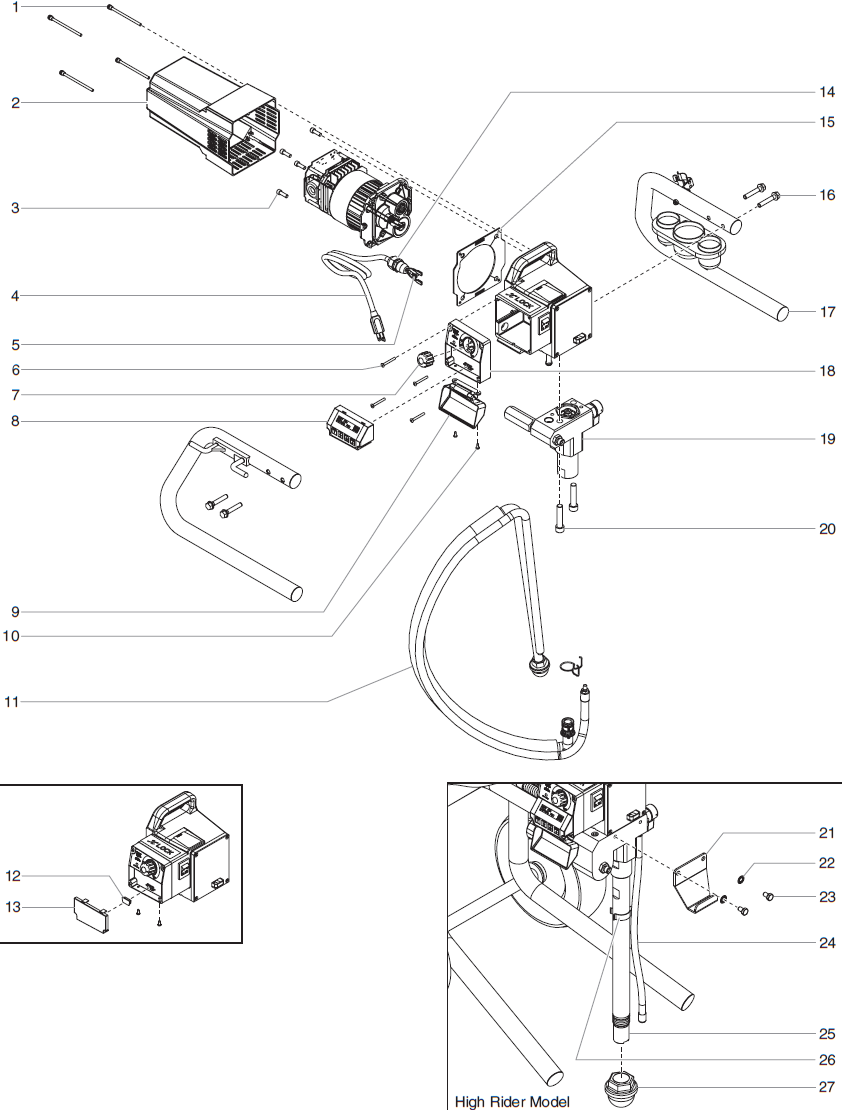

540ix Main Assembly Parts

Titan 700-681 Motor Mount Screw

Item No: 3

Part #: 700-681

Titan 700-681 Motor Mount Screw, Belly Pan Screw or Screw,soc hd cap,1/4-20 ...

$3.80

QTY:

Titan 704-499 Power Cord Assembly

Item No: 4

Part #: 704-499

Titan 704-499 Power Cord Assembly, lighted

$27.40

QTY:

Titan 704-553 Power Cord Assembly

Item No: 4A

Part #: 704-553

Titan 704-553 Power Cord Assembly replaces Titan 552101 Titan 704-553 Power Cord Assembly is a repl...

Retail Price: $56.70

You save: $4.71 (8.31%)

Our Price: $51.99

QTY:

Titan 9800340 Ground Screw

Item No: 5

Part #: 9800340

Titan 9800340 Ground Screw replaces Titan 704-229 – Essential OEM Part for Electrical Safety & P...

$2.50

QTY:

Titan 704-486 Oval Head Screw

Item No: 6

Part #: 704-486

Titan 704-486 Oval Head Screw 8-32 x 1-3/8

$2.10

QTY:

Titan 805-354 Control Knob

Item No: 7

Part #: 805-354

Titan 805-354 Pressure Control Knob replaces Titan 704-488A Fits: 440ix Airless Sprayer, 540i...

$10.40

QTY:

Titan 704-469 Xact Digital Control Assembly

Item No: 8

Part #: 704-469

Titan 704-469 Xact Digital Control AssemblyFits: PowrTex 1200 SF Airless Texture and Paint Spraye...

Retail Price: $351.10

You save: $51.26 (14.60%)

Our Price: $299.84

QTY:

Titan 704-467 Xact Digital Control System Cover

Item No: 9

Part #: 704-467

Titan 704-467 Xact Digital Control System CoverFits: 440ix Airless Sprayer, 540ix Airless Sprayer,...

$16.50

QTY:

Titan 704-300A Syphon By-Pass Hose assembly

Item No: 11

Part #: 704-300A

Titan 704-300A Syphon By-Pass Hose assembly

Retail Price: $237.30

You save: $32.98 (13.90%)

Our Price: $204.32

QTY:

Titan 0508778 Strain Relief

Item No: 14A

Part #: 0508778

Titan 0508778 Strain Relief for Low and High Rider Models part# 0508778* replaces part# 704-369*

$22.20

QTY:

Titan 765-063 Strain relief

Item No: 14

Part #: 765-063

Titan 765-063 Strain Relief is a replacement part for Titan equipment. It is an essential component...

$6.30

QTY:

Titan 704-331 Gasket Housing

Item No: 15

Part #: 704-331

Titan 704-331 Gasket Housing or Gasket *Replaced Part # 508562*

$11.90

QTY:

Titan 761-178 Hexagonal flange Screw

Item No: 16

Part #: 761-178

Screw, hex flange, 5/16-18

$3.10

QTY:

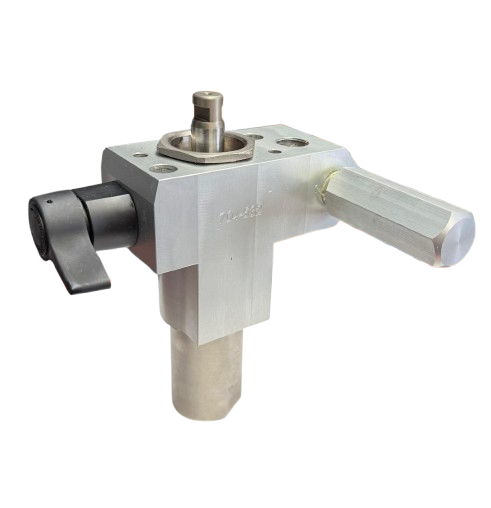

Titan 704-538 Fluid Section Assembly

Item No: 19

Part #: 704-538

Titan 704-538 Fluid Section Assembly for Titan 440IX Skid and 540IX This assembly encompasses criti...

Retail Price: $765.40

You save: $122.46 (16.00%)

Our Price: $642.94

QTY:

Titan 704-117 Fluid Section Screw

Item No: 20

Part #: 704-117

Titan 704-117 Fluid Section Screw is designed for or securing the fluid section assembly in the Tita...

$6.50

QTY:

Titan 704-304 Pail Bracket

Item No: 21

Part #: 704-304

Titan 704-304 Pail Bracket or Pail hook ...

$22.80

QTY:

Titan 763-552 Washer (Cart Only)

Item No: 22

Part #: 763-552

Titan 763-552 Washer (Cart Only) 5/16 lock, stl .32x.61 Fits the following models: Impact 440...

$2.10

QTY:

Titan 710-033 Pail Bracket Bolt

Item No: 23

Part #: 710-033

Titan 710-033 Pail Bracket Bolt or Screw, hex, 5/16-18 x .5 stl Fits the following models: Imp...

$2.00

QTY:

Titan 702-239 Bypass Hose

Item No: 24

Part #: 702-239

Titan 702-239 Return Tube This is designed for sprayers fluid section in like the Titan 440 and ma...

Retail Price: $52.80

You save: $4.38 (8.30%)

Our Price: $48.42

QTY:

Titan 755-225 Down Tube

Item No: 25

Part #: 755-225

Titan 755-225 Down Tube replaces obsolete Part 704-327 is a suction down tube that fits Titan 440ix ...

Retail Price: $79.00

You save: $6.56 (8.30%)

Our Price: $72.44

QTY:

Titan 730-334 Hose Tie Clamp

Item No: 26

Part #: 730-334

Titan 730-334 Hose Tie Clamp serves as a holder of the return tube to the siphon tube in various Tit...

$8.60

QTY:

Titan 710-046 Inlet Screen

Item No: 27

Part #: 710-046

Titan 710-046 Inlet Screen (large 10 mesh) replaces obsolete part Titan 5006536 It has a 1-5/16" th...

Retail Price: $37.80

You save: $4.48 (11.85%)

Our Price: $33.32

QTY:

Titan 800-929 Fuse 15A

Item No: 28

Part #: 800-929

Titan 800-929 Fuse 15A replaces Titan 0551627 Titan 800-929 Fuse is a genuine OEM replacement pa...

$10.20

QTY:

Titan 540ix Main Assembly Parts – OEM Quality You Can Trust

The main assembly is the heart of your Titan 540ix airless sprayer. When components such as the motor mount, power lead or protective covers wear out, pressure control suffers and downtime mounts. AllTitanParts stocks every factory-engineered fastener, housing and electrical part you see in the diagram—ready to ship so you can get back to flawless spraying.

Titan 700-681 Motor Mount Screw – secures the motor chassis to the frame; hardened ¼-20 SOC-HD cap design prevents vibration-back-out.
Titan 704-499 Lighted Power Cord Assembly – OEM 3-wire cord with illuminated plug for easy line-power checks on job sites.
Titan 704-553 Power Cord Assembly – direct replacement for part #800-086; heavy-duty insulation resists heat and abrasion in industrial use.
Titan 805-490 Belly Pan Cover – shields internal electronics and wiring from overspray and debris, extending service life.
Titan 704-300A Syphon By-Pass Hose Assembly – factory-crimped hose set that keeps paint flowing smoothly back to the bucket during priming and pressure relief.
Strain-relief options: Titan 765-063 (standard) or Titan 0508778 (high-/low-rider models) – both protect cord entries from flex fatigue and moisture ingress.

Why buy 540ix parts from AllTitanParts?

• OEM assurance – every item above is genuine Titan, not a look-alike.
• Fast fulfillment – most orders leave our Houston warehouse the same business day.
• Simple diagrams – hover over the schematic to confirm location before you click “Add to Cart.”
• Expert support – need a hand cross-referencing an older serial? Call our parts desk at (713) 931-0006.

Keep your 540ix spraying like new

Don’t let a five-dollar screw or a frayed cord sideline an entire crew. Bookmark this page, and whenever wear and tear shows up, tap the link for the exact Titan 540ix main-assembly part you need—delivered fast, installed in minutes, back on the wall without a hitch.

Pro tip: Pair these main-assembly parts with 540ix fluid-section kits and siphon/return assemblies for a complete mid-season refresh of your sprayer.

Ready to order? Click any link above, add to cart, and enjoy the peace of mind that comes with using 100 % genuine Titan parts.
