Shop Titan 540ix High Rider Cart Assembly Parts
Find genuine Titan replacement components for the 540ix High Rider cart assembly identified as P/N 704-574. Match your cart diagram and component number before ordering hub caps, wheel spacers or plugs for your sprayer.
Choose the Correct Cart Service Component
Inspect the component requiring attention and compare it with the installed part. Order the specified replacement rather than selecting a similar-looking cap, spacer or plug.
Replace a damaged or missing wheel hub cap with the specified OEM component. The current listing identifies 9890104 as the replacement for 704-355.
Shop Hub Cap →Select the specified wheel spacer when servicing the cart wheel arrangement. Confirm its diagram position and installation order before replacing worn or missing hardware.
View Wheel Spacer →Choose the listed plug for its designated cart position. Match the component to the opening shown in the assembly drawing before ordering.
Shop Cart Plug →How to Match Your High Rider Cart Replacement Part
Confirm the sprayer model and cart configuration first. The complete assembly reference and individual service-part numbers serve different ordering purposes.
Record the sprayer model and serial number for fitment assistance.
Confirm the machine uses the High Rider cart shown in this breakdown.
Match the installed part to its drawing position and replacement number.
Confirm the required quantity and individual product contents before purchasing.

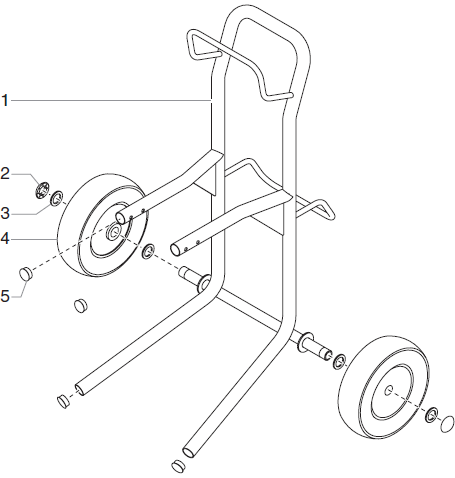

| Diagram Position | Titan Part Number | Component | Verify Before Ordering |
|---|---|---|---|
| 2 | 9890104 | Hub cap | Replaces 704-355 |
| 3 | 0294534 | Wheel spacer | Confirm placement and quantity |
| 5 | 0294635 | Plug | Match the designated cart opening |
Important: P/N 704-574 identifies the cart assembly reference. Do not assume an individual hub cap, spacer or plug includes a complete cart, wheel or axle assembly.
Inspect the Cart Before Returning the Sprayer to Use
Check the cart when the sprayer is difficult to move, a wheel feels loose or a protective component is missing. Identify the damaged area before ordering parts; a new cap or plug does not repair structural damage.
Inspect the wheel arrangement and surrounding hardware for visible damage or looseness.
Look for a cracked, loose or missing cap and inspect the area it covers.
Compare the installed hardware with the drawing. Follow the specified assembly order.
Check for deformation or damaged connections. Have structural problems assessed before operation.
Service safety: Relieve system pressure, disconnect power and support the equipment securely before cart service. Follow the handling and maintenance instructions for your sprayer. Do not operate or transport equipment with an unstable or damaged cart.
For other machine components, visit Titan 540ix Main Assembly Parts.
Titan 540ix High Rider Cart Parts FAQ
Review these component and fitment questions before ordering replacements for your sprayer cart.
Have your sprayer model, serial number, cart configuration and existing part number ready for help selecting the correct replacement.
Call 713-931-0006 for Fitment Help
