Titan 1140ix Airless Sprayer | High Rider Cart P/N 800-600
Shop Titan 1140ix High Rider Cart Replacement Parts
Keep your Titan 1140ix airless paint sprayer mobile, stable and ready for transport with genuine Titan 1140ix High Rider Cart Parts (P/N 800-600). Shop OEM replacement wheels, axle caps, handle sleeves, snap buttons, spacers, washers, retaining pins and mounting hardware. Identify the correct replacement using the illustrated cart parts diagram and order online at AllTitanParts.
High Rider Cart Overview
Buy Genuine Titan 1140ix High Rider Cart Parts Online
The Titan 800-600 High Rider Cart supports the Titan 1140ix Airless Sprayer during movement, positioning and transportation. Its wheel and axle hardware, handle components, spacers and fasteners help keep the cart functional and properly assembled.
Repeated movement across jobsites, loading, unloading and everyday handling can lead to worn wheels, damaged handle grips, missing retaining hardware or loose mounting components. Replacing the correct individual part can help restore cart functionality without replacing unrelated sprayer assemblies.

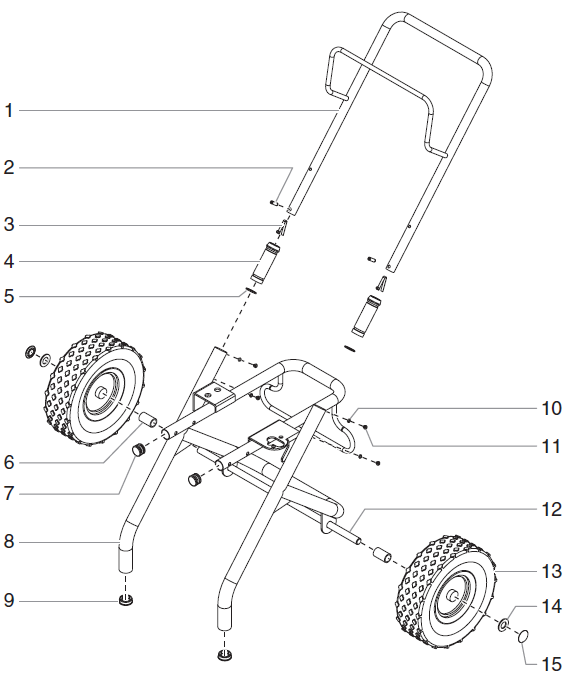

AllTitanParts provides a dedicated Titan 1140ix High Rider Cart parts diagram with 11 listed OEM replacement products. Use the illustrated reference numbers and corresponding Titan part numbers to identify the components required for your repair.
OEM Parts Directory
Titan 800-600 High Rider Cart Parts List
Browse the 11 OEM replacement products currently listed for the Titan 1140ix High Rider Cart Assembly. Match the diagram reference and Titan part number before purchasing.
| Diagram Ref. | Titan Part Number | OEM Description | Component Type |
|---|---|---|---|
| 2 | 590-508 | Roll Pin | Retention Hardware |
| 3 | 9841504 | Snap Button | Handle Retention |
| 4 | 590-504 | Sleeve Handle | Handle Component |
| 5 | 590-506 | Flat Washer | Fastening Hardware |
| 6 | 800-011 | Spacer | Positioning Hardware |
| 7 | 0294635 | Plug | Protective Hardware |
| 9 | 9885571 | Plug | Protective Hardware |
| 10 | 856-002 | Lock Washer | Fastening Hardware |
| 11 | 856-921 | Screw | Mounting Hardware |
| 13 | 670-109 | Wheel | Cart Mobility |
| 15 | 800-019 | Axle Cap | Wheel Retention |
Featured Cart Components
Shop Titan 1140ix Wheels, Handle Parts and Axle Hardware
Titan 670-109 Wheel
The Titan 670-109 Wheel is listed at diagram reference 13. It supports the movement and portability of the High Rider Cart. Inspect for damage, excessive wear or restricted rotation.
OEM Part: 670-109Titan 800-019 Axle Cap
The Titan 800-019 Axle Cap is part of the wheel and axle retention arrangement. Inspect the cap when servicing a loose or damaged wheel assembly.
OEM Part: 800-019Titan 590-504 Sleeve Handle
The Titan 590-504 Sleeve Handle provides a gripping surface for handling the cart. Replace a damaged or deteriorated sleeve with the specified OEM component.
OEM Part: 590-504Titan 9841504 Snap Button
Titan 9841504 is a spring-loaded Snap Button listed at diagram reference 3. It is used in the designated handle retention arrangement.
OEM Part: 9841504Titan 800-011 Spacer
The Titan 800-011 Spacer maintains the specified spacing between designated components. Use the illustrated cart diagram to confirm its location.
OEM Part: 800-011Titan Cart Fasteners and Retainers
Shop OEM roll pins, flat washers, lock washers, screws and plugs used at their designated locations within the cart assembly.
OEM Parts: 590-508, 590-506, 856-002, 856-921Cart Assembly Overview
How the Titan 800-600 High Rider Cart Supports Your Sprayer
Mobility
The wheels allow the sprayer cart to be repositioned during transport and setup.
Handling
The handle sleeve provides a designated gripping surface for moving the cart.
Wheel Retention
The axle cap and related hardware help maintain the specified wheel assembly configuration.
Secure Assembly
Spacers, washers, screws, pins and plugs serve their designated assembly and retention functions.
Troubleshooting Guide
Common Titan 1140ix High Rider Cart Problems
Cart movement and stability problems can result from wear, damage, loose fasteners or missing retaining components. Inspect the affected area and follow the manufacturer's repair instructions.
| Symptom | Parts to Inspect | Recommended Check |
|---|---|---|
| Damaged or worn wheel | 670-109 Wheel | Inspect the wheel for cracking, excessive wear or damage affecting movement. |
| Wheel appears loose | 800-019 Axle Cap, 800-011 Spacer | Inspect wheel retention and spacing hardware for wear or missing components. |
| Damaged handle grip | 590-504 Sleeve Handle | Inspect the handle sleeve and replace it if damaged or excessively worn. |
| Handle does not retain correctly | 9841504 Snap Button, 590-508 Roll Pin | Inspect the designated retaining components and associated handle connections. |
| Loose cart mounting hardware | 856-921 Screw, 856-002 Lock Washer, 590-506 Flat Washer | Confirm correct hardware placement and follow Titan's fastening instructions. |
| Missing protective plug | 0294635 Plug, 9885571 Plug | Match the diagram reference to the correct plug before ordering a replacement. |
OEM Buying Guide
How to Order the Correct Titan 1140ix High Rider Cart Parts
Confirm Your Cart
Verify the Titan 1140ix model and High Rider Cart P/N 800-600 configuration.
Locate the Diagram Ref.
Identify the wheel, handle component or hardware item in the illustrated cart diagram.
Match the OEM Number
Compare the listed Titan part number with the component you need to replace.
Order Online
Select the correct OEM cart component and purchase it from AllTitanParts.
Cart Repair Planning
Replace Individual Cart Parts or Service the Wheel Assembly?
If a wheel is damaged, inspect the Titan 670-109 Wheel along with the associated axle and retention hardware. A loose wheel may require attention to the Titan 800-019 Axle Cap or another designated component.
For handle-related problems, inspect the Titan 590-504 Sleeve Handle, 9841504 Snap Button and applicable retaining hardware. Replace the part identified by the diagram and inspection.
Individual hardware items should be selected by their exact OEM part number. Washers, plugs, spacers and retaining pins are not interchangeable merely because their descriptions appear similar.
Preventive Maintenance
Maintain Your Titan 800-600 High Rider Cart
Inspect the Wheels
Check for wear, cracks, damage and restricted wheel movement before transporting the sprayer.
Check Axle Retention
Inspect the axle cap and related wheel hardware for damage, looseness or missing components.
Inspect Handle Components
Check the handle sleeve and snap button for damage and proper retention.
Verify Fastener Condition
Inspect designated screws, washers, spacers and pins using the manufacturer's service guidance.
Related Titan 1140ix Categories
Shop More Titan 1140ix Replacement Parts
Explore related Titan 1140ix parts categories to find additional OEM components for sprayer repairs and maintenance.
Titan 1140ix Main Assembly Parts
Shop OEM main assembly components, including fluid sections, siphon tubes, inlet screens, PrimeSpray valves, bypass tubes and mounting hardware.
Shop Main Assembly PartsTitan 1140ix Drive Assembly Parts
Browse genuine Titan gearbox assemblies, drive gears, slide assemblies, motor components, electronic controls and related drive hardware.
Shop Drive Assembly PartsTitan 1140ix Fluid Section Assembly Parts
Find replacement components for the Titan 800-300 Fluid Section, including repacking kits, piston rods, packings, valve components and seals.
Shop Fluid Section PartsTitan 1140ix Airless Sprayer Parts
Return to the Titan 1140ix model category to browse additional assembly diagrams and available OEM replacement parts.
Browse Titan 1140ix PartsTitan 1140ix Cart Service Safety
Before servicing the cart, switch off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure. Position the equipment on a stable surface and support it securely before removing a wheel or axle component. Follow the applicable Titan operating and service instructions.
Genuine Titan High Rider Cart Components
Order Titan 1140ix High Rider Cart Parts Today
Shop Titan OEM wheels, axle caps, handle sleeves, snap buttons, spacers, washers, retaining pins and mounting hardware. Identify your replacement using the exploded cart diagram.
Shop Titan 1140ix High Rider Cart PartsFrequently Asked Questions
Titan 1140ix High Rider Cart Parts FAQ
What is Titan 800-600?
Titan 800-600 identifies the High Rider Cart assembly covered by this Titan 1140ix parts diagram.
How many replacement parts are listed for the Titan 1140ix High Rider Cart?
The category currently lists 11 OEM replacement products, including a wheel, axle cap, handle sleeve, snap button, spacer, plugs and fastening hardware.
What is the Titan 1140ix High Rider Cart wheel part number?
Titan 670-109 is the Wheel listed at diagram reference 13.
What is the Titan 1140ix axle cap part number?
Titan 800-019 is the Axle Cap listed at diagram reference 15.
Which handle sleeve is listed for the Titan 1140ix cart?
Titan 590-504 is the Sleeve Handle listed at diagram reference 4.
What is Titan 9841504?
Titan 9841504 is the Snap Button listed at diagram reference 3.
What is Titan 800-011 used for?
Titan 800-011 is a Spacer used at the designated location shown in the High Rider Cart assembly diagram.
Can I buy individual cart hardware instead of replacing the entire cart?
Yes. The category lists individual replacement products, including screws, washers, pins, spacers, plugs, a wheel and an axle cap. Availability of a complete cart assembly should be confirmed separately.
Are Titan 0294635 and 9885571 the same plug?
No interchangeability is established by the parts list. They have different OEM part numbers and diagram references. Select the plug specified for your required location.
Where can I buy Titan 1140ix High Rider Cart Parts?
Shop Titan 1140ix High Rider Cart Parts (P/N 800-600) at AllTitanParts and use the illustrated parts diagram to identify the correct OEM replacement.
