Drive Assembly Overview
Buy Genuine Titan 1140ix Drive Assembly Replacement Parts
The Titan 1140ix Drive Assembly contains mechanical and electrical components that support the sprayer's pumping operation. The gearbox and associated drive components transfer motor power into the mechanical movement required to operate the pump. The electronic pressure-control system helps regulate sprayer operation.
Mechanical wear, damaged gears, worn slider components, defective electrical controls and loose mounting hardware can contribute to operational problems. Identifying the correct replacement component is essential when repairing the drive system.

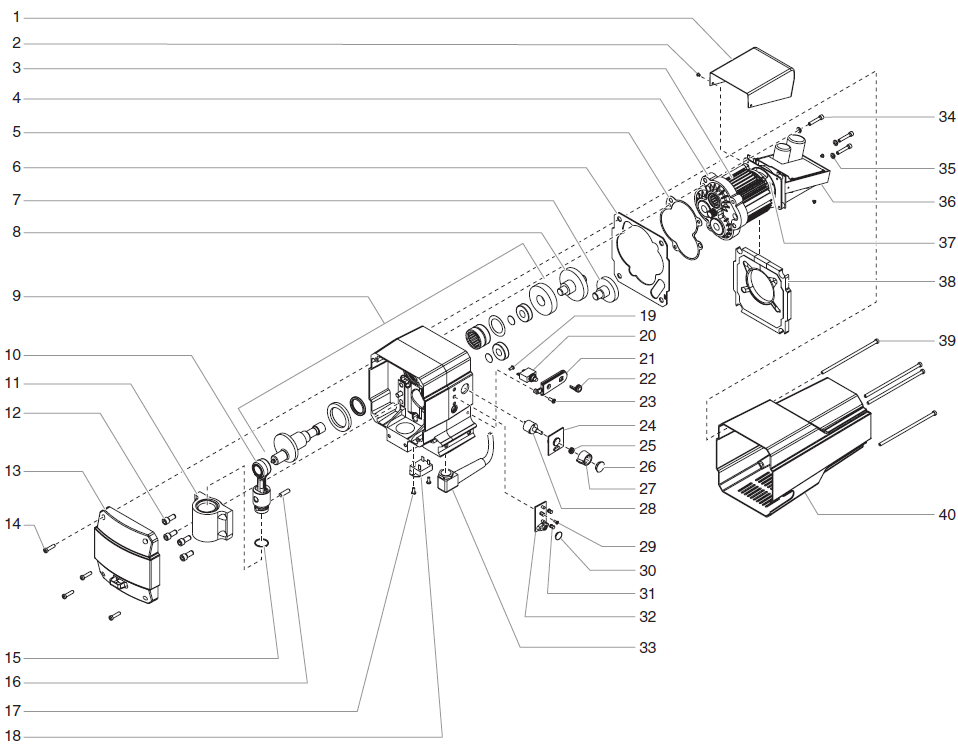

AllTitanParts provides an illustrated Titan 1140ix Drive Assembly parts diagram with 30 listed OEM replacement products. Use the diagram reference numbers and part descriptions below to identify components before purchasing.
OEM Parts Directory
Titan 1140ix Drive Assembly Parts List
Browse the 30 replacement products listed for the Titan 1140ix Drive Assembly. Match the diagram reference and OEM part number with your equipment before ordering.
| Diagram Ref. | Titan Part Number | OEM Description | Component Type |
|---|---|---|---|
| 1 | 800-078 | Electronic Cover, Aspen | Control Protection |
| 2 | 800-205 | Screw | Fastening Hardware |
| 5 | 800-525 | Housing Gasket | Housing Seal |
| 6 | 800-541 | Shroud Gasket | Housing Seal |
| 7 | 800-261 | Gear | Drive Gear |
| 8 | 800-262 | Second Stage Gear | Drive Gear |
| 9 | 800-260 | Gearbox Assembly | Drive Assembly |
| 10 | 800-510A | Slide Assembly, Replaces 800-510 | Drive Mechanism |
| 11 | 800-253 | Housing Slider Bushing | Slider Support |
| 12 | 700-283 | Screw | Fastening Hardware |
| 14 | 800-284 | Fillister Screw | Fastening Hardware |
| 15 | 800-382 | Retaining Ring | Retention Hardware |
| 16 | 800-753 | Connecting Pin | Drive Linkage |
| 18 | 800-276 | Starter Motor | Electrical Drive |
| 19 | 9800340 | Ground Screw | Electrical Grounding |
| 20 | 765-327A | 15 Amp Circuit Breaker, Replaces 507753 | Electrical Protection |
| 21 | 800-075 | Mounting Plate | Mounting Hardware |
| 23 | 800-076 | Screw | Fastening Hardware |
| 24 | 800-274 | Potentiometer Mounting Plate | Pressure Control Mount |
| 25 | 700-176 | Nut with Seal | Control Hardware |
| 26 | 700-175 | Potentiometer Cap, Replaces 507748 | Pressure Control Hardware |
| 27 | 700-159 | Pressure Control Knob, Replaces 507740 | Pressure Adjustment |
| 28 | 800-277 | Potentiometer | Pressure Control |
| 30 | 704-281 | Plug or Grommet | Component Protection |
| 33 | 704-553 | Power Cord Assembly, Replaces 552101 | Electrical Supply |
| 34 | 700-287 | Socket Head Cap Screw | Fastening Hardware |
| 35 | 9821503 | Lock Washer | Fastening Hardware |
| 36 | 800-292 | Electronic Control Assembly (EPC) | Electronic Control |
| 39 | 800-283 | Fillister Screw | Fastening Hardware |
| 42 | 800-368 | Wire Assembly | Electrical Connection |
Featured Drive Components
Shop Titan 1140ix Gearbox, Motor and Pressure Control Parts
Titan 800-260 Gearbox Assembly
The Titan 800-260 Gearbox Assembly is listed at diagram reference 9. It forms a central part of the mechanical drive system. Confirm the complete assembly configuration before replacement.
OEM Part: 800-260Titan 800-261 and 800-262 Drive Gears
Titan 800-261 Gear and 800-262 Second Stage Gear are individual gearbox components. Inspect gear condition and related mechanical parts when diagnosing drive wear.
OEM Parts: 800-261, 800-262Titan 800-510A Slide Assembly
The Titan 800-510A Slide Assembly replaces Titan 800-510. This component is associated with the drive mechanism that transfers motion toward the pump.
OEM Part: 800-510ATitan 800-253 Slider Bushing Housing
The Titan 800-253 Housing Slider Bushing is part of the mechanical drive support arrangement. Inspect for wear or damage during appropriate drive servicing.
OEM Part: 800-253Titan 800-277 Potentiometer
Titan 800-277 is a potentiometer used in the pressure-control arrangement. Associated parts include the control knob, cap and mounting plate.
OEM Part: 800-277Titan 800-292 Electronic Control Assembly
The Titan 800-292 Electronic Control Assembly (EPC) is listed at diagram reference 36. Electrical diagnosis should follow the manufacturer's service procedures.
OEM Part: 800-292Drive System Overview
How the Titan 1140ix Drive Assembly Works
Electrical Power
The power cord, circuit breaker, motor and associated wiring support the sprayer's electrical drive system.
Mechanical Transmission
The gearbox and drive gears transfer rotational power through the mechanical drive arrangement.
Pump Actuation
The slide assembly and associated linkage support the movement required to operate the pump.
Pressure Regulation
The electronic control components and pressure adjustment hardware support regulated sprayer operation.
Troubleshooting Guide
Common Titan 1140ix Drive Assembly Problems
Drive and electrical symptoms can have multiple causes. Use the applicable Titan troubleshooting procedures before replacing a motor, gearbox or electronic control component.
| Symptom | Components to Inspect | Recommended Check |
|---|---|---|
| Motor does not operate | 800-276, 765-327A, 704-553 | Check the electrical supply, circuit protection and motor system using the approved service procedure. |
| Abnormal gearbox noise | 800-260, 800-261, 800-262 | Have the gearbox and drive gears inspected for wear or damage. |
| Irregular mechanical movement | 800-510A, 800-253, 800-753 | Inspect the slide assembly, bushing housing and linkage components. |
| Pressure adjustment problems | 700-159, 700-175, 800-277 | Check pressure-control hardware and follow the electronic control diagnostic procedure. |
| Electronic control fault | 800-292, 800-368 | Have qualified personnel inspect the electronic control and wiring. |
| Loose or damaged mounting hardware | 800-205, 700-283, 800-284, 9821503 | Identify the correct fasteners and follow Titan's installation specifications. |
Replacement Parts Buying Guide
How to Order the Correct Titan 1140ix Drive Assembly Parts
Confirm the Model
Check your Titan 1140ix model designation and serial information.
Locate the Diagram Ref.
Find the component in the illustrated drive assembly diagram.
Match the OEM Number
Compare the original part number with the listed Titan replacement.
Order the Correct Part
Select the replacement component and purchase it through AllTitanParts.
OEM Replacement References
Titan 1140ix Superseded Part Numbers
The following replacement references are identified in the Titan 1140ix Drive Assembly product listings.
- Titan 800-510A Slide Assembly replaces 800-510.
- Titan 765-327A 15 Amp Circuit Breaker replaces 507753.
- Titan 700-175 Potentiometer Cap replaces 507748.
- Titan 700-159 Pressure Control Knob replaces 507740.
- Titan 704-553 Power Cord Assembly replaces 552101.
Preventive Maintenance
Maintain Your Titan 1140ix Drive Assembly
Inspect Mechanical Components
Follow Titan's service instructions for inspecting gearbox components, drive gears, slide assemblies and associated linkage.
Check Mounting Hardware
Inspect specified screws, retaining rings, connecting pins and mounting plates during appropriate maintenance.
Protect Electrical Components
Keep electrical covers and protective components properly installed and follow approved cleaning procedures.
Follow Control System Procedures
Use the manufacturer's diagnostic and calibration instructions when servicing pressure-control or electronic components.
Related Titan 1140ix Categories
Shop More Titan 1140ix Replacement Parts
Explore related Titan 1140ix assembly categories to locate additional OEM components for pump, fluid-delivery and general sprayer repairs.
Titan 1140ix Main Assembly Parts
Shop genuine Titan main assembly components, including fluid sections, siphon tubes, inlet screens, PrimeSpray valves, bypass tubes, fluid fittings and mounting hardware.
Shop Main Assembly PartsTitan 1140ix Fluid Section Assembly Parts
Find replacement components associated with the Titan 800-300 Fluid Section. Browse the dedicated pump parts diagram for fluid-section maintenance and repair.
Shop Fluid Section PartsTitan 1140ix Digital Airless Sprayer Parts
Return to the Titan 1140ix sprayer model category to browse available assembly diagrams and identify additional replacement components.
Browse Titan 1140ix PartsTitan 1140ix Drive Assembly Service Safety
Airless spray equipment contains high-pressure fluid systems and electrical components. Before servicing the drive assembly, turn off the sprayer, disconnect the electrical supply and follow Titan's complete pressure-relief procedure. Electrical diagnosis and repairs should be performed by qualified personnel. Follow the applicable Titan service manual.
Genuine Titan Drive Assembly Components
Order Titan 1140ix Drive Assembly Parts Today
Shop genuine Titan gearbox assemblies, gears, slide assemblies, pressure-control components, electrical parts and mounting hardware. Use the exploded diagram to find your OEM replacement part.
Shop Titan 1140ix Drive Assembly PartsFrequently Asked Questions
Titan 1140ix Drive Assembly Parts FAQ
What parts are included in the Titan 1140ix Drive Assembly?
The category lists 30 replacement products, including gearbox components, drive gears, a slide assembly, motor parts, electrical controls, mounting hardware and related components.
What is the Titan 1140ix gearbox assembly part number?
Titan 800-260 is the Gearbox Assembly listed at diagram reference 9.
Which Titan gears are listed for the 1140ix Drive Assembly?
Titan 800-261 Gear and Titan 800-262 Second Stage Gear are listed at diagram references 7 and 8.
What replaces Titan 800-510 Slide Assembly?
Titan 800-510A is the listed replacement for Titan 800-510 Slide Assembly.
What is the Titan 1140ix potentiometer part number?
Titan 800-277 is the Potentiometer listed at diagram reference 28.
What is Titan 800-292?
Titan 800-292 is the Electronic Control Assembly (EPC) listed at diagram reference 36.
What replaces Titan 507753 circuit breaker?
Titan 765-327A is the 15 Amp Circuit Breaker listed as replacing Titan 507753.
What replaces Titan 507740 pressure control knob?
Titan 700-159 is the Pressure Control Knob listed as replacing Titan 507740.
Can I replace individual drive components instead of the entire gearbox?
Some drive components, including gears and associated hardware, are listed individually. Determine the appropriate repair based on component condition and Titan's service instructions.
Where can I buy genuine Titan 1140ix Drive Assembly Parts?
Shop Titan 1140ix Drive Assembly Parts at AllTitanParts. Use the illustrated parts diagram to identify the correct OEM component.
