Titan 1140ix Airless Sprayer | Low Rider Siphon Set
Shop Titan 1140ix Low Rider Siphon Set Parts
Restore dependable material intake and priming with genuine Titan 1140ix Siphon Set Parts (Low Rider). Shop OEM siphon tube assemblies, inlet screens, swivel fittings, return hoses, siphon adapters, PrimeSpray valves and retaining hardware. Find your replacement using the exploded parts diagram and order online from AllTitanParts.
Siphon Set Overview
Buy Genuine Titan 1140ix Low Rider Siphon Parts Online
The Titan 1140ix Low Rider Siphon Set provides the fluid intake connection between the coating container and the sprayer pump. Its siphon tube assembly and inlet screen help supply coating material to the pump, while the associated swivel, adapter and return-line components support the specified intake and recirculation arrangement.
When intake components become obstructed, damaged or improperly sealed, the sprayer may be difficult to prime, lose suction or deliver inconsistent material flow. The source of these symptoms must be confirmed because pump packings, inlet valves and other fluid-system components can cause similar problems.
AllTitanParts offers 8 listed Titan OEM replacement products for this Low Rider siphon set. Use the factory-style exploded diagram and the part numbers below to identify the exact component required for your repair.
OEM Parts Directory
Titan 1140ix Low Rider Siphon Set Parts List

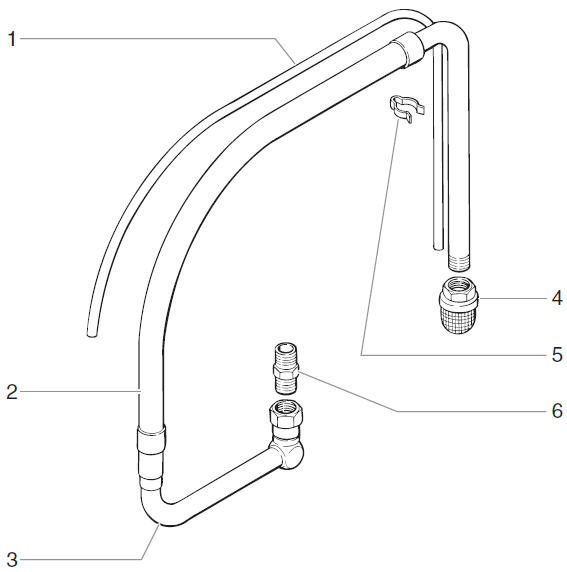

Browse the eight listed replacement products. Match each diagram reference with the correct Titan part number before ordering.
| Diagram Ref. | Titan Part Number | OEM Description | Component Group |
|---|---|---|---|
| Not numbered | 710-204 | Siphon Tube Assembly | Material Intake |
| 1 | 800-903 | Return Hose, replaces 507964 | Return Line |
| 2 | 700-258 | PrimeSpray Valve Assembly | Priming Control |
| 3 | 710-195 | Siphon Swivel | Intake Connection |
| 4 | 710-046 | Inlet Screen, 10 Mesh | Intake Filtration |
| 5 | 730-334 | Hose Tie Clamp | Hose Retention |
| 6 | 710-081 | Siphon Tube Adapter | Intake Connection |
| 7 | 700-742 | Tie Wrap | Line Management |
Featured OEM Components
Shop Titan Siphon Tubes, Inlet Screens and Return Hoses
Titan 710-204 Siphon Tube Assembly
The Titan 710-204 Siphon Tube Assembly is the main intake tube product listed for this Low Rider siphon configuration. Inspect the tube for damage, obstruction and connection problems during servicing.
OEM Part: 710-204Titan 800-903 Return Hose
The Titan 800-903 Return Hose replaces Titan 507964. It provides a designated return path for material during priming and recirculation. Inspect the hose for cracks, leakage and deterioration.
OEM Part: 800-903Titan 700-258 PrimeSpray Valve
The Titan 700-258 PrimeSpray Valve Assembly supports switching between the specified prime and spray operating modes. Verify valve condition before selecting a replacement.
OEM Part: 700-258Titan 710-195 Siphon Swivel
The Titan 710-195 Siphon Swivel is an OEM connection component for the siphon arrangement. Inspect the connection for wear, damage or signs of air leakage.
OEM Part: 710-195Titan 710-046 Inlet Screen
The Titan 710-046 is a 10-mesh stainless steel inlet screen that helps keep larger debris out of the intake path. Inspect for clogging, deformation and accumulated material.
OEM Part: 710-046Titan 710-081 Siphon Tube Adapter
The Titan 710-081 Siphon Tube Adapter is used at the designated siphon tube connection. Match its part number and diagram position when repairing an intake connection.
OEM Part: 710-081Titan 730-334 Hose Tie Clamp
The Titan 730-334 Hose Tie Clamp helps retain the designated return or bypass hose. Replace missing or damaged retention hardware using the specified part.
OEM Part: 730-334Titan 700-742 Tie Wrap
The Titan 700-742 Tie Wrap is used for securing and organizing designated lines or components. Route and secure hoses as shown in the applicable assembly instructions.
OEM Part: 700-742Material Intake and Priming
How the Titan 1140ix Low Rider Siphon Set Works
Material Pickup
The siphon tube draws coating material from the supply container toward the pump inlet.
Intake Screening
The 10-mesh inlet screen helps reduce the entry of larger debris into the suction path.
Secure Connections
The siphon swivel and tube adapter provide their designated intake connection functions.
Prime and Return
The PrimeSpray valve and return hose support the material circulation path used during priming.
Troubleshooting Guide
Common Titan 1140ix Siphon Set Problems
Use the symptoms below to guide inspection. They are not proof that a specific part has failed. Consult the applicable Titan service manual before making repairs.
| Symptom | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer struggles to prime | 710-046 Inlet Screen, 710-204 Siphon Tube | Check for intake blockage, insufficient immersion or damaged tube components. |
| Air entering the suction line | 710-195 Siphon Swivel, 710-081 Adapter | Inspect designated connections for looseness, damage and sealing issues. |
| Reduced material intake | 710-046 Screen, 710-204 Tube | Inspect for dried coating, debris or restrictions in the suction path. |
| Return hose leaks | 800-903 Return Hose, 730-334 Clamp | Check the hose condition and the specified retention arrangement. |
| Difficulty switching prime and spray modes | 700-258 PrimeSpray Valve | Follow Titan's valve troubleshooting and service procedure. |
| Return line is unsecured | 730-334 Clamp, 700-742 Tie Wrap | Verify hose routing and replace damaged or missing retaining hardware. |
OEM Buying Guide
How to Choose the Correct Titan 1140ix Low Rider Siphon Parts
Confirm the Configuration
Verify that your Titan 1140ix uses the Low Rider siphon arrangement shown in this diagram.
Locate the Component
Identify the intake tube, inlet screen, return hose or connection in the exploded diagram.
Match the Part Number
Compare the listed OEM number with the part you are replacing, including any supersession information.
Order with Confidence
Select the correct individual OEM part from the AllTitanParts product listings.
Fitment and Filtration Guidance
Low Rider Siphon Parts vs. Other Titan 1140ix Assemblies
The Low Rider Siphon Set is a distinct parts-diagram category. Do not assume that every siphon tube, hose or mounting component from a High Rider configuration will fit the Low Rider assembly. Confirm the illustrated configuration and exact OEM part number before ordering.
The Titan 710-046 10-mesh inlet screen serves a different filtration position from the finer manifold filter found in the Titan 1140ix Filter Assembly. Their different locations and mesh ratings mean they should not be treated as interchangeable parts.
For replacement references, the category identifies Titan 800-903 Return Hose as replacing Titan 507964. Use the current listed number when ordering that return hose.
Preventive Maintenance
Maintain Your Titan 1140ix Low Rider Siphon Set
Clean the Inlet Screen
Inspect the screen for paint buildup and debris. Clean it according to the applicable Titan instructions.
Inspect Suction Connections
Check the siphon swivel and adapter for wear, damage and signs of air leakage.
Examine Return Hose Condition
Inspect the return hose for cracking, abrasion and leakage. Replace damaged components.
Secure Hose Routing
Confirm that designated clamps and tie wraps retain hoses without kinking or damaging them.
Related Titan 1140ix Categories
Shop More Titan 1140ix Replacement Parts
Explore other Titan 1140ix assembly diagrams for genuine OEM pump, filtration, drive and cart components.
Titan 1140ix Main Assembly Parts
Find main assembly components, intake-related hardware, bypass components and other OEM replacement parts.
Shop Main Assembly PartsTitan 1140ix Drive Assembly Parts
Browse gearbox, motor, drive mechanism and control-related replacement components.
Shop Drive Assembly PartsTitan 1140ix Fluid Section Assembly Parts
Shop components for the Titan 800-300 fluid section, including repacking kits, piston rods, valve balls and pump seals.
Shop Fluid Section PartsTitan 1140ix Filter Assembly Parts
Find Titan 800-900 filter assembly components, including manifold filters, filter housings, seals and pressure-sensing parts.
Shop Filter Assembly PartsTitan 1140ix High Rider Cart Parts
Browse the separate Titan 800-600 High Rider Cart category for wheels, handle sleeves and cart hardware.
Shop High Rider Cart PartsTitan 1140ix Digital Airless Sprayer Parts
Return to the Titan 1140ix model page to browse available assemblies and OEM replacement parts.
Browse Titan 1140ix PartsTitan 1140ix Siphon Set Service Safety
Before disconnecting siphon components, switching hoses or servicing the PrimeSpray valve, turn off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Airless equipment can cause serious high-pressure fluid injection injuries. Follow the manufacturer's operating and service instructions and never loosen pressurized fittings.
Genuine Titan Low Rider Siphon Components
Order Titan 1140ix Siphon Set Parts Today
Shop genuine OEM siphon tube assemblies, inlet screens, return hoses, swivels, adapters, PrimeSpray valves and retaining hardware for your Titan 1140ix Low Rider configuration.
Shop Titan 1140ix Low Rider Siphon PartsFrequently Asked Questions
Titan 1140ix Low Rider Siphon Set FAQ
What does the Titan 1140ix Low Rider siphon set do?
The siphon set provides the intake connection that draws coating material from the supply container toward the pump. Its associated components also support priming and return-line routing.
How many parts are listed for the Low Rider siphon set?
The category currently lists eight OEM replacement products, including the siphon tube assembly, return hose, PrimeSpray valve, swivel, inlet screen, hose tie clamp, adapter and tie wrap.
What is the Titan 1140ix siphon tube assembly part number?
Titan 710-204 is the Siphon Tube Assembly listed for this Low Rider configuration.
Which Titan return hose replaces 507964?
Titan 800-903 is listed as the Return Hose replacing Titan 507964.
What is the Titan 1140ix inlet screen part number?
Titan 710-046 is the 10-mesh inlet screen listed at diagram reference 4.
What is Titan 710-195?
Titan 710-195 is the Siphon Swivel listed at diagram reference 3.
Which PrimeSpray valve is listed for this siphon set?
Titan 700-258 is the PrimeSpray Valve Assembly listed at diagram reference 2.
Can a clogged inlet screen prevent the sprayer from priming?
A blocked inlet screen can restrict material intake and contribute to priming problems. Other suction and pump components should also be inspected before determining the cause.
Are Low Rider and High Rider siphon components interchangeable?
Interchangeability should not be assumed. Confirm the specific Titan configuration, diagram reference and OEM part number before ordering.
Where can I buy Titan 1140ix Low Rider Siphon Set Parts?
Shop Titan 1140ix Siphon Set Parts (Low Rider) at AllTitanParts and use the illustrated parts diagram to identify the correct OEM replacement.
