Titan 1140ix | Fluid Section P/N 800-300
Shop Titan 1140ix Fluid Section Assembly Parts
Restore pumping performance with genuine Titan 1140ix Fluid Section Assembly Parts (P/N 800-300). Shop OEM repacking kits, piston rods, upper and lower packings, pump housings, inlet and outlet valve components, seals, O-rings and service tools. Find the correct replacement using the exploded parts diagram and order online at AllTitanParts.
Fluid Section Overview
Buy Genuine Titan 1140ix Pump Repair Parts Online
The Titan 800-300 Fluid Section Assembly is the pumping section associated with the Titan 1140ix Airless Sprayer. Its piston, packings, housings, inlet valve and outlet valve components work together to draw in coating material and deliver it under pressure to the spray system.
As pump components wear, you may experience reduced pressure, irregular fluid delivery, difficulty priming or leakage around the packing area. Correct diagnosis is important because these symptoms can also originate elsewhere in the sprayer.
AllTitanParts provides a dedicated Titan 1140ix Fluid Section Assembly parts diagram and individual OEM replacement listings. Choose the specific part required for your repair, whether you need a repacking kit, valve component, piston rod or housing.
OEM Parts Directory
Titan 800-300 Fluid Section Assembly Parts List

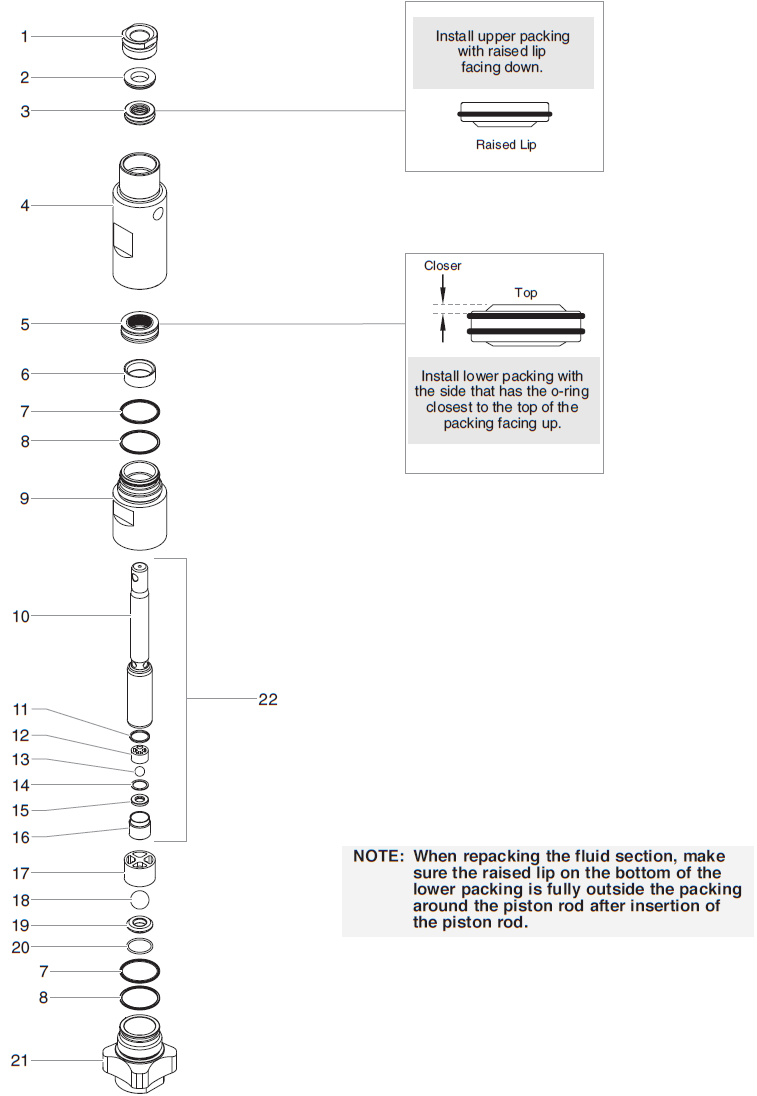

The following 24 products are listed for the Titan 1140ix Fluid Section Assembly. Numbered references correspond to the exploded diagram. The repacking kit and piston insertion tool are also listed as separate service products.
| Diagram Ref. | Titan Part Number | OEM Description |
|---|---|---|
| Kit | 800-273 | Repacking Kit |
| Tool | 800-359 | Piston Insertion Tool |
| 1 | 800-325 | Upper Seal Retainer |
| 2 | 800-327 | Spacer |
| 3 | 800-248 | Upper Packing |
| 4 | 800-351 | Upper Housing |
| 5 | 800-355A | Lower Packing Assembly |
| 6 | 800-354 | Wear Ring |
| 7 | 800-332 | Viton O-Ring |
| 8 | 800-333 | PTFE Back-Up Ring |
| 9 | 800-352 | Lower Housing |
| 10 | 800-246 | Piston Rod |
| 11 | 800-348 | Outlet Valve Seal |
| 12 | 0507452 | Upper Cage |
| 13 | 9841502 | Outlet Valve Ball |
| 14 | 0507454 | Washer |
| 15 | 800-243 | Outlet Seat Valve |
| 16 | 800-336 | Outlet Valve Retainer |
| 17 | 800-322 | Lower Cage |
| 18 | 51519 | Inlet Ball, Replaces 800-242 |
| 19 | 800-241 | Foot Valve Seat |
| 20 | 762-058 | Seat O-Ring |
| 21 | 800-305 | Foot Valve Housing |
| 22 | 800-365A | Piston Assembly, Replaces 800-365 |
Featured Pump Components
Shop Titan 1140ix Repacking Kits, Pistons and Valve Parts
Titan 800-273 Repacking Kit
The Titan 800-273 Repacking Kit is listed for servicing the Titan 800-300 Fluid Section. Repacking addresses worn sealing components when inspection confirms that packing replacement is required.
OEM Part: 800-273Titan 800-246 Piston Rod
The Titan 800-246 Piston Rod is a major moving component within the fluid section. Inspect its sealing surfaces for wear, scoring or other damage during repair.
OEM Part: 800-246Titan 800-355A Lower Packing Assembly
Titan 800-355A is the Lower Packing Assembly listed at diagram reference 5. It is part of the pump's sealing arrangement and should be serviced according to Titan procedures.
OEM Part: 800-355ATitan 800-365A Piston Assembly
The Titan 800-365A Piston Assembly replaces Titan 800-365. It is available as a listed assembly component for compatible pump repairs.
OEM Part: 800-365ATitan 51519 Inlet Valve Ball
Titan 51519 replaces Titan 800-242 and is listed as the Inlet Ball. It works with the designated foot valve seat to support one-way material flow.
OEM Part: 51519Titan Outlet Valve Components
Shop Titan 9841502 Outlet Valve Ball, 800-243 Outlet Seat Valve, 800-348 Outlet Valve Seal and 800-336 Outlet Valve Retainer.
OEM Parts: 9841502, 800-243, 800-348, 800-336Fluid Section Operation
How the Titan 800-300 Fluid Section Works
Material Intake
The foot valve and inlet ball permit material to enter the pumping chamber during the intake stroke.
Piston Movement
The piston rod and piston assembly move through the pumping cycle to displace coating material.
Pressure Sealing
Upper and lower packings help maintain fluid sealing around designated moving pump components.
Fluid Discharge
Outlet valve components control the discharge of pressurized material from the pump.
Troubleshooting Guide
Common Titan 1140ix Fluid Section Problems
Fluid-section problems may have several possible causes. Inspect the pump and follow the applicable Titan troubleshooting procedure before purchasing replacement parts.
| Symptom | Components to Inspect | Recommended Check |
|---|---|---|
| Leakage around the piston packing area | 800-248, 800-355A, 800-273 | Inspect upper and lower packings for wear and follow the specified repacking procedure. |
| Difficulty priming | 51519, 800-241, 800-305 | Check the inlet ball, foot valve seat and housing for contamination or damage. |
| Reduced or irregular pressure | 800-246, 9841502, 800-243 | Inspect the piston and outlet valve components as part of a complete pressure diagnosis. |
| Outlet valve leakage | 800-348, 9841502, 800-243 | Inspect the valve ball, seat and seal for wear or debris. |
| Damaged pump housing or sealing surfaces | 800-351, 800-352, 800-332, 800-333 | Inspect housing condition and sealing components before reassembly. |
| Worn piston assembly | 800-365A, 800-246 | Determine whether an individual piston rod or the specified piston assembly is required. |
OEM Buying Guide
How to Choose the Correct Titan 1140ix Fluid Section Parts
Confirm the Pump
Verify that your Titan 1140ix uses the specified 800-300 fluid section configuration.
Find the Diagram Ref.
Locate the component in the illustrated fluid section parts diagram.
Match the OEM Number
Compare the listed Titan part number with the component required for repair.
Order the Replacement
Select the appropriate individual part, repair kit or service tool at AllTitanParts.
Pump Repair Planning
Repacking Kit, Individual Seals or Piston Assembly?
Choose a repacking kit when diagnosis indicates that multiple packing and sealing components require replacement. Confirm the kit contents before assuming that a particular individual part is included.
Select individual seals, valve balls or seats when inspection identifies a specific worn component and the manufacturer's repair procedure permits individual replacement.
Consider the Titan 800-365A Piston Assembly when the required repair involves the listed piston assembly rather than only a seal or packing. The appropriate repair depends on component condition and the applicable service instructions.
Preventive Maintenance
Maintain Your Titan 800-300 Fluid Section
Inspect Packing Leakage
Monitor the packing area for leakage and service worn seals according to Titan's instructions.
Keep Valve Components Clean
Follow approved flushing and cleaning procedures to reduce contamination of inlet and outlet valve components.
Inspect the Piston Rod
During service, inspect the piston rod for scoring, surface damage and abnormal wear.
Use Approved Service Tools
Follow the manufacturer's repair instructions and use the specified tools when installing piston and packing components.
Related Titan 1140ix Categories
Shop More Titan 1140ix Replacement Parts
Explore related Titan 1140ix assembly categories to locate additional OEM components for sprayer maintenance and repair.
Titan 1140ix Main Assembly Parts
Browse OEM main assembly components, including fluid sections, siphon tubes, inlet screens, PrimeSpray valves, bypass tubes and mounting hardware.
Shop Main Assembly PartsTitan 1140ix Drive Assembly Parts
Shop Titan gearbox assemblies, drive gears, slide assemblies, motor components, electronic controls and related hardware.
Shop Drive Assembly PartsTitan 1140ix Airless Sprayer Parts
Return to the Titan 1140ix model category to explore other available assembly diagrams and replacement-parts categories.
Browse Titan 1140ix PartsHigh-Pressure Pump Service Safety
Airless spray equipment can cause serious high-pressure fluid injection injuries. Before servicing the fluid section, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never loosen pressurized fittings or place your hand near a fluid leak. Follow the applicable Titan service manual.
Genuine Titan 800-300 Fluid Section Parts
Order Titan 1140ix Fluid Section Parts Today
Shop Titan OEM repacking kits, piston rods, packing assemblies, inlet and outlet valves, pump housings, seals and service tools. Identify the correct part using the exploded diagram and order online.
Shop Titan 1140ix Fluid Section PartsFrequently Asked Questions
Titan 1140ix Fluid Section Assembly Parts FAQ
What is Titan 800-300?
Titan 800-300 identifies the fluid section assembly associated with this Titan 1140ix pump parts diagram.
How many products are listed in this fluid section category?
The category currently lists 24 products, including individual pump components, a repacking kit and a piston insertion tool.
What is the Titan 1140ix fluid section repacking kit number?
Titan 800-273 is the Repacking Kit listed for this fluid section category. Confirm the kit contents before ordering.
What is the Titan 1140ix piston rod part number?
Titan 800-246 is the Piston Rod listed at diagram reference 10.
What replaces Titan 800-242 inlet ball?
Titan 51519 is listed as the Inlet Ball replacing Titan 800-242.
What replaces Titan 800-365 piston assembly?
Titan 800-365A is the listed replacement for Titan 800-365 Piston Assembly.
Which Titan outlet valve parts are available?
The category lists Titan 9841502 Outlet Valve Ball, 800-243 Outlet Seat Valve, 800-348 Outlet Valve Seal and 800-336 Outlet Valve Retainer.
What is Titan 800-359 used for?
Titan 800-359 is listed as a Piston Insertion Tool for designated pump service procedures.
Should I buy a repacking kit or individual seals?
Choose based on the diagnosed wear and the manufacturer's repair procedure. A repacking kit may be appropriate when several sealing components require service, while individual parts may be suitable for a specific repair.
Where can I buy Titan 1140ix Fluid Section Assembly Parts?
Shop Titan 1140ix Fluid Section Assembly Parts (P/N 800-300) at AllTitanParts.
