Titan 1140ix Airless Sprayer | Low Rider Cart P/N 800-590
Shop Titan 1140ix Low Rider Cart Replacement Parts
Keep your Titan 1140ix airless sprayer mobile and properly supported with genuine Titan 1140ix Low Rider Cart Parts (P/N 800-590). Buy OEM replacement wheels, handle sleeves, snap buttons, drip cups, end caps, plugs, roll pins, washers and mounting hardware. Use the exploded cart diagram to identify your replacement and order online at AllTitanParts.
Low Rider Cart Overview
Buy Genuine Titan 800-590 Low Rider Cart Parts Online
The Titan 800-590 Low Rider Cart provides a wheeled support platform for the Titan 1140ix Airless Sprayer. Its components help support the sprayer during positioning, handling and movement between work areas. The assembly includes serviceable wheel, handle, retention, mounting and drip collection components.
Regular jobsite movement can expose cart wheels and hardware to wear. Handle sleeves can become damaged, retaining components can loosen or go missing, and drip cups may need replacement after prolonged use or accidental damage. Choosing the correct individual OEM component allows targeted maintenance without replacing unrelated sprayer systems.
AllTitanParts lists 11 genuine Titan replacement products for the Low Rider Cart P/N 800-590. Compare the illustrated reference numbers and OEM part descriptions below before purchasing.
OEM Parts Directory

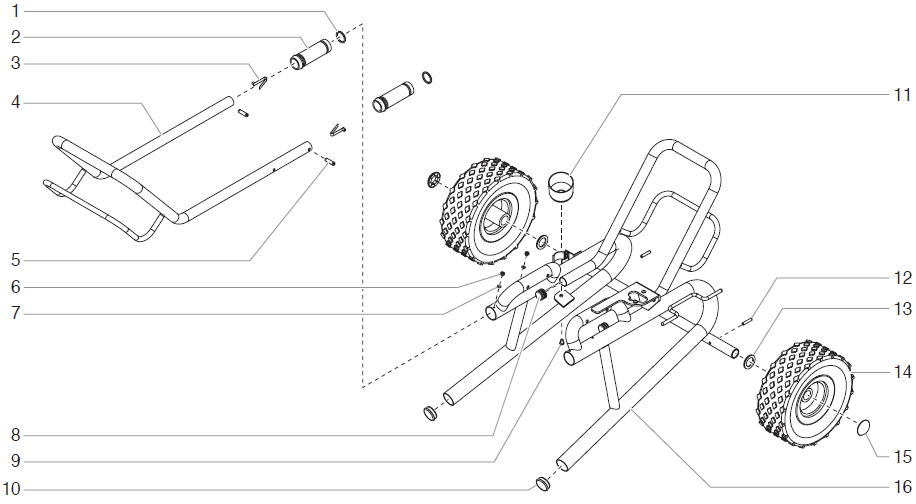

Titan 1140ix Low Rider Cart Parts List
Find the exact Titan wheel, handle component, drip cup or fastener using the corresponding diagram reference and OEM part number.
| Diagram Ref. | Titan Part Number | OEM Description | Component Type |
|---|---|---|---|
| 1 | 590-506 | Flat Washer | Fastening Hardware |
| 2 | 590-504 | Sleeve Handle | Handle Component |
| 3 | 9841504 | Snap Button | Handle Retention |
| 5 | 590-508 | Roll Pin | Retention Hardware |
| 6 | 856-921 | Screw | Mounting Hardware |
| 7 | 856-002 | Lock Washer | Fastening Hardware |
| 8 | 700-674 | End Cap | Protective Hardware |
| 9 | 9805230 | Drip Cup Screw | Drip Cup Fastener |
| 10 | 9885571 | Plug | Protective Hardware |
| 11 | 700-1041 | Drip Cup | Drip Collection |
| 14 | 800-593 | Wheel | Cart Mobility |
Featured Cart Replacement Parts
Shop Titan 1140ix Low Rider Wheels, Handles and Drip Cups
Titan 800-593 Wheel
The Titan 800-593 Wheel is the replacement wheel listed for the Low Rider Cart at diagram reference 14. Inspect it for cracks, wear and damage that may affect cart movement.
OEM Part: 800-593Titan 590-504 Sleeve Handle
The Titan 590-504 Sleeve Handle provides a gripping surface for moving the cart. Replace a damaged or worn handle sleeve with the specified OEM component.
OEM Part: 590-504Titan 9841504 Snap Button
The Titan 9841504 Snap Button is a spring-loaded retention component. Inspect it when the designated handle connection does not retain correctly.
OEM Part: 9841504Titan 700-1041 Drip Cup
The Titan 700-1041 Drip Cup is designed to collect fluid drips at its designated location. Inspect the cup for cracking, damage or missing mounting hardware.
OEM Part: 700-1041Titan 9805230 Drip Cup Screw
The Titan 9805230 Drip Cup Screw is the specified fastening component for the drip cup arrangement. Match diagram reference 9 when ordering.
OEM Part: 9805230Titan 700-674 End Cap
The Titan 700-674 End Cap closes and protects a designated cart opening. Replace missing or damaged end caps with the specified part.
OEM Part: 700-674Titan 590-508 Roll Pin
The Titan 590-508 Roll Pin is a retaining component listed at diagram reference 5. Confirm its placement and condition when inspecting the cart assembly.
OEM Part: 590-508Titan Cart Washers, Screws and Plugs
Shop OEM flat washers, lock washers, mounting screws and protective plugs used at the designated locations in the Titan 800-590 Low Rider Cart.
OEM Parts: 590-506, 856-002, 856-921, 9885571Cart Function Overview
How the Titan 800-590 Low Rider Cart Supports Your Sprayer
Mobility
The wheel components allow the sprayer cart to be moved between work locations.
Handling
The sleeve handle provides a gripping surface, while designated retention hardware supports the handle arrangement.
Drip Collection
The drip cup collects fluid at its designated location and is secured by the specified hardware.
Secure Assembly
Washers, screws, pins, end caps and plugs perform their specified fastening, retention or protective functions.
Troubleshooting Guide
Common Titan 1140ix Low Rider Cart Problems
Use these symptoms to guide inspection. Confirm the damaged or missing component against the exploded diagram before purchasing a replacement.
| Symptom | Parts to Inspect | Recommended Check |
|---|---|---|
| Cart wheel is damaged | 800-593 Wheel | Inspect for cracking, wear, deformation and restricted movement. |
| Handle grip is worn | 590-504 Sleeve Handle | Check for splitting, looseness or deterioration. |
| Handle does not retain correctly | 9841504 Snap Button, 590-508 Roll Pin | Inspect the designated handle retention components. |
| Drip cup is cracked or missing | 700-1041 Drip Cup | Inspect the cup and its attachment point. |
| Drip cup is loose | 9805230 Drip Cup Screw | Check the specified screw and mounting arrangement. |
| Cart hardware is loose | 856-921 Screw, 856-002 Lock Washer, 590-506 Flat Washer | Inspect the designated fasteners and follow Titan's assembly instructions. |
| End cap or plug is missing | 700-674 End Cap, 9885571 Plug | Match the correct component to the diagram reference. |
OEM Parts Buying Guide
How to Order the Correct Titan 1140ix Low Rider Cart Parts
Confirm Cart Configuration
Verify your Titan 1140ix is equipped with the Low Rider Cart P/N 800-590.
Locate the Diagram Ref.
Identify the damaged wheel, handle part, drip cup or hardware item on the exploded diagram.
Match the OEM Number
Compare the diagram reference and Titan part number with your existing component.
Purchase Online
Order the correct individual OEM cart component from AllTitanParts.
Fitment Guidance
Low Rider Cart vs. High Rider Cart: Check Before Ordering
The Titan 800-590 Low Rider Cart and Titan 800-600 High Rider Cart are separate assembly configurations. Some hardware descriptions may be similar, but complete cart components should not be assumed interchangeable.
For example, this Low Rider category lists the Titan 800-593 Wheel, while the High Rider category lists a different wheel part number, Titan 670-109. Always select the wheel specified for your exact cart configuration.
The Low Rider category also includes the Titan 700-1041 Drip Cup and 9805230 Drip Cup Screw. Use the appropriate assembly diagram to verify any additional components required for your repair.
Preventive Maintenance
Maintain Your Titan 800-590 Low Rider Cart
Inspect the Wheel
Check for cracking, excessive wear, damage and restricted movement before transporting the sprayer.
Check the Handle
Inspect the sleeve handle, snap button and designated retaining hardware for proper condition.
Inspect the Drip Cup
Check for cracks, damage and missing fasteners. Clean the cup according to the applicable service instructions.
Verify Cart Hardware
Inspect screws, washers, roll pins, end caps and plugs for damage or missing components.
Related Titan 1140ix Categories
Shop More Titan 1140ix Replacement Parts
Explore related Titan 1140ix assembly categories to find additional genuine OEM parts for sprayer repair and maintenance.
Titan 1140ix Main Assembly Parts
Shop OEM main assembly components, siphon-related parts, fluid fittings, PrimeSpray valves and mounting hardware.
Shop Main Assembly PartsTitan 1140ix Drive Assembly Parts
Find genuine Titan gearbox, drive mechanism, motor and electronic control replacement components.
Shop Drive Assembly PartsTitan 1140ix Fluid Section Assembly Parts
Browse components for the Titan 800-300 fluid section, including repacking kits, piston rods, pump seals and valve parts.
Shop Fluid Section PartsTitan 1140ix Filter Assembly Parts
Shop the Titan 800-900 filter assembly for manifold filters, filter housings, seals and related components.
Shop Filter Assembly PartsTitan 1140ix Low Rider Siphon Set Parts
Find siphon tube assemblies, inlet screens, return hoses, swivels, adapters and related Low Rider intake components.
Shop Low Rider Siphon PartsTitan 1140ix High Rider Cart Parts
Explore the separate Titan 800-600 High Rider Cart category for its specified wheels, axle caps, handles and mounting hardware.
Shop High Rider Cart PartsTitan 1140ix Digital Airless Sprayer Parts
Return to the Titan 1140ix model category to browse available assembly diagrams and OEM replacement parts.
Browse All Titan 1140ix PartsTitan 1140ix Low Rider Cart Service Safety
Before servicing the cart, turn off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure. Place the equipment on a stable surface and support it securely before removing a wheel or other load-bearing component. Follow the manufacturer's assembly and service instructions.
Genuine Titan Low Rider Cart Components
Order Titan 1140ix Low Rider Cart Parts Today
Shop OEM Titan 800-593 wheels, 590-504 handle sleeves, 700-1041 drip cups, retaining hardware and more. Match your replacement to the illustrated parts diagram before ordering.
Shop Titan 1140ix Low Rider Cart PartsFrequently Asked Questions
Titan 1140ix Low Rider Cart Parts FAQ
What is Titan 800-590?
Titan 800-590 identifies the Low Rider Cart assembly covered by this Titan 1140ix parts diagram.
How many replacement parts are listed for the Titan 1140ix Low Rider Cart?
The category lists 11 OEM replacement products, including a wheel, sleeve handle, snap button, drip cup, end cap, plug and fastening hardware.
What is the Titan 1140ix Low Rider Cart wheel part number?
Titan 800-593 is the Wheel listed at diagram reference 14 for the Low Rider Cart.
Which handle sleeve fits the Titan 1140ix Low Rider Cart?
Titan 590-504 is the Sleeve Handle listed at diagram reference 2.
What is the Titan 1140ix Low Rider Cart drip cup part number?
Titan 700-1041 is the Drip Cup listed at diagram reference 11.
Which screw is listed for the drip cup?
Titan 9805230 is the Drip Cup Screw listed at diagram reference 9.
What is Titan 9841504?
Titan 9841504 is the Snap Button listed at diagram reference 3.
Are Titan 800-593 and Titan 670-109 wheels interchangeable?
Interchangeability is not established by the category diagrams. Titan 800-593 is listed for the Low Rider Cart, while Titan 670-109 is listed for the High Rider Cart. Match the exact cart configuration.
Can I buy individual Low Rider Cart hardware?
Yes. The category lists individual washers, screws, roll pins, end caps, plugs and other replacement products. Match the OEM part number before ordering.
Where can I buy Titan 1140ix Low Rider Cart Parts?
Shop Titan 1140ix Low Rider Cart Parts (P/N 800-590) at AllTitanParts and use the exploded diagram to identify the correct OEM replacement.
Titan OEM Parts Assistance
Need Help Identifying Titan 1140ix Low Rider Cart Parts?
Have your Titan 1140ix model, Low Rider Cart assembly number 800-590, diagram reference and existing OEM part number available when requesting assistance.
