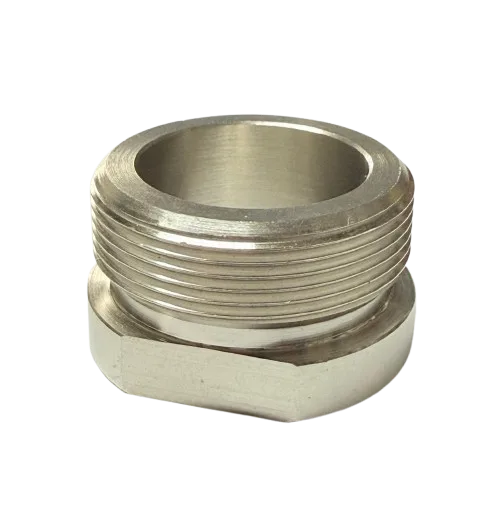

Titan 800-325 Upper Seal Retainer
OEM Titan Fluid Section Component
Titan 800-325 Upper Seal Retainer is a genuine OEM component that holds the upper packing seal in position within the pump cylinder on compatible 840, 1140, Impact, Advantage, Performer, and PowrTex sprayers.
Compatibility Table
A worn or loose upper seal retainer allows the packing to shift, causing fluid leaks and pressure loss. Replacement restores proper seal retention and pump integrity.
Titan Sprayer Fluid Section Seal Component
Titan 800-325 Upper Seal Retainer for 840ix and 1140ix Sprayers
Titan 800-325 is the OEM upper seal retainer specified for the fluid section of compatible Titan sprayer platforms. It threads into the upper housing and holds the upper packing in place against the piston rod, maintaining a fluid-tight seal under high pressure.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM upper seal retainer listed in the fluid section of compatible sprayer parts diagrams. |
| Function | Threads into the upper housing of the fluid section and secures the upper packing in position against the piston rod, preventing fluid bypass and maintaining pump pressure. |
| Replacement Triggers | Fluid leaks at the top of the pump, cracked or damaged retainer, corrosion, or repeated upper packing failure. |
| Industrial Applications | Sprayer fluid section repacking, pump repair, seal replacement, and rental fleet maintenance. |
| Compatible Titan Machines | 840i, 840ix, 1140i, 1140ix, Impact 1640, Advantage 700, Advantage 1100, Performer 1140ix, and PowrTex 1200SF. Listed as the upper seal retainer in the 1140i and fluid section parts diagrams. Confirm fitment using your specific model and revision parts diagram. |
| OEM Part Number | 800-325 Upper Seal Retainer. |
| Related Parts Commonly Serviced Together | Upper packing/seal, lower packing, piston rod, and O-rings. These components are accessed during fluid section repacking. |
| Common Problems Solved | Fluid leakage at the upper end of the fluid section, pressure loss from seal bypass, and accelerated wear of the piston rod and packing. |
| Target Users / Markets | Painting contractors, maintenance crews, rental fleet operators, and repair shops servicing Titan sprayers. |
| OEM and Brand Information | Genuine Titan OEM component documented in manufacturer service procedures and parts diagrams for correct fitment and function. |
| Commercial Benefits | OEM retainer that ensures proper upper packing retention, preventing leaks and extending the service life of the fluid section. |
The 800-325 Upper Seal Retainer is removed with a wrench during fluid section repacking. After servicing the packings and piston rod, thread the retainer back into the upper housing and torque to 25-30 ft. lbs. as specified in the Titan service manual. Inspect the retainer threads and sealing surfaces for damage before installation.
