Titan 1100xc Airless Sprayer Parts & Assembly Diagrams
Find genuine replacement parts for your Titan 1100xc Airless Sprayer at AllTitanParts. Browse dedicated assembly pages to identify components for your repair, compare diagram references, and select the correct part number before ordering.
Start with the assembly you need to service, then match the numbered diagram callout to its parts listing. Checking your sprayer’s model, serial number, and installed components helps you choose the right replacement for your machine.
How to Find the Correct 1100xc Replacement Part
1. Confirm Your Model
Check the identification label and record your model and serial number before comparing parts.
2. Open the Assembly
Choose the assembly page that contains the component you need to inspect or replace.
3. Match the Part Number
Use the diagram callout and associated listing to identify the manufacturer’s part number.
4. Review the Listing
Confirm compatibility, supplied components, quantity, and any replacement-number notes before checkout.
Browse Titan 1100xc Parts by Assembly
Use these assembly links to narrow your search and compare the relevant diagram with your sprayer.
Motor Assembly Parts
Locate the motor assembly diagram and its listed replacement hardware.

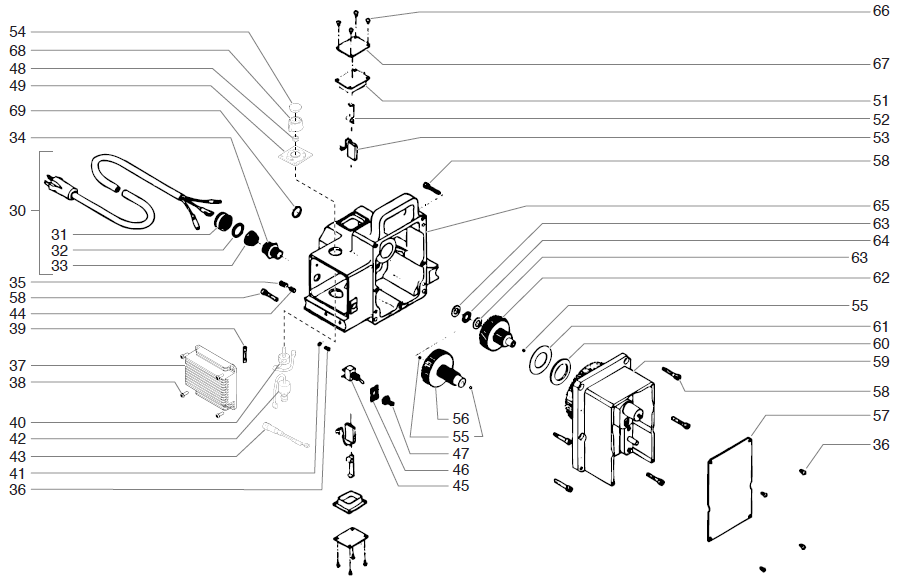

Gear Box Assembly Parts
Check the gear box assembly page when identifying drive and associated control components.

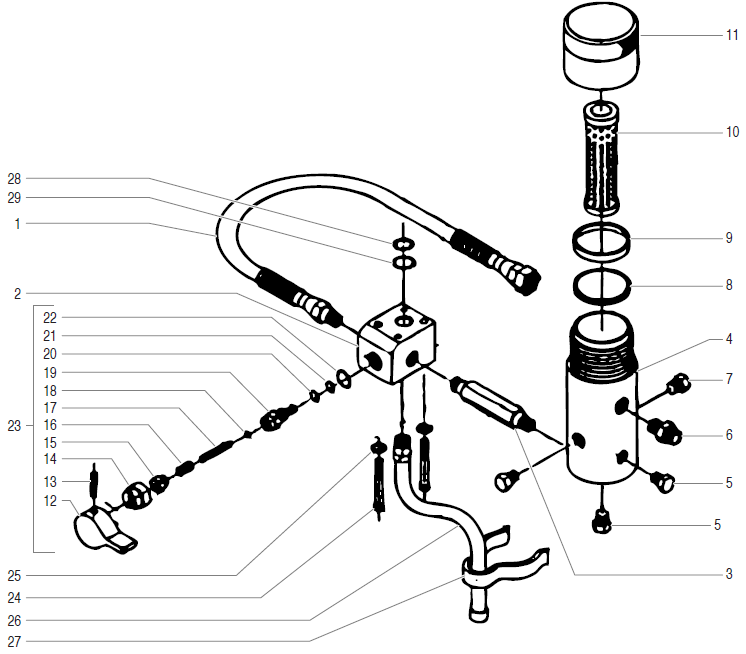

Filter Block Assembly Parts
Browse filter elements, gaskets, fittings, bypass components, and PRIME/SPRAY valve parts.

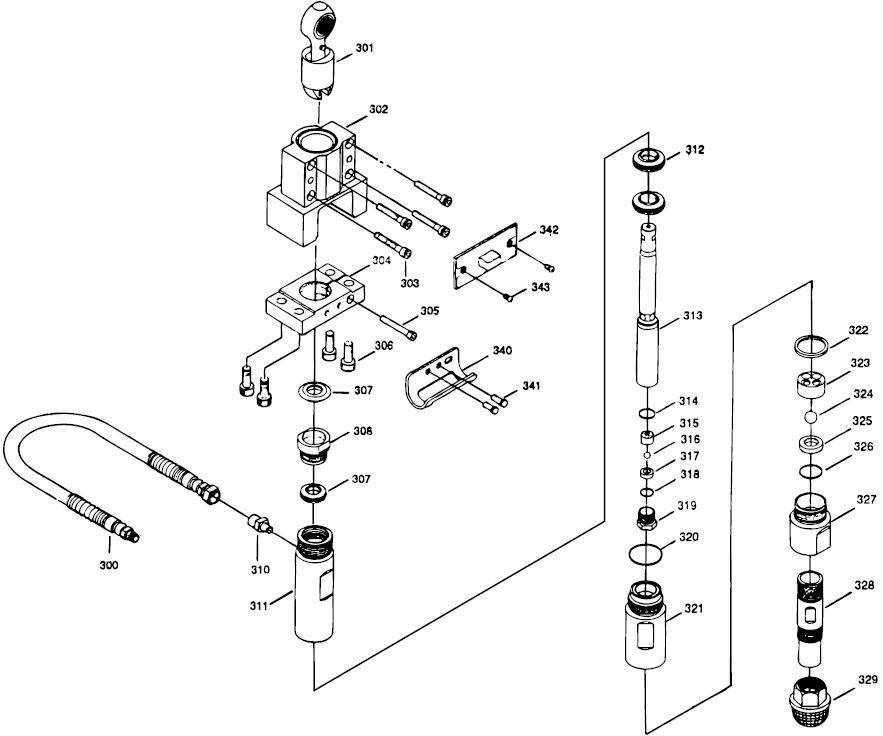

Fluid Section Assembly Parts
Find listed pump service components, including seals, valve balls, seats, housings, and a repacking kit.

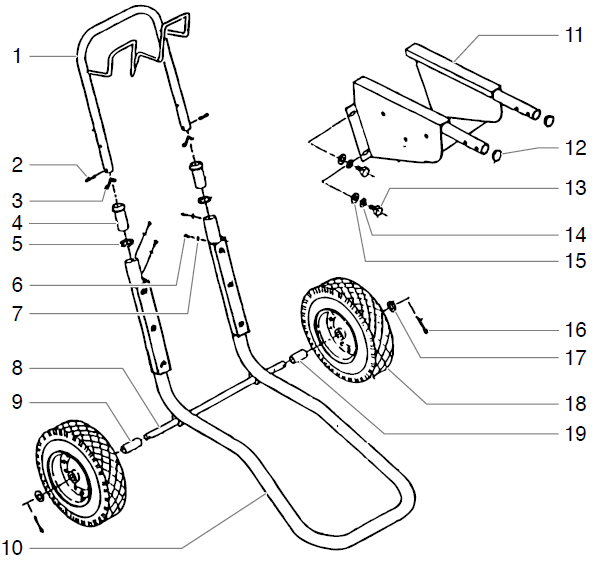

Frame Assembly Parts
Identify frame hardware such as the sleeve handle, roll pin, snap button, washers, and screws.

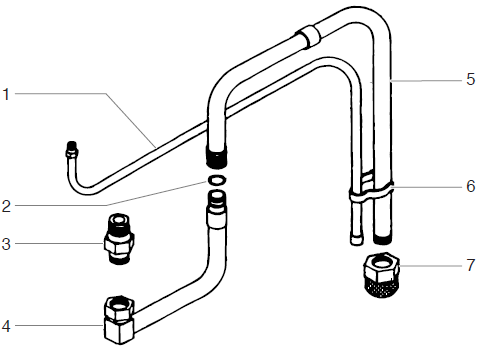

Siphon Assembly Parts
Use the siphon diagram to match the material intake components fitted to your sprayer.
Sprayer Accessories
Explore the listed accessories and check each item’s specifications against your setup.
What to Check Before Ordering
| Part Group | Selection Guidance |
|---|---|
| Fluid section components | Match the installed pump components to the diagram and confirm the contents of any service kit. |
| Filters and filter block parts | Check the filter part number and mesh specification against the sprayer and coating requirements. |
| Motor and gear box parts | Confirm the exact component and applicable electrical or mechanical specifications before replacing it. |
| Frame and siphon parts | Compare mounting positions, connections, and diagram references with your existing equipment. |
| Assemblies and individual items | Read the product description to establish what is included and which components are sold separately. |
Featured Pump Service Part: Titan 762-175 Repacking Kit
The Titan 762-175 Fluid Section Repacking Kit is listed for the 1100XC airless sprayer and appears on its fluid section parts page. The product listing identifies seals, valve balls, and O-rings among the supplied components.
Compare the kit with your installed fluid section before ordering. During servicing, inspect related seats, housings, and other pump components to determine whether additional parts are needed.
Plan Your Titan 1100xc Repair
Build your parts list from the diagram and the results of inspection. A leak, pressure change, or starting problem may have more than one cause, so follow the appropriate troubleshooting procedure before choosing replacement components.
Follow the sprayer manual’s pressure-relief and power-disconnection instructions before inspection or service. Keep a record of the diagram reference, part number, and required quantity for each item you intend to order.
Need Help Matching a 1100xc Part?
Have your sprayer model, serial number, and diagram reference ready. Call AllTitanParts at 713-931-0006 for help confirming the part number before you order.
Call 713-931-0006Frequently Asked Questions
How do I find the correct Titan 1100xc replacement part?
Confirm your sprayer’s model and serial number, open the relevant assembly diagram, and match the numbered callout to the listed part number. Review compatibility before ordering.
Which assembly categories are available for the 1100xc?
The category includes motor, gear box, filter block, fluid section, frame, and siphon assembly parts, plus sprayer accessories.
Is Titan 762-175 listed for the 1100XC?
Yes. The Titan 762-175 Fluid Section Repacking Kit product listing includes the 1100XC among its compatible sprayers. Confirm your installed fluid section and the kit contents before ordering.
Where can I find 1100xc filter and PRIME/SPRAY valve parts?
Open the 1100xc Filter Block Assembly Parts page. Its listings include filter elements, gaskets, bypass components, and PRIME/SPRAY valve parts. Match the required item to your diagram.
Does an assembly diagram mean all pictured parts are included?
No. A diagram shows component locations and references. Check each product listing for supplied contents, required quantities, and parts sold separately.
