Titan 1100xc Airless Sprayer | Motor Assembly Parts
Shop Titan 1100xc Motor Assembly Replacement Parts
Keep your Titan 1100xc Airless Sprayer properly maintained with genuine Titan motor assembly replacement parts. Find the Titan 700-681 Motor Mount Screw, identify its location in the illustrated motor assembly diagram, and order the correct OEM fastening component at AllTitanParts. Repair worn or damaged motor mounting connections with manufacturer-specified replacement hardware.
Assembly Overview
Buy Titan 1100xc Motor Assembly Parts Online
The Titan 1100xc Motor Assembly is part of the sprayer's power and drive system. The electric motor supplies mechanical power to the drive mechanism, which operates the pump's fluid section to deliver coating material under pressure.
Proper motor installation depends on secure mounting hardware, correct component alignment and sound mechanical connections. Damaged or missing fasteners can compromise the mounting arrangement and should be inspected before the sprayer is returned to service.
This AllTitanParts category currently lists the Titan 700-681 Motor Mount Screw. Use the exploded diagram to identify its designated position, confirm your sprayer model and select the correct replacement. Other motor components may require reference to the complete Titan 1100xc service documentation.
OEM Parts Directory
Titan 1100xc Motor Assembly Parts List
The following OEM replacement part is currently listed in the Titan 1100xc Motor Assembly category. Match the diagram reference and part number before ordering.
| Diagram Reference | Titan Part Number | Part Description | Application |
|---|---|---|---|
| 5 | 700-681 | Motor Mount Screw | Fastening hardware for the designated motor mounting location. |
This table reflects the product currently listed for purchase in the category. It is not a complete bill of materials for the entire motor assembly.
Featured OEM Replacement
Titan 700-681 Motor Mount Screw for the 1100xc
OEM Part Number 700-681
Replace Damaged Motor Mounting Hardware
The Titan 700-681 Motor Mount Screw is a genuine replacement fastener listed for the Titan 1100xc Motor Assembly. It is associated with diagram reference 5.
Use the correct manufacturer-specified screw rather than choosing replacement hardware solely by visual similarity. Fastener dimensions, thread engagement and installation requirements are important to the mounting connection.
When Should You Inspect the Motor Mount Screw?
- A motor mounting fastener is missing or visibly damaged.
- The mounting connection shows abnormal movement.
- The screw head or threads appear worn or stripped.
- Motor service requires inspection of the mounting hardware.
- Vibration or unusual noise suggests that a mounting connection needs examination.
Motor System Overview
Understanding the Titan 1100xc Motor and Drive System
Electrical Power
The motor receives electrical power through the sprayer's designated electrical and control system.
Motor Rotation
The motor produces rotational mechanical power for the connected drive mechanism.
Drive Operation
The drive mechanism transfers motor power to the pumping system.
Fluid Delivery
The fluid section draws in coating material and delivers it through the spray system.
Troubleshooting
Titan 1100xc Motor Assembly Troubleshooting Guide
Motor and drive problems can have several causes. Use these symptoms to determine which area may need inspection. A motor mount screw should only be replaced when inspection identifies a problem with that specific component.
| Symptom | Possible Inspection Area | Recommended Action |
|---|---|---|
| Unusual motor vibration | Motor mounting connections and drive components | Stop operation and inspect mounting hardware and the drive system. |
| Loose motor mounting connection | 700-681 screw and mating mounting components | Inspect the fastener and threads. Follow the manufacturer's installation requirements. |
| Motor does not run | Power supply, electrical controls, motor and drive | Follow Titan's electrical troubleshooting instructions or consult a qualified technician. |
| Abnormal mechanical noise | Motor mounting and gearbox or drive components | Inspect the source of the noise before continued operation. |
| Motor runs but sprayer does not pump | Drive mechanism, fluid section and pump connections | Diagnose the drive and fluid section rather than assuming a motor fastener fault. |
Parts Identification
How to Order the Correct Titan 1100xc Motor Assembly Part
Confirm Your Model
Verify that your sprayer is the Titan 1100xc and check its model and serial information.
Review the Motor Diagram
Locate the component on the illustrated Motor Assembly diagram.
Match the Part Number
Confirm diagram reference 5 and OEM part number 700-681.
Order Your Replacement
Select the correct quantity and review the product listing before completing your purchase.
Preventive Maintenance
Maintain Your Titan 1100xc Motor Assembly
Inspect Mounting Hardware
Check motor mounting connections for damaged, missing or loose fasteners.
Monitor Unusual Vibration
Investigate new mechanical noises or abnormal vibration before continued spraying.
Keep Ventilation Areas Clear
Prevent debris and coating buildup from obstructing motor ventilation areas where applicable.
Follow Titan Service Procedures
Use manufacturer-specified inspection, tightening and repair procedures for the motor and drive system.
Compatibility and Fitment
Titan 1100xc Motor Assembly Parts Compatibility
This category is specifically for Titan 1100xc Motor Assembly Parts. The listed Titan 700-681 Motor Mount Screw appears at diagram reference 5.
Although the same OEM fastener may be used in other Titan equipment, compatibility must be verified for each application. Do not substitute a screw with an unverified thread, length, grade or head configuration.
Related Titan Parts
Explore More Titan 1100xc Airless Sprayer Parts
Browse related replacement assemblies for the complete Titan 1100xc model.

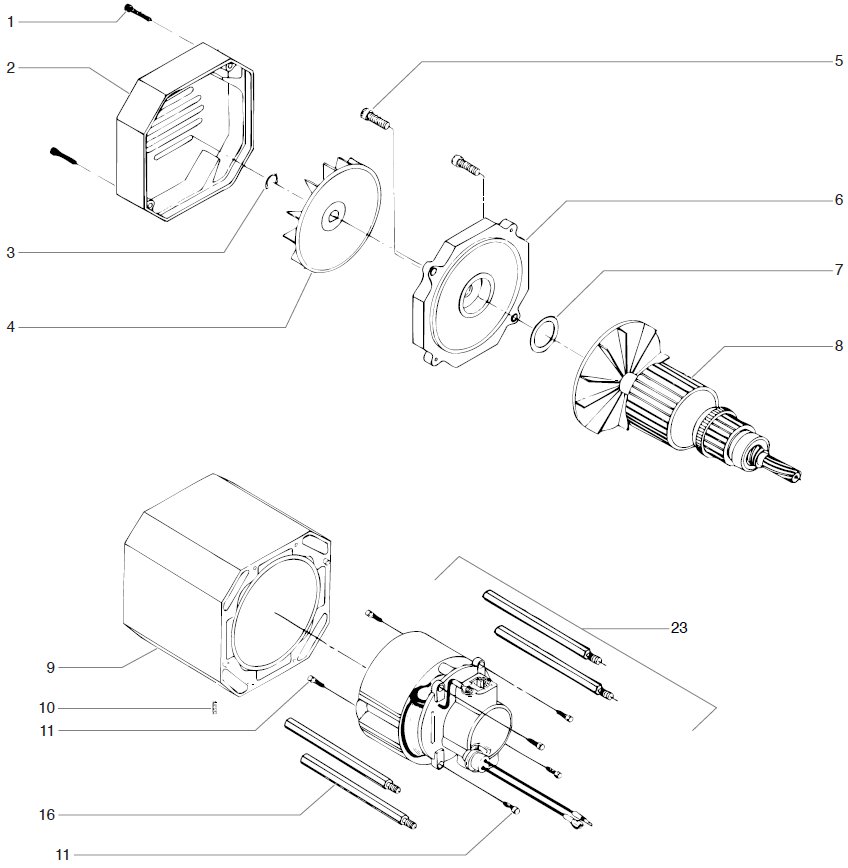

Titan 1100xc Motor Assembly DiagramReturn to the illustrated motor assembly and its available OEM parts.
Motor Assembly Service and Electrical Safety
Turn off and unplug the sprayer and follow Titan's complete pressure-relief procedure before servicing the equipment. Motor and electrical repairs may expose hazardous electrical and mechanical components. Allow hot components to cool and use a qualified service technician for repairs requiring electrical testing or motor disassembly. Follow the applicable Titan service manual.
Titan 1100xc Motor Assembly
Order Titan 1100xc Motor Mounting Parts
Find the genuine Titan 700-681 Motor Mount Screw and review the factory-style exploded diagram. Confirm the correct OEM replacement and shop Titan 1100xc motor assembly parts online at AllTitanParts.
Shop Titan 1100xc Motor PartsFrequently Asked Questions
Titan 1100xc Motor Assembly Parts FAQ
What parts are listed for the Titan 1100xc Motor Assembly?
The current AllTitanParts category lists the Titan 700-681 Motor Mount Screw.
What is Titan part number 700-681?
Titan 700-681 is a genuine OEM Motor Mount Screw listed for the Titan 1100xc Motor Assembly.
What is the diagram reference for the Titan 700-681 screw?
Titan 700-681 appears at diagram reference 5 on the motor assembly category page.
Can loose motor mounting hardware cause vibration?
Loose or damaged motor mounting hardware may contribute to abnormal movement or vibration. Other mechanical problems can produce similar symptoms.
Does Titan 700-681 replace the complete motor?
No. Titan 700-681 is a motor mount screw, not a complete replacement motor.
Can I use an ordinary screw instead of Titan 700-681?
Use the specified OEM fastener. A visually similar screw may have different dimensions or mechanical properties.
What should I check if my Titan 1100xc motor does not run?
Possible inspection areas include the power supply, electrical controls, motor and drive system. Follow the service manual or consult a qualified technician.
Are Titan 1100xc motor parts interchangeable with other models?
Some OEM components may have additional applications, but each part number must be checked against the appropriate manufacturer documentation.
Where can I buy Titan 1100xc Motor Assembly parts?
Shop the Titan 1100xc Motor Assembly Parts category at AllTitanParts and use the illustrated parts diagram to identify the correct replacement.
Parts Identification Assistance
Need Help Finding Titan 1100xc Motor Parts?
Have your Titan sprayer model, serial number and motor assembly diagram reference ready. Contact AllTitanParts for assistance identifying the correct OEM replacement.
713-931-0006
