Titan 1100xc Airless Sprayer | Genuine OEM Frame Parts
Shop Titan 1100xc Frame Assembly Replacement Parts

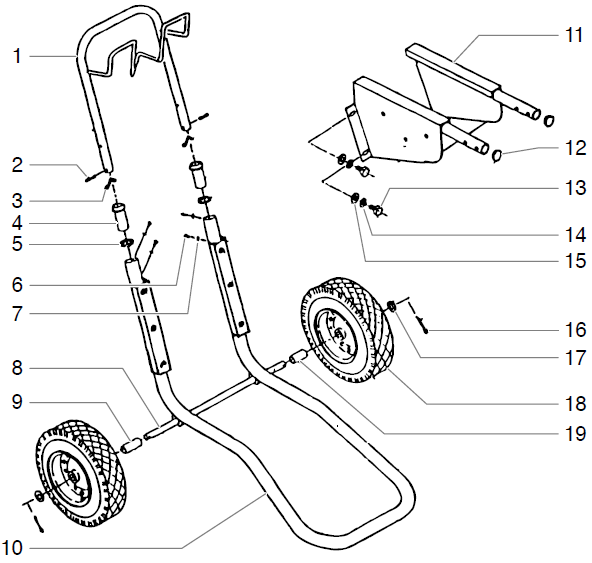

Keep your airless paint sprayer stable, mobile and ready for the next job with genuine Titan 1100xc Frame Assembly Parts. Find OEM replacement wheels, sleeve handles, snap buttons, axle spacers, washers, roll pins, cotter keys and mounting hardware. Browse the illustrated assembly diagram, identify the correct Titan part number and purchase the components you need at AllTitanParts.
Assembly Overview
Buy Titan 1100xc Frame Assembly Parts Online
The Titan 1100xc Frame Assembly provides structural support and mobility for the airless paint sprayer. Its wheels, handle components, axle spacers and retaining hardware help support the machine during transportation, positioning and normal jobsite use.
Frequent transportation across rough surfaces, loading into vehicles and repeated movement between work areas can place stress on frame components. A damaged wheel, worn spacer, loose retaining pin or broken handle component may affect maneuverability or stability.
AllTitanParts offers individually listed OEM frame components so you can replace the required part without automatically purchasing an entire frame assembly. Use the illustrated parts diagram and corresponding OEM part numbers to confirm your selection.
OEM Replacement Parts
Titan 1100xc Frame Assembly Parts List
The following 12 products are listed for the Titan 1100xc Frame Assembly. Match each diagram reference with the correct OEM part number before ordering.
| Diagram | Titan Part Number | Description | Component Type |
|---|---|---|---|
| 2 | 590-508 | Roll Pin | Retaining Hardware |
| 3 | 9841504 | Snap Button | Handle Hardware |
| 4 | 590-504 | Sleeve Handle | Handle Component |
| 5 | 590-506 | Flat Washer | Fastening Hardware |
| 6 | 856-921 | Screw | Mounting Hardware |
| 7 | 856-002 | Lock Washer | Fastening Hardware |
| 9 | 449-120 | Spacer Axle | Axle Hardware |
| 15 | 756-090 | 3/8 Inch Washer | Fastening Hardware |
| 16 | 570-010 | Plated Cotter Key | Retaining Hardware |
| 17 | 0295687 | Wheel Spacer | Wheel Hardware |
| 18 | 670-109 | Wheel | Mobility Component |
| 19 | 449-145 | Short Spacer | Spacing Hardware |
Part 0295687 may also appear as 295687 in product data. Confirm the exact OEM reference and required quantity before purchase. This list represents the products offered in the category, not every component of the complete frame.
Featured Replacement Component
Titan 670-109 Wheel for the 1100xc Airless Sprayer
Restore Sprayer Mobility
The Titan 670-109 Wheel is listed at diagram reference 18 for the Titan 1100xc Frame Assembly. A properly installed wheel helps the sprayer move between work areas while supporting its designated load.
Inspect the wheel for cracking, excessive wear, damage around its hub and abnormal movement. Check the associated axle hardware before installing a replacement.
Inspect Related Wheel Hardware
When replacing the wheel, inspect the components that maintain wheel position and retention.
- 449-120: Axle Spacer
- 0295687: Wheel Spacer
- 449-145: Short Spacer
- 570-010: Plated Cotter Key
- 756-090: 3/8 Inch Washer
Shop by Component
Find Titan 1100xc Frame Repair Components
Sleeve Handle
Titan 590-504 Sleeve Handle provides a designated gripping component for the sprayer frame. Replace a damaged handle sleeve to help maintain comfortable, controlled handling.
OEM Part: 590-504Snap Button
Titan 9841504 Snap Button is a spring-loaded retaining component. Inspect its movement and engagement when checking the associated frame mechanism.
OEM Part: 9841504Axle and Wheel Spacers
Shop Titan 449-120 Axle Spacer, 0295687 Wheel Spacer and 449-145 Short Spacer. These parts maintain designated spacing and positioning within the frame assembly.
OEM Parts: 449-120, 0295687, 449-145Roll Pin and Cotter Key
Titan 590-508 Roll Pin and 570-010 Plated Cotter Key are retaining components. Replace damaged or missing hardware with the specified OEM part.
OEM Parts: 590-508, 570-010Washers and Lock Washers
Find Titan 590-506 Flat Washer, 856-002 Lock Washer and 756-090 3/8 Inch Washer. Match each washer to the correct diagram position.
OEM Parts: 590-506, 856-002, 756-090Frame Mounting Screw
Titan 856-921 Screw is listed at diagram reference 6. Use the correct fastener rather than substituting an unverified screw with different dimensions or thread specifications.
OEM Part: 856-921Troubleshooting Guide
Common Titan 1100xc Frame Assembly Problems
Use the following symptoms to identify components that may need inspection. Confirm the cause of each problem before purchasing replacement parts.
| Problem | Parts to Inspect | Recommended Action |
|---|---|---|
| Wheel is damaged or difficult to roll | 670-109 wheel and axle hardware | Inspect the wheel, hub, spacers and axle for damage or binding. |
| Excessive side-to-side wheel movement | 449-120, 0295687, 449-145 and retaining hardware | Verify the required spacer positions and check for missing components. |
| Handle grip is damaged | 590-504 sleeve handle | Inspect the sleeve and replace it if worn or damaged. |
| Handle mechanism does not retain properly | 9841504 snap button and 590-508 roll pin | Check engagement, alignment and the condition of retaining components. |
| Wheel retaining hardware is missing | 570-010 cotter key and 756-090 washer | Do not transport the sprayer until the correct retaining hardware is installed. |
| Loose frame connection | 856-921 screw, 856-002 lock washer and 590-506 washer | Inspect the fastening points and follow the manufacturer's assembly specifications. |
OEM Parts Identification
How to Order the Correct Titan 1100xc Frame Part
Confirm Your Sprayer
Verify the Titan 1100xc model and serial number.
Review the Diagram
Locate the required wheel, handle, spacer or fastener in the exploded frame view.
Match the OEM Number
Compare the illustrated reference with the exact Titan part number.
Complete Your Order
Select the correct quantity and purchase your replacement online.
Preventive Maintenance
Maintain Your Titan 1100xc Frame and Wheels
Inspect Wheels Regularly
Check for cracks, uneven wear, hub damage and restricted rotation before moving the sprayer.
Check Retaining Hardware
Look for missing cotter keys, loose fasteners and damaged roll pins or washers.
Examine Handle Components
Check the sleeve handle and snap button for wear, damage or improper engagement.
Keep the Frame Clean
Remove dried paint and debris from accessible frame surfaces and wheel areas after use.
Fitment and Compatibility
Titan 1100xc Frame Assembly Parts Compatibility
This category is organized for the Titan 1100xc Airless Sprayer Frame Assembly. The listed components correspond to individual positions in the illustrated frame assembly.
Some parts, including Titan 670-109 Wheel, are also used on other Titan sprayer models. However, compatibility with another model does not establish that every component in this category fits that model.
Always verify the exact OEM part number, sprayer configuration and applicable parts diagram before purchasing. Different spacers, washers and retaining components should not be substituted solely because they look similar.
Related Titan 1100xc Parts
Explore More Titan 1100xc Replacement Assemblies
Find replacement components for the Titan 1100xc motor assembly.
Gear Box Assembly PartsExplore gearbox-related hardware and control components.
Fluid Section Assembly PartsShop pump seals, valve components and fluid-section repair parts.
Filter Block Assembly PartsFind OEM filters, gaskets, bypass valves and fluid fittings.
Frame Assembly Service and Transportation Safety
Turn off the sprayer, disconnect power and follow Titan's pressure-relief instructions before performing maintenance. Position the machine on a stable surface and secure it against rolling before removing wheels or axle hardware. Do not transport the sprayer with missing retaining components, damaged wheels or an unstable frame. Follow the applicable Titan service manual.
Titan 1100xc OEM Frame Replacement Parts
Order Titan 1100xc Frame Assembly Parts Today
Shop genuine Titan wheels, handles, axle spacers, retaining pins, washers and mounting hardware. Use the illustrated diagram to find the correct OEM part and order online.
Shop Titan 1100xc Frame PartsFrequently Asked Questions
Titan 1100xc Frame Assembly Parts FAQ
What parts are included in the Titan 1100xc Frame Assembly category?
The category lists 12 OEM replacement products, including a wheel, sleeve handle, snap button, axle spacers, wheel spacer, washers, screw, roll pin and cotter key.
What is the Titan 1100xc replacement wheel part number?
Titan 670-109 is the wheel listed at diagram reference 18 for the Titan 1100xc Frame Assembly.
What is the Titan 1100xc sleeve handle part number?
Titan 590-504 is the Sleeve Handle listed at diagram reference 4.
Which snap button is listed for the Titan 1100xc frame?
Titan 9841504 is the Snap Button listed at diagram reference 3.
What is the Titan 1100xc axle spacer part number?
Titan 449-120 is the Axle Spacer listed at diagram reference 9.
What is Titan part 0295687?
Titan 0295687 is a Wheel Spacer listed at diagram reference 17. The product data may also display the number as 295687.
What is Titan 449-145 used for?
Titan 449-145 is a Short Spacer listed at diagram reference 19. It maintains specified spacing at its designated assembly position.
Which cotter key is listed for the Titan 1100xc frame?
Titan 570-010 is the Plated Cotter Key listed at diagram reference 16.
Can I replace only a damaged wheel or handle?
Yes. The category offers individual wheel, handle and hardware components. Inspect related parts and confirm the correct OEM replacement before ordering.
Where can I buy genuine Titan 1100xc Frame Assembly parts?
Shop Titan 1100xc Frame Assembly Parts at AllTitanParts. Use the exploded diagram and OEM part numbers to select the replacement components you need.
OEM Parts Identification Assistance
Need Help Finding Titan 1100xc Frame Parts?
Have your sprayer model, serial number and frame assembly diagram reference ready when contacting AllTitanParts for assistance confirming the correct OEM replacement.
