Restore reliable material intake and keep your airless paint sprayer ready for demanding projects with genuine Titan 1100xc Siphon Assembly Parts. Shop OEM siphon tube adapters, inlet screens, O-rings, hose assemblies, bypass components and retaining clamps. Identify the correct replacement using the illustrated parts diagram and order directly from AllTitanParts.
Assembly Overview
Buy Titan 1100xc Siphon Assembly Parts Online
The Titan 1100xc Siphon Assembly is part of the sprayer's material supply system. Its intake components allow coating material to travel from the supply container toward the pump. Proper connections and seals help maintain the fluid path needed for effective priming and spraying.
A damaged siphon connection, clogged inlet screen, deteriorated O-ring or loose return hose can interfere with sprayer operation. These conditions may contribute to difficult priming, inconsistent material intake, fluid leakage or interrupted spraying.
AllTitanParts provides individual OEM replacement components for the Titan 1100xc Siphon Assembly. Instead of replacing unrelated parts, use the exploded diagram to identify the exact component that requires service.
OEM Parts Directory
Titan 1100xc Siphon Assembly Parts List

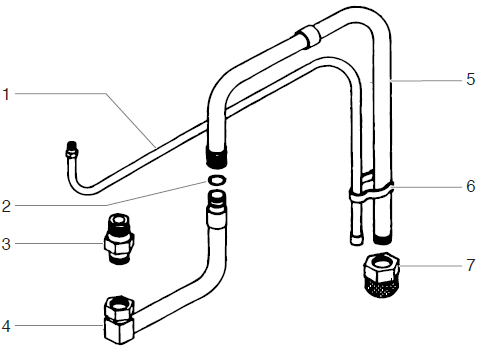

Browse the six replacement products listed for the Titan 1100xc Siphon Assembly. Each part corresponds to a numbered position in the illustrated assembly diagram.
| Diagram | Titan Part Number | OEM Description | Component Category |
|---|---|---|---|
| 1 | 783-036 | Hose Assembly | Fluid Connection |
| 2 | 710-196 | O-Ring | Sealing Component |
| 3 | 710-081 | Siphon Tube Adapter | Intake Connection |
| 5 | 710-218 | Siphon & Bypass 55 Gal | Siphon and Bypass Assembly |
| 6 | 730-334 | Hose Tie Clamp | Hose Retaining Component |
| 7 | 710-046 | Inlet Screen | Material Intake Filtration |
Featured Replacement
Titan 710-218 Siphon and Bypass 55 Gallon Assembly
Support Material Intake and Return Flow
The Titan 710-218 Siphon & Bypass 55 Gal is a genuine Titan replacement assembly listed at diagram reference 5.
It is intended for the designated 55-gallon siphon and bypass configuration. Confirm the required setup before ordering, particularly if your sprayer uses a different material container.
Components Worth Inspecting
When servicing the siphon system, inspect the related connection and filtration components.
- 710-081: Siphon Tube Adapter
- 710-196: O-Ring
- 710-046: Inlet Screen
- 730-334: Hose Tie Clamp
Shop by Component
Find the Right Titan 1100xc Siphon Replacement Part
Titan 783-036 Hose Assembly
This genuine Titan hose assembly is listed at diagram reference 1. Inspect the hose for abrasion, damaged fittings and other signs of deterioration. Replace damaged pressure-rated hoses with the specified component.
OEM Part: 783-036Titan 710-196 O-Ring
The Titan 710-196 O-Ring provides a seal at its designated assembly location. Inspect for flattening, cracking or damage when servicing the connection. Confirm the exact OEM size and material.
OEM Part: 710-196Titan 710-081 Siphon Tube Adapter
This adapter connects the siphon tube at its specified intake-system location. Check the connection and sealing surfaces if air leaks or poor priming are suspected.
OEM Part: 710-081Titan 710-218 Siphon and Bypass Assembly
The Titan 710-218 Siphon & Bypass 55 Gal is listed for the 55-gallon configuration. Match your sprayer's siphon arrangement before purchase.
OEM Part: 710-218Titan 730-334 Hose Tie Clamp
The Titan 730-334 Hose Tie Clamp helps secure the designated return or bypass hose. Inspect the clamp for damage and verify proper hose retention.
OEM Part: 730-334Titan 710-046 Inlet Screen
The Titan 710-046 is a 10-mesh stainless steel inlet screen. It helps capture larger debris before material enters the pump. Clean or replace it when required.
OEM Part: 710-046Material Intake System
How the Titan 1100xc Siphon Assembly Works
Material Pickup
The siphon tube draws coating material from the supply container as the pump operates.
Inlet Screening
The inlet screen helps prevent larger particles from entering the pump intake.
Sealed Connections
Properly fitted adapters and seals help maintain the material supply path and reduce air entry.
Bypass Return
The bypass arrangement supports material return during the designated priming procedure.
Troubleshooting
Common Titan 1100xc Siphon Assembly Problems
Problems with material intake may originate in the siphon assembly, the pump or another fluid-system component. Use these checks to guide diagnosis before ordering.
| Symptom | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | 710-046 inlet screen, 710-081 adapter and pump inlet | Check for intake blockage, loose connections and possible air entry. |
| Intermittent material pickup | 710-218 siphon assembly, 710-196 O-ring | Check material level, tube position and connection sealing. |
| Restricted intake flow | 710-046 inlet screen | Inspect for debris and clean or replace the screen as directed. |
| Leak at siphon connection | 710-196 O-ring and 710-081 adapter | Inspect the seal, adapter and mating surfaces for damage. |
| Return hose becomes loose | 730-334 hose tie clamp | Check the clamp and hose condition before operating the sprayer. |
| Visible hose damage | 783-036 hose assembly | Stop using the damaged hose and install the specified replacement. |
OEM Parts Buying Guide
How to Choose the Correct Titan 1100xc Siphon Part
Confirm Your Model
Verify your Titan 1100xc model and relevant serial information.
Locate the Diagram Item
Identify the required component in the siphon assembly diagram.
Match the OEM Number
Compare the illustrated reference and part number with the product listing.
Order at AllTitanParts
Select the correct component and quantity, then complete your order.
Preventive Maintenance
Maintain Your Titan 1100xc Siphon Assembly
Clean the Inlet Screen
Inspect the Titan 710-046 screen for accumulated coating particles and clean it according to Titan's instructions.
Inspect Siphon Seals
Examine the 710-196 O-ring and related connections for wear, distortion or leakage.
Check Hoses and Clamps
Look for hose damage, loose fittings and improperly secured return connections.
Flush After Each Job
Follow the manufacturer's flushing and storage procedures to reduce coating buildup inside the intake system.
Compatibility and Fitment
Titan 1100xc Siphon Assembly Parts Compatibility
The components listed in this category correspond to the Titan 1100xc Siphon Assembly. Confirm the diagram reference and OEM part number before purchasing.
The Titan 710-218 Siphon & Bypass assembly is identified as a 55-gallon configuration. Check your existing siphon setup to ensure it matches the replacement.
Individual components may be used in other Titan equipment, but shared part numbers should be verified against the applicable manufacturer's parts documentation.
Siphon Assembly Service Safety
Turn off the sprayer, disconnect its power source and follow Titan's complete pressure-relief procedure before servicing the siphon system. Never disconnect a hose or fitting while pressurized. Use compatible replacement parts and follow the applicable Titan operating and service manual.
Genuine Titan 1100xc Replacement Parts
Order Titan 1100xc Siphon Assembly Parts Today
Shop OEM siphon assemblies, adapters, inlet screens, O-rings, hoses and retaining clamps. Find the exact part you need using the illustrated diagram at AllTitanParts.
Shop Titan 1100xc Siphon PartsFrequently Asked Questions
Titan 1100xc Siphon Assembly Parts FAQ
What does the Titan 1100xc Siphon Assembly do?
The siphon assembly supplies coating material from the container to the sprayer's pump intake. Related bypass components support the priming and return-flow arrangement.
How many parts are listed for the Titan 1100xc Siphon Assembly?
AllTitanParts lists six replacement products for this assembly, including a hose assembly, O-ring, adapter, siphon and bypass assembly, clamp and inlet screen.
What is the Titan 1100xc siphon tube adapter part number?
Titan 710-081 is the Siphon Tube Adapter listed at diagram reference 3.
What is the Titan 710-218 part?
Titan 710-218 is the Siphon & Bypass 55 Gal assembly listed at diagram reference 5.
What is the Titan 1100xc inlet screen part number?
Titan 710-046 is the 10-mesh stainless steel Inlet Screen listed at diagram reference 7.
What O-ring is listed for the siphon assembly?
Titan 710-196 is the O-Ring listed at diagram reference 2. Confirm its location and specifications before ordering.
Which hose assembly is listed for the Titan 1100xc siphon system?
Titan 783-036 is the Hose Assembly listed at diagram reference 1.
What is the Titan 730-334 part?
Titan 730-334 is the Hose Tie Clamp used to retain the designated hose connection.
Can a clogged inlet screen prevent the sprayer from priming?
A clogged inlet screen can restrict material flow and contribute to priming difficulties. Air leaks, inlet valve problems and other pump faults can cause similar symptoms.
Where can I buy genuine Titan 1100xc Siphon Assembly parts?
Shop genuine Titan 1100xc Siphon Assembly Parts at AllTitanParts. Use the exploded parts diagram to confirm the correct OEM replacement before ordering.
