Titan 1100xc | Gear Box Assembly | Genuine OEM Parts
Shop Titan 1100xc Gear Box Assembly Replacement Parts
Find the right Titan 1100xc Gear Box Assembly Parts for your airless paint sprayer at AllTitanParts. Shop genuine Titan pressure-control components, fuses, toggle switches, thrust washers, mounting plates, electrical hardware and related repair parts. Browse the illustrated assembly diagram, identify the correct OEM part number and order replacement components with confidence.
Assembly Overview
Buy Titan 1100xc Gear Box Assembly Parts Online
The Titan 1100xc Gear Box Assembly is associated with the sprayer's motor-driven pumping system and related operating controls. The gearbox and drive mechanism transmit mechanical power to the pump, while associated electrical and pressure-control components help regulate sprayer operation.
Maintaining these systems requires accurate replacement part identification. A damaged pressure-control knob, faulty switch, worn thrust washer or compromised electrical connection may require individual attention. Using the correct OEM part number helps avoid unnecessary replacement of unrelated components.

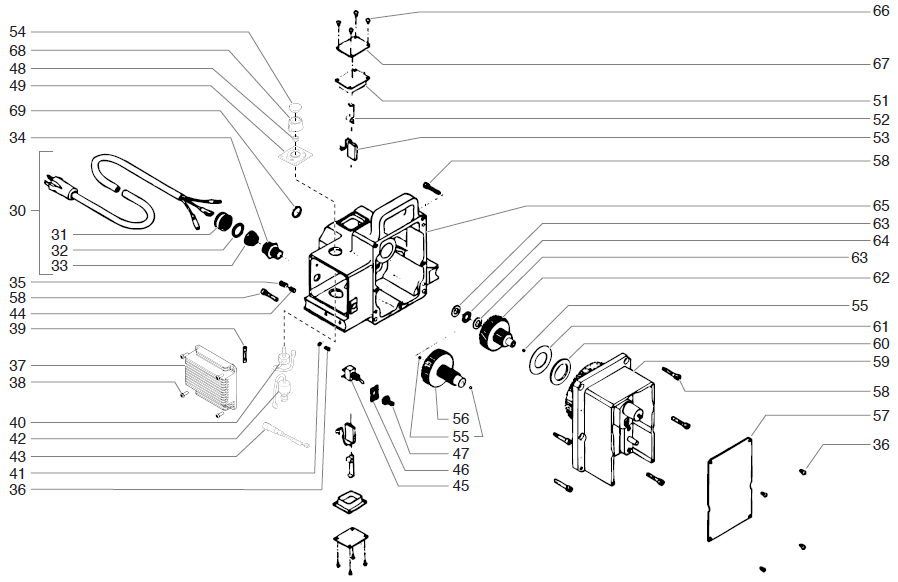

This AllTitanParts category includes 12 listed replacement products associated with the illustrated Gear Box Assembly. Use the diagram callouts, part descriptions and manufacturer service information to identify the correct component for your Titan 1100xc Airless Sprayer.
OEM Parts Directory
Titan 1100xc Gear Box Assembly Parts List
The following replacement parts are listed in this category. Match each OEM part number to the appropriate diagram reference before purchasing.
| Diagram Reference | Titan Part Number | Part Description | Component Category |
|---|---|---|---|
| 39 | 700-720 | Fuse | Electrical Protection |
| 39 | 710-050 | 20 AMP Fuse | Electrical Protection |
| 40 | 700-158 | Potentiometer Assembly, replaces 507973 | Pressure Control |
| 45 | 700-646 | Toggle Switch | Electrical Control |
| 46 | 700-775 | Plate | Mounting Hardware |
| 48 | 700-176 | Nut with Seal | Fastening and Sealing |
| 54 | 700-175 | Potentiometer Cap, replaces 507748 | Pressure Control Hardware |
| 61 | 700-680 | Thrust Washer | Mechanical Hardware |
| 67 | 702-053 | Plate | Mounting Hardware |
| 68 | 700-159 | Pressure Control Knob, replaces 507740 | Pressure Adjustment |
| Consult diagram | 700-148 | Potentiometer Mount | Control Mounting |
| Consult diagram | 765-063 | Strain Relief | Electrical Cable Protection |
The two fuses share diagram reference 39 in the current online listing. Confirm the required fuse rating and exact part number using the applicable Titan service documentation. This table does not represent every component in the complete gearbox.
Shop by Component
Explore Titan 1100xc Gear Box Replacement Components
Pressure Control Potentiometer
The Titan 700-158 Potentiometer Assembly supports the sprayer's adjustable pressure-control system. It is listed as a replacement for Titan 507973. Check the control assembly and electrical connections when diagnosing pressure adjustment problems.
OEM Part: 700-158Pressure Control Knob
Replace a damaged or missing adjustment knob with Titan 700-159. The product listing identifies this part as replacing Titan 507740.
OEM Part: 700-159Potentiometer Cap and Mount
The Titan 700-175 Potentiometer Cap replaces Titan 507748, while the Titan 700-148 Potentiometer Mount provides designated mounting support. Verify which component requires replacement.
OEM Parts: 700-175 and 700-148Electrical Fuses
The category lists Titan 700-720 Fuse and Titan 710-050 20 AMP Fuse. These are distinct products. Confirm the specified fuse rating before ordering or installing a replacement.
OEM Parts: 700-720 and 710-050Toggle Switch
The Titan 700-646 Toggle Switch is an electrical control component. If the sprayer's switching operation is abnormal, have the circuit and switch diagnosed before replacement.
OEM Part: 700-646Thrust Washer
The Titan 700-680 Thrust Washer is a mechanical component used to accommodate axial loading at its designated assembly position. Inspect related surfaces when servicing.
OEM Part: 700-680Mounting Plates and Sealed Nut
Shop Titan 700-775 Plate, 702-053 Plate and 700-176 Nut with Seal. Each component serves a specified mounting or fastening position.
OEM Parts: 700-775, 702-053, 700-176Electrical Strain Relief
The Titan 765-063 Strain Relief helps protect a designated electrical cable entry or connection against mechanical strain. Replace damaged components according to the service manual.
OEM Part: 765-063System Operation
How the Titan 1100xc Gear Box and Control System Work
Pressure Selection
The operator selects the desired pressure using the sprayer's adjustment control.
Electrical Control
Electrical controls regulate motor operation according to the sprayer's design.
Mechanical Power Transfer
The motor and gearbox transfer mechanical power to the pumping mechanism.
Pump Operation
The fluid section pressurizes coating material for delivery through the spray system.
Troubleshooting
Titan 1100xc Gear Box Assembly Troubleshooting
Use these common symptoms to help identify which system may need inspection. The listed parts are possible inspection areas, not guaranteed solutions.
| Symptom | Possible Inspection Area | Recommended Action |
|---|---|---|
| Pressure control does not adjust normally | 700-158 potentiometer, 700-159 knob and control circuit | Inspect the control components and follow Titan's electrical diagnostic procedure. |
| Sprayer will not power on | Power supply, fuses, toggle switch and electrical connections | Have the circuit checked and confirm the required fuse specification. |
| Pressure knob is broken or missing | 700-159 pressure control knob | Replace the damaged control component after verifying fitment. |
| Unusual mechanical noise | Gearbox, thrust washer and drive components | Stop operation and inspect the mechanical drive before further use. |
| Loose or damaged control mounting | 700-148 mount, 700-775 plate, 702-053 plate and 700-176 nut | Inspect the specified mounting connections and hardware. |
| Electrical cable entry is damaged | 765-063 strain relief | Have damaged cable protection and wiring inspected by a qualified technician. |
Parts Identification Guide
How to Order the Correct Titan 1100xc Gear Box Part
Confirm Your Model
Verify your Titan 1100xc sprayer model and serial information.
Check the Parts Diagram
Locate the component on the Gear Box Assembly illustration.
Match the OEM Number
Compare the diagram callout with the product part number. Check superseded numbers carefully.
Purchase Your Replacement
Select the correct part and quantity, then complete your order through AllTitanParts.
Preventive Maintenance
Maintain Your Titan 1100xc Gear Box and Control Components
Inspect Pressure Controls
Check the adjustment knob for damage or abnormal operation before spraying.
Monitor Mechanical Noise
Investigate unusual gearbox noise or vibration instead of continuing operation.
Protect Electrical Components
Keep electrical housings, switches and cable entries protected from moisture and coating contamination.
Use Specified Service Parts
Replace damaged components with the correct OEM parts and follow the manufacturer's repair procedures.
Compatibility and Fitment
Titan 1100xc Gear Box Assembly Parts Compatibility
This category is intended for Titan 1100xc Gear Box Assembly Parts. The product listings identify individual OEM components associated with the illustrated assembly.
Confirm each replacement against the correct model, diagram and part number. The listed replacement relationships include 700-158 replacing 507973, 700-175 replacing 507748, and 700-159 replacing 507740.
The presence of two fuse products in the category does not establish that they are interchangeable. Always use the fuse rating and specification required by the applicable Titan manual.
Related Sprayer Parts
Explore More Titan 1100xc Airless Sprayer Parts
Shop motor mounting hardware and review the motor assembly diagram.
Titan 1100xc Gear Box Parts DiagramReturn to the current illustrated assembly and available OEM components.
Gear Box and Electrical Service Safety
Turn off and unplug the sprayer and follow Titan's complete pressure-relief procedure before servicing equipment. Electrical circuits, motor components and moving drive mechanisms can present serious hazards. Never bypass a fuse, install an unapproved fuse rating or perform electrical repairs without appropriate training. Follow the applicable Titan service manual.
Titan 1100xc OEM Replacement Parts
Order Titan 1100xc Gear Box Assembly Parts
Shop genuine Titan pressure-control components, fuses, switches, thrust washers and mounting hardware. Match the correct part number to your exploded assembly diagram and purchase your replacement online.
Shop Titan 1100xc Gear Box PartsFrequently Asked Questions
Titan 1100xc Gear Box Assembly Parts FAQ
What parts are listed for the Titan 1100xc Gear Box Assembly?
The category lists 12 products, including fuses, pressure-control components, a toggle switch, thrust washer, mounting plates, sealed nut and electrical strain relief.
What is the Titan 1100xc potentiometer part number?
Titan 700-158 is the listed Potentiometer Assembly and replaces Titan 507973.
Which pressure control knob fits this assembly?
Titan 700-159 is the listed Pressure Control Knob, replacing Titan 507740.
What is Titan part 700-175?
Titan 700-175 is a Potentiometer Cap, listed as replacing Titan 507748.
Are Titan 700-720 and 710-050 fuses interchangeable?
Do not assume interchangeability. Titan 710-050 is identified as a 20 AMP Fuse. Verify the required fuse specification in the applicable Titan documentation.
What is the Titan 1100xc toggle switch part number?
Titan 700-646 is the Toggle Switch listed at diagram reference 45.
What is Titan 700-680 used for?
Titan 700-680 is a Thrust Washer, listed at diagram reference 61. It serves a mechanical load-bearing function at its designated position.
What is the Titan 765-063 Strain Relief?
Titan 765-063 is an electrical cable protection component designed for its specified installation point.
Can a faulty pressure control cause inconsistent spraying?
A malfunctioning pressure-control system may contribute to abnormal spray pressure. Other pump, filter and fluid-system problems can produce similar symptoms. Diagnose the cause before replacing parts.
Where can I buy Titan 1100xc Gear Box Assembly parts?
Browse the Titan 1100xc Gear Box Assembly Parts category at AllTitanParts and use the illustrated diagram to select the correct OEM replacement.
Parts Identification Assistance
Need Help Finding Titan 1100xc Gear Box Parts?
Have your sprayer model, serial number and assembly diagram reference ready. Contact AllTitanParts for assistance confirming the correct replacement part before ordering.
