Titan 340 Fluid Section Assembly Parts
Shop Titan 340 Fluid Section Assembly Parts for the Titan 340 International airless sprayer. Find piston components, seals, pump housings and valve parts by diagram reference and Titan number to select the correct replacements for pump maintenance and repair.
Genuine Titan OEM • 340 International • Pump Service • Diagram-Based Selection
Identify the Correct Fluid Section Component
The fluid section moves coating through the pump using a reciprocating piston, seals and inlet and outlet valves. Identify the affected repair area before selecting individual service components or a replacement assembly.
- Confirm the machine: Identify your Titan 340 International configuration.

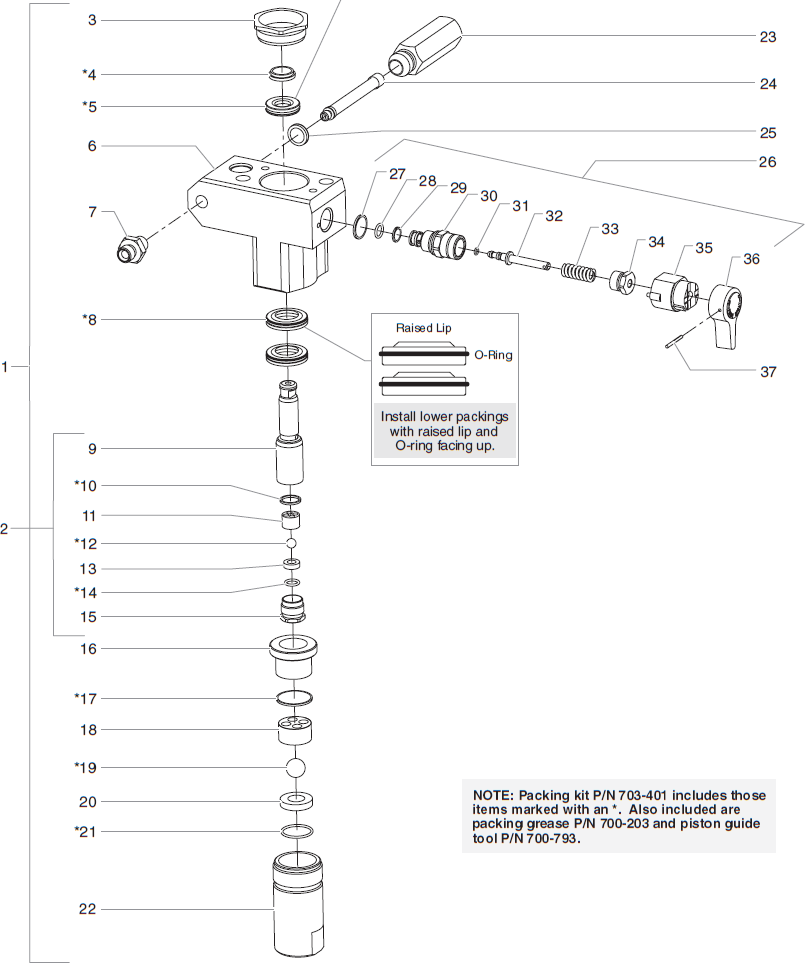

- Locate the component: Match its position to the fluid-section diagram.
- Verify the replacement: Confirm the exact Titan number, quantity and package contents.
Key Titan 340 Fluid Section Parts
Use these component references when planning pump, piston and valve service. Follow the complete diagram for surrounding seals, retainers and associated hardware.
Plan Your Titan 340 Pump Repair
Piston and guiding surfaces: Inspect the rod, guide and bushing for damage or abnormal wear. New seals will not repair a scored mating surface.
Seals: Select the specified upper or lower sealing component for the diagnosed repair. Check installation orientation and use the manufacturer's prescribed tools and procedure.
Valve components: Inspect inlet and outlet balls, seats and cages for contamination or wear. Clean and assess mating components before deciding which replacements are needed.
Housings and assemblies: Check the pump block and foot valve housing during inspection. Compare the required repair with the supplied contents of a replacement assembly before purchasing separate components.
Confirm Fitment and Diagnose Before Ordering
Difficulty priming, leakage and reduced pressure can have several causes. Inspect the coating supply, suction connections, filtration and spray tip alongside the pump. Diagnose the fault before selecting fluid-section parts.
This category belongs to the Titan 340 International breakdown. Match the exact machine and installed fluid-section version to the replacement number. Follow the manufacturer's pressure-relief, power-disconnection and repair procedures before service.
Explore Related Titan 340 Assemblies
- Titan 340 International Parts Hub for choosing the appropriate repair section.
- Titan 340 Main Assembly Parts for machine-level assembly identification.
- Titan 340 Suction Set Assembly Parts for intake and return-path components.
- Titan 340 Gear Box Assembly Parts for mechanical drive component identification.
Titan 340 Fluid Section Assembly FAQ
How do I identify the correct fluid section part?
Confirm the Titan 340 International configuration and installed pump version, then match the diagram reference to the exact Titan number.
Can I replace individual pump components?
The breakdown identifies piston, seal, valve and housing components separately. Select replacements according to the diagnosed fault and condition of the surrounding parts.
Will new seals repair a damaged piston rod?
No. Inspect the rod and mating surfaces and replace damaged components as directed by the service procedure.
Does a replacement assembly include every part shown?
Check the specific product's supplied contents. The diagram shows component relationships and does not define the contents of each assembly package.
Does poor pressure always mean the pump needs replacement?
No. Suction leaks, restrictions, tip wear and valve problems can also affect pressure. Diagnose the system before ordering a pump assembly.
Need Help Matching Your Titan 340 Pump Part?
Have your machine identification, diagram reference and existing part number ready for help selecting the correct fluid-section component.
