GENUINE TITAN OEM • TITAN 340 INTERNATIONAL
Titan 340 Suction Set Assembly Parts
Shop Titan 340 Suction Set Assembly Parts for the Titan 340 International airless sprayer. Identify siphon hoses, return hoses, O-rings, fittings, clips and inlet screens by diagram reference and Titan number to choose the correct components for material-intake service.
Genuine Titan OEM • 340 International • Material Intake • Diagram-Based Ordering
Find the Correct Suction Set Component
The suction path supplies coating to the pump, while the return hose provides the return path during the prescribed priming and circulation procedures. Inspect both paths and their connections when planning service. Match seals and retaining components to their exact positions in the assembly.
- Confirm your sprayer: Identify the Titan 340 International configuration.
- Locate the component: Match the hose, fitting, seal or clip to its diagram callout.
- Verify the order: Confirm the Titan number, required quantity and supplied contents.

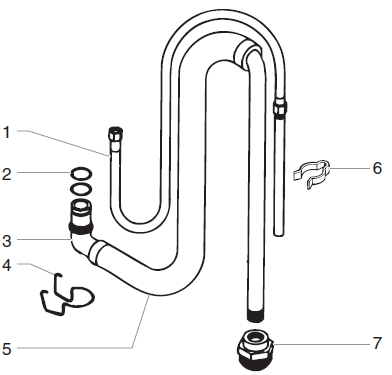

Titan 340 Suction Set Parts Reference
Use the diagram references below to distinguish the intake and return components and select the correct replacement.
Plan Your Material-Intake Repair
Hoses: Inspect the siphon and return hoses for cracking, damage and restrictions. Identify which flow path needs service before selecting a replacement.
Seals and fittings: Check the elbow connection and O-ring condition during inspection. Match each seal to its diagram reference rather than assuming the two O-rings are interchangeable.
Clips: Inspect retaining components for damage and correct seating. Replace the specified clip when required and confirm that the connection is secured as directed.
Inlet screen: Inspect for coating buildup, blockage or damage. Clean or replace the screen according to the maintenance procedure so the intake path remains clear.
Confirm Fitment and Diagnose Priming Problems
Difficulty priming or interrupted material flow can result from an empty supply, intake restrictions, suction leaks or pump-valve problems. Inspect the relevant systems before ordering. A priming symptom alone does not identify a failed hose or seal.
Confirm the exact Titan 340 International application and part number. Review hose package contents before purchasing separate fittings or seals. Follow the manufacturer's pressure-relief, power-disconnection, cleaning and installation procedures before servicing.
Explore Related Titan 340 Assemblies
- Titan 340 International Parts Hub for selecting the appropriate service section.
- Titan 340 Main Assembly Parts for machine-level pump and priming components.
- Titan 340 Motor Assembly Parts for motor service component identification.
Titan 340 Suction Set Assembly FAQ
How do I identify the correct suction set part?
Confirm the Titan 340 International configuration, locate the component in the diagram and match its reference to the Titan part number.
Are the siphon hose and return hose the same component?
No. The siphon hose supplies material to the pump, while the return hose serves the return path. Select the replacement for the affected flow path.
Can I use either O-ring shown in the table?
Match the seal to its specific diagram position and application. Separate part numbers should not be treated as interchangeable without fitment confirmation.
Does the siphon hose include fittings and seals?
Check the specific product's supplied contents before ordering additional components. The assembly diagram does not define the contents of every package.
Should I replace the inlet screen when the sprayer will not prime?
Inspect the screen for blockage or damage first, then check the material supply, connections and pump operation. Replace components according to the diagnosed fault.
Need Help Matching Your Titan 340 Suction Part?
Have your model, diagram reference and existing part number ready for assistance selecting the correct hose, seal, fitting or clip.
Call 713-931-0006 for Parts Help
