GENUINE TITAN OEM • TITAN 340 INTERNATIONAL
Titan 340 Motor Assembly Parts
Shop Titan 340 Motor Assembly Parts for the Titan 340 International airless sprayer. Identify motor service components, cooling parts, wiring assemblies and mounting hardware by diagram reference and Titan part number to select the correct replacement for your repair.
Genuine Titan OEM • 340 International • Motor Service • Diagram-Based Ordering
Find the Correct Motor Service Component
Use the motor breakdown to identify the assembly requiring attention. Confirm the installed motor and electrical configuration before choosing a brush kit, capacitor kit or complete replacement motor. Match cooling, wiring and fastening components to their individual diagram references.
- Identify the machine: Record the model, serial information and nameplate voltage.

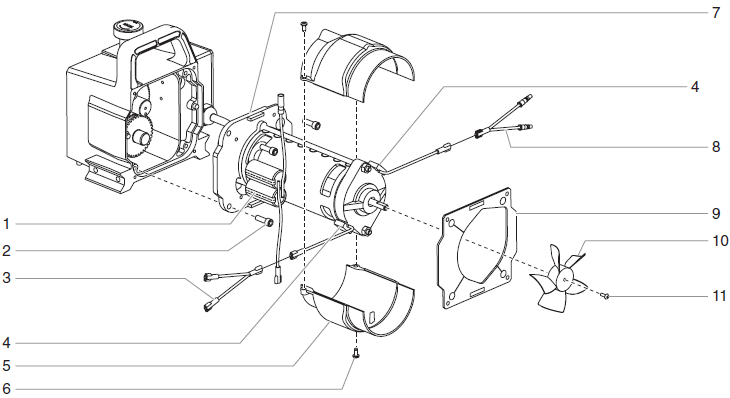

- Locate the part: Match the component to the motor assembly drawing.
- Confirm the replacement: Verify the OEM number, electrical application, quantity and package contents.
Titan 340 Motor Assembly Parts Reference
Use this reference table to connect the diagram callout with the appropriate Titan replacement number.
Plan Your Titan 340 Motor Repair
Motor and electrical components: Have the fault diagnosed before selecting the brush kit, capacitor kit or complete motor. The repair should address the identified failure and match the installed electrical configuration.
Cooling components: Inspect the motor fan and shroud for damage, obstruction or incorrect mounting. Keep the cooling path clear as directed by the maintenance instructions.
Wiring and hardware: Check the condition of wiring, connectors and attachment points during service. Use the specified wire assemblies and fasteners, and follow the prescribed routing and tightening procedures.
Verify Fitment Before Ordering
This category belongs to the Titan 340 International breakdown. Confirm the exact machine version, installed motor and nameplate details. Similar appearance or a shared model number does not establish electrical compatibility.
Failure to start, intermittent running or overheating can have several causes. Use qualified service personnel for electrical diagnosis and repair. Disconnect power, relieve system pressure and follow the manufacturer's capacitor-handling and service procedures before working on the assembly.
Explore Related Titan 340 Assemblies
- Titan 340 International Parts Hub for navigation by repair assembly.
- Titan 340 Main Assembly Parts for machine-level components and mounting references.
- Titan 340 Gear Box Assembly Parts for identifying mechanical drive components.
Titan 340 Motor Assembly FAQ
How do I choose the correct motor assembly part?
Confirm the Titan 340 International model, installed motor and electrical configuration. Match the diagram reference to the exact Titan part number.
Can I order motor service components separately?
The breakdown identifies individual brush, capacitor, fan, wiring and hardware components. Choose the required item after diagnosis and fitment confirmation.
Does the complete motor include every part in the diagram?

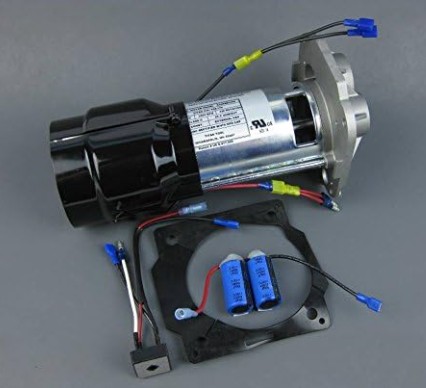

Check the 704-277 product's supplied contents. A diagram shows component relationships and does not establish what is included with an assembly purchase.
Does overheating mean the motor fan needs replacement?
Not necessarily. Inspect cooling airflow and have the operating fault diagnosed before selecting a replacement component.
What information should I provide for fitment help?
Provide the model, serial information, nameplate voltage, installed motor identification and existing part number where available.
Need Help Matching Your Titan 340 Motor Part?
Have your machine and motor identification ready for assistance selecting the correct service component.
Call 713-931-0006 for Parts Help
