GENUINE TITAN OEM • TITAN 340 INTERNATIONAL
Titan 340 Stand Assembly Parts
Shop Titan 340 Stand Assembly Parts for the Titan 340 International airless sprayer. Find leg assemblies, plugs, cord-wrap hardware and drip-cup components by diagram reference and Titan part number to select the correct replacements for stand maintenance and repair.
Genuine Titan OEM • 340 International • Stand Components • Diagram-Based Selection
Identify the Correct Stand Component
The stand breakdown brings together support components and associated hardware for cord storage and drip-cup mounting. Identify the damaged or missing component before ordering, and inspect its attachment points so the repair addresses the affected area.
- Confirm the model: Check the Titan 340 International machine identification.
- Follow the diagram: Match the component's position and orientation to its callout.
- Verify the replacement: Confirm the Titan number, required quantity and supplied contents.

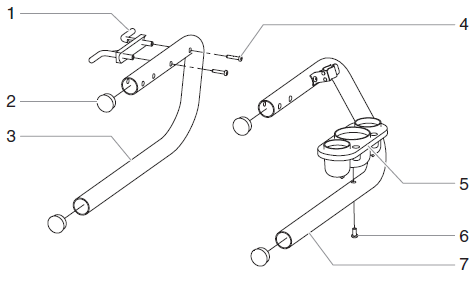

Titan 340 Stand Parts Reference
Use these references to identify the required stand component and its replacement number.
Plan Your Stand Assembly Repair
Leg assembly: Inspect the leg and mounting points for bending, cracking or looseness. Confirm the left-hand orientation before selecting the replacement.
Plugs and cord-wrap hardware: Identify missing plugs and inspect cord-storage attachment points. Use the specified hardware and avoid pulling or pinching the power cord during storage.
Drip-cup components: Check the cup for damage and verify that its mounting screw is secure. A drip cup collects drips; it does not repair a fluid-system leak.
Final checks: Follow the manufacturer's installation and tightening instructions. Confirm that the sprayer stands securely on a suitable level surface before returning it to use.
Confirm Fitment Before Ordering
This category belongs to the Titan 340 International breakdown. Match the exact machine configuration and Titan part number rather than selecting by appearance alone. Inspect the surrounding structure before assuming that replacing one component will resolve instability.
Review package contents before ordering separate fasteners. Follow the manufacturer's pressure-relief and power-disconnection procedures before servicing the machine, and support the sprayer securely while removing stand components.
Explore Related Titan 340 Assemblies
- Titan 340 International Parts Hub for navigation by repair assembly.
- Titan 340 Main Assembly Parts for machine-level components and mounting references.
- Titan 340 Suction Set Assembly Parts for intake hoses, seals and clips.
Titan 340 Stand Assembly FAQ
How do I identify the correct stand replacement part?
Confirm the Titan 340 International model, locate the component in the stand diagram and match its reference to the Titan part number.
Which side is the 704-179A leg assembly?
The 704-179A replacement is identified as a left-hand leg assembly. Confirm its orientation against the drawing before ordering.
Does the drip cup include its mounting screw?
Check the product's supplied contents. The cup and screw have separate diagram references, so do not assume both are included in one purchase.
Will replacing the drip cup stop a pump leak?
No. The cup collects drips. Locate and repair the cause of leakage in the affected fluid-system component.
What should I inspect if the sprayer wobbles?
Check the surface, leg condition, joints and mounting hardware. Correct the identified fault and confirm secure support before operation.
Need Help Matching Your Titan 340 Stand Part?
Have your model identification, diagram reference and existing part number ready for assistance choosing the correct component.
Call 713-931-0006 for Parts Help
