GENUINE TITAN OEM • TITAN 340 INTERNATIONAL
Titan 340 Main Assembly Parts
Shop Titan 340 Main Assembly Parts for the Titan 340 International airless sprayer. Find fluid-section, priming, hose and support components by diagram reference and Titan part number, making it easier to select replacements for the assembly requiring service.
Genuine Titan OEM • 340 International • Main Assembly • Diagram-Based Selection
Identify Your Titan 340 Main Assembly Component
The main assembly breakdown connects machine-level components with their replacement numbers. Start here to identify the fluid section, PrimeSpray valve, syphon by-pass hose assembly, leg assembly and associated mounting hardware. For repairs within the motor or gearbox, use the dedicated assembly breakdown.
- Confirm the machine: Check that your sprayer matches the Titan 340 International configuration.
- Locate the component: Match its position to the numbered main assembly diagram.
- Verify and order: Confirm the Titan part number, quantity and supplied contents before purchasing.

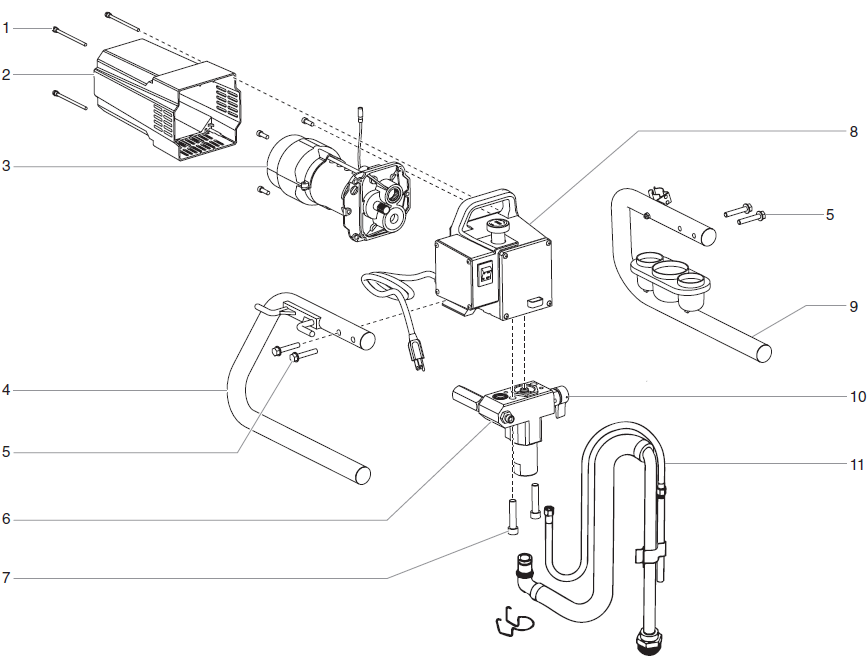

Titan 340 Main Assembly Parts Reference
Use the references below to connect the assembly drawing with the replacement component needed for your repair.
Plan Your Main Assembly Repair

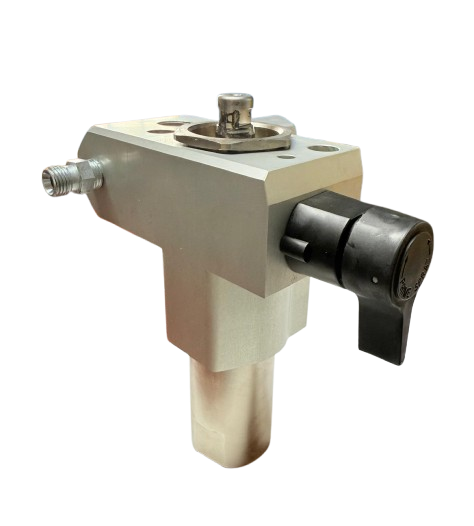

Fluid-section service: Evaluate the pump condition before choosing the 704-185 Fluid Section Assembly. Confirm the replacement's supplied contents and mounting requirements so you can identify any separately required hardware.
Priming and material flow: Inspect the PrimeSpray valve area, hose connections and material supply when diagnosing priming difficulties. Identify the cause before selecting the 700-258 valve or 704-300A hose assembly.
Support and mounting: Inspect the leg assembly, attachment points and fasteners for damage or looseness. Match the required side and hardware number rather than choosing a similar-looking component.
Confirm Fitment Before Replacing Parts
This category belongs to the Titan 340 International parts breakdown. A shared 340 model number does not establish compatibility with another sprayer series. Use the complete machine identification, applicable diagram and exact Titan part number to confirm the replacement.
Pressure loss, leakage or difficulty priming can have several causes. Inspect the affected system before ordering. Follow the manufacturer's pressure-relief and power-disconnection procedures before servicing, and use the specified assembly and tightening instructions.
Explore Related Titan 340 Service Sections
- Titan 340 International Parts Hub for selecting the appropriate repair assembly.
- Titan 340 Motor Assembly Parts for identifying motor service components.
- Titan 340 Gear Box Assembly Parts for locating mechanical drive components.
Titan 340 Main Assembly FAQ
Which sprayer configuration does this category cover?
This main assembly category is part of the Titan 340 International breakdown. Confirm your machine identification before selecting parts.
How do I find the correct replacement number?
Locate the component in the main assembly diagram, match its reference to the Titan part number and verify the product's application and quantity.
Does a fluid section assembly include its mounting screws?
Confirm the specific product's supplied contents. The fluid section screw has a separate reference in the main assembly breakdown, so do not assume it is included.
Should I replace the PrimeSpray valve when the sprayer will not prime?
Diagnose the material supply, intake path, connections and valve operation first. A priming symptom alone does not identify the failed component.
Where can I identify internal motor or gearbox parts?
Use the dedicated Titan 340 motor or gear box assembly section and match the component to its diagram and OEM part number.
Need Help Identifying Your Titan 340 Part?
Have your model identification, serial information, diagram reference and existing part number ready for help selecting the correct replacement.
Call 713-931-0006 for Parts Help
