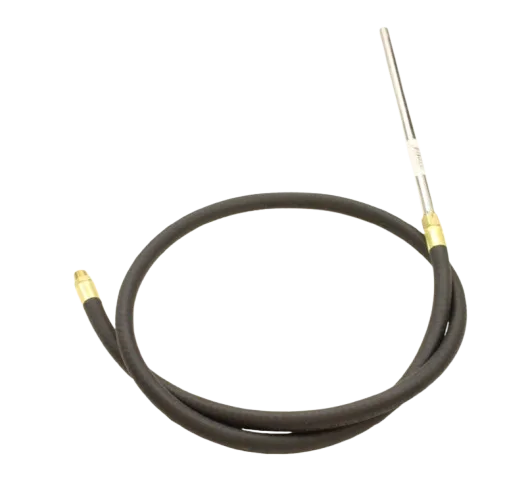

Titan 704-263A Return Hose Assembly
OEM Titan Fluid System Component
Titan 704-263A Return Hose Assembly is a genuine OEM bypass hose that facilitates proper removal of air, paint, and pressure from the pump system on compatible Titan airless sprayers, ensuring efficient priming and pressure regulation. It replaces Titan 0508605 and 704-263.
Compatibility Overview
Replace if the hose is cracked, leaks at the fitting connection, has restricted flow preventing proper priming, or shows visible deterioration.
Titan Fluid System Component Replacement
Titan 704-263A Return Hose Assembly for Sprayer Priming Service
Titan 704-263A is a genuine OEM return hose assembly engineered to facilitate the proper removal of air, paint, and pressure from the pump system of compatible Titan airless sprayers. This component, also known as a bypass hose, is secured at the bottom of the pump beside the siphon hose and is used to prime the pump and drain the spray hose. It replaces the legacy part numbers 0508605 and 704-263. Independent parts suppliers confirm compatibility across a wide range of models including the 340 International, 440i, 440ix, 540ix, 640i, 640ix, 740i, 740ix, 740ix Digital, RentSpray 450, 600, 650, and RentSpray Plus. Over time, return hoses can develop cracks, leaks at the fitting, or internal restrictions that prevent proper fluid flow, leading to difficulty priming and inability to relieve pressure properly.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM return hose assembly that replaces 0508605 and 704-263, used for priming and pressure relief in compatible airless sprayers. |
| Function | Allows for the effective release of pressure, air, and excess paint from the pump system. Routes fluid back to the supply container during priming and pressure relief, contributing to consistent spray patterns and preventing overpressurization. |
| Compatible Titan Models | 340 International, 440i, 440ix, 540ix, 640i, 640ix, 740i, 740ix, 740ix Digital; RentSpray 450, 600, 650, RentSpray Plus. |
| OEM Part Number | 704-263A Return Hose Assembly (Replaces 0508605 and 704-263). |
| Replacement Indicators | Cracks or damage to the return hose, leaks at the fitting connection, restricted flow preventing proper priming, or visible deterioration of the hose assembly. |
| Related Parts Commonly Serviced Together | Siphon hose, PRIME/SPRAY valve, pump manifold fitting, return hose clamp. |
| Common Problems Solved | Difficulty priming, inability to relieve pressure properly, paint leaking from the return hose during spray mode, and poor fluid circulation during cleaning. |
| Why Genuine OEM | Exact dimensions and material specifications ensure proper fit and reliable performance. A low quality or incorrect hose may leak or fail to route fluid correctly, compromising priming and pressure regulation. |
Follow the manufacturer's pressure relief procedure before servicing. Secure the return hose to the pump manifold fitting and position it in the clamp on the siphon tube. Ensure all connections are tight to prevent leaks during operation. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
