Titan Impact 640 Fluid Section Assembly Parts
Find genuine OEM Titan Impact 640 Fluid Section Assembly Parts for servicing the pumping system responsible for moving and pressurizing coating material. Use the applicable exploded fluid-section diagram to identify packings, valves, seals, pump-body components, and related service parts, then match each callout with the correct Titan OEM part number.
Find the Correct Parts for Your Impact 640 Fluid Section
The fluid section is the working pump assembly that receives coating from the suction system and moves it through the sprayer under pressure. Its internal sealing, inlet, outlet, and moving components must work together correctly for the Impact 640 to prime, build pressure, and maintain consistent material delivery.
If your sprayer has difficulty priming, cannot build or maintain pressure, leaks around the pump, or delivers material inconsistently, inspect the fluid section together with the adjoining suction and outlet systems. Use the exploded drawing to identify the exact service component and Titan OEM part number required.
What Does the Impact 640 Fluid Section Do?
The fluid section converts the mechanical movement supplied by the drive system into pumping action. As the pump cycles, its internal components control material intake, displacement, sealing, and outlet flow so coating can move from the supply container toward the spray hose and gun.
Because these components work together as a system, wear in one area can produce symptoms elsewhere. Loss of sealing, valve contamination, worn moving components, or damaged mating surfaces may affect priming, pressure stability, output, or leakage.
Impact 640 Fluid Section Components to Inspect
Exact components, quantities, and service relationships should be confirmed from the applicable Titan exploded parts diagram and service documentation before disassembly or ordering.
Inspect applicable packings, seals, and mating surfaces when symptoms include fluid leakage, reduced pressure performance, or evidence of sealing wear.
Check applicable inlet-valve components and seating areas when the sprayer has difficulty drawing coating or maintaining prime.
Inspect outlet-valve components and related seating surfaces when pressure or material delivery is irregular.
Examine applicable moving pump components, pump-body surfaces, and adjoining parts for wear, scoring, damage, buildup, or other conditions requiring service.
Find Your Impact 640 Fluid Section Parts Faster
Fluid-section parts often work in matched locations within the pump and should not be selected by appearance alone. Use the correct Impact 640 exploded drawing to connect the physical component with its callout and corresponding Titan OEM part number.
Verify that the machine being serviced is the applicable Titan Impact 640 configuration.
Find the packing, valve, seal, moving component, or other required part on the fluid-section diagram.
Match the numbered diagram callout with the corresponding genuine Titan OEM part number.
Check adjoining wear surfaces, seals, valves, and related components before deciding which parts are required.
Impact 640 Not Priming, Building Pressure, or Pumping Correctly?
Start by separating material-intake problems from pump problems. Confirm that coating can reach the pump through a clear and properly connected suction system, then inspect the fluid section for contamination, worn sealing components, valve problems, leakage, or damaged pump surfaces.
If the fluid section appears serviceable but the pump is not cycling correctly, troubleshooting may need to continue into the mechanical drive, motor, electrical controls, or another related system according to Titan service information.
Impact 640 Fluid Section Troubleshooting Guide
| Symptom | Inspect First | What to Check |
|---|---|---|
| Sprayer will not prime | Suction path and inlet area | Material supply, restrictions, air entry, contamination, valve condition and seating |
| Cannot build pressure | Fluid-section sealing and valves | Worn sealing components, contamination, damaged valve surfaces or internal wear |
| Pressure falls during spraying | Pump, suction system and spray setup | Pump wear, intake restriction, air entry, leakage or application-related causes |
| Fluid leaking around pump | Packing and sealing areas | Seal wear, damaged mating surfaces, looseness or another failed fluid component |
| Pump does not cycle correctly | Fluid section and drive system | Binding, mechanical wear, pump damage, drive problems or another operating fault |
Fluid Section Problem or Another Impact 640 System?
Priming, pressure, output, and spray-quality symptoms can involve multiple systems. Identifying where the problem begins can reduce unnecessary parts replacement.
Inspect here for pump sealing, inlet and outlet valve, internal pumping, leakage, and pressure-generation problems.
Inspect the intake path for restrictions, damaged tubing, loose connections, air entry, or insufficient material supply.
Inspect the drive when the motor operates but mechanical movement is abnormal, noisy, restricted, or fails to operate the pump correctly.
Inspect downstream spray equipment when pump operation appears normal but spray pattern, flow, or material delivery at the gun is poor.
Impact 640 Fluid Section Service Guidance
Identify the leak, pressure symptom, or pumping problem before opening the fluid section so service remains focused on the affected area.
When replacing a worn seal, packing, or valve component, inspect the adjoining surfaces and related wear parts before reassembly.
Protect internal pump components from dirt and contamination during service and follow Titan procedures for cleaning, lubrication, and reassembly.
Find the Correct Impact 640 Parts Section
| Repair Area | Parts Section | Use It For |
|---|---|---|
| Pump & pressure generation | Fluid Section Assembly | Packings, valves, seals and related pump components |
| Material intake | Suction Set Assembly | Suction, strainer, return and intake-related components |
| Mechanical power transfer | Drive Assembly | Mechanical components transferring motor power to the pump |
| Primary machine components | Main Assembly | General machine components and associated hardware |
| Frame & support | Applicable Skid / Cart Assembly | Structural, mounting and mobility-related components |
| External spray equipment | Accessories | Applicable guns, hoses, tips, guards and related equipment |
Service Your Impact 640 Fluid Section Safely
Airless spray systems operate under high fluid pressure. Before loosening, removing, or servicing any fluid-section component, shut down the sprayer, disconnect electrical power, and follow Titan's complete pressure-relief procedure.
Follow applicable Titan service instructions for pump removal, disassembly, inspection, cleaning, lubrication, installation, and startup. Never place hands near a suspected high-pressure leak, and do not operate the sprayer with damaged fluid components or unresolved leakage.
Confirm the Correct Impact 640 Fluid Section Part Before Ordering
Packings, seals, valve components, pump-body parts, and other internal pieces can look similar across different Titan sprayers or pump configurations. Appearance alone is not a reliable fitment method.
Verify the Impact 640 model and applicable fluid-section diagram, locate the component by its numbered callout, and match the reference with the exact Titan OEM part number and required quantity before purchasing.
Explore More Titan Impact 640 Parts
Continue through the dedicated Impact 640 parts sections when troubleshooting extends beyond the pump, or return to the complete Titan Impact category to locate additional genuine OEM replacement components.
Shop Titan Impact 640 Fluid Section Assembly Parts

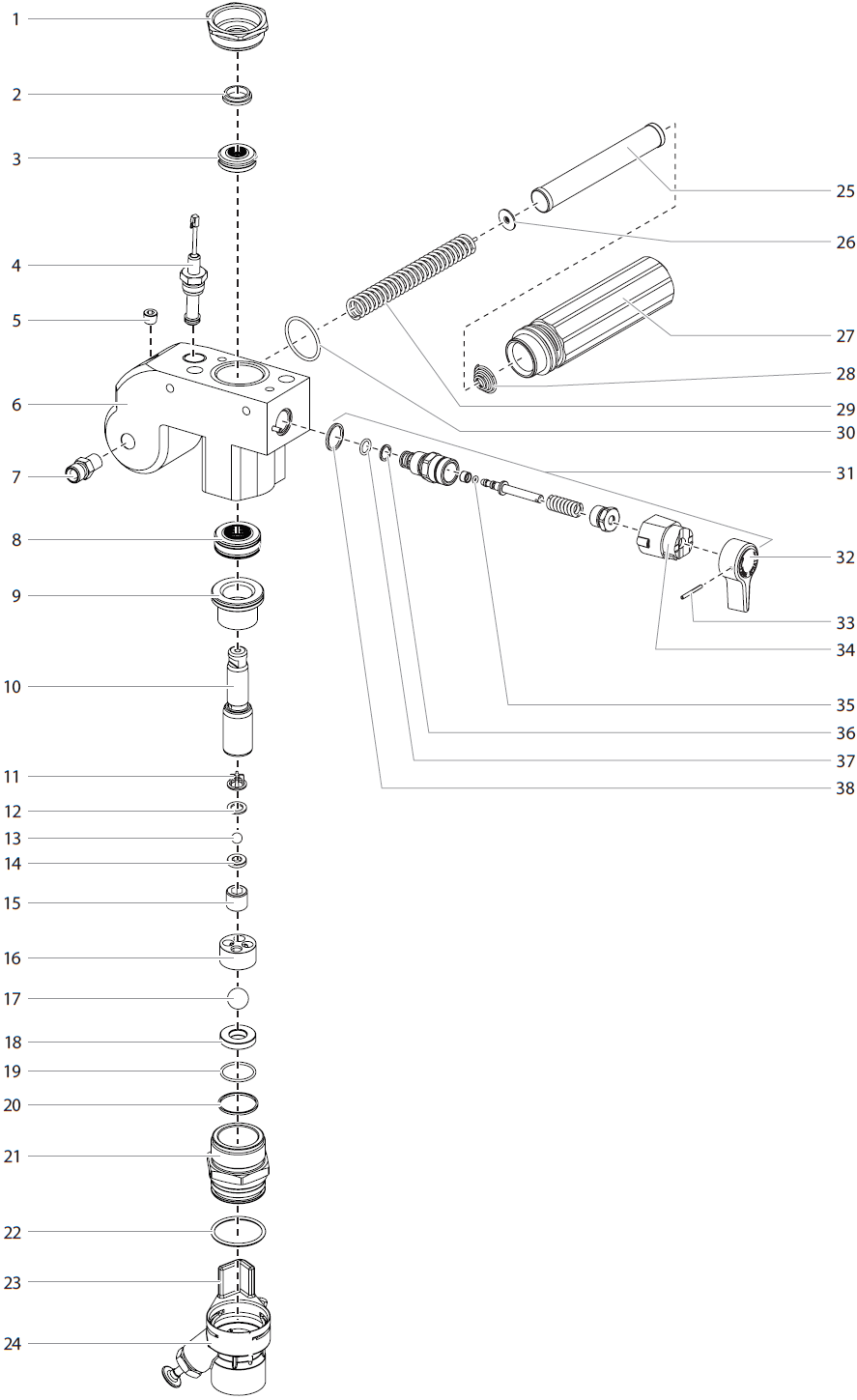

Use the Impact 640 Fluid Section exploded diagram to identify the pump component you need, confirm its numbered callout and exact Titan OEM part number, and select the correct replacement for your repair.
Find Impact 640 Fluid Section PartsTitan Impact 640 Fluid Section Assembly Parts FAQs
What does the Titan Impact 640 Fluid Section do?
The fluid section is the pumping assembly that receives coating from the suction system and moves it through the sprayer under pressure toward the hose and spray gun.
How do I identify the correct Impact 640 pump part?
Locate the component on the applicable Impact 640 Fluid Section exploded diagram, identify its numbered callout, and match that reference with the corresponding Titan OEM part number.
What should I inspect if my Impact 640 will not prime?
First inspect the material supply and suction path for restrictions or air entry. If the intake system is clear and sealed, inspect applicable inlet-valve and fluid-section components according to Titan service procedures.
What can cause an Impact 640 to lose pressure?
Pressure loss can involve fluid-section wear, valve contamination, sealing problems, suction restrictions, air entry, downstream spray equipment, or other operating conditions. Diagnose the complete system before replacing parts.
Is the Impact 640 Fluid Section the same as the Suction Set?
No. The suction set delivers coating from the material container toward the pump, while the fluid section performs the pumping action that moves and pressurizes the coating.
Should I inspect other pump components when replacing worn packings?
Yes. Inspect related sealing surfaces, moving components, valve areas, and other applicable wear points before reassembly so additional damage is not overlooked.
Can I identify Impact 640 fluid-section parts by appearance?
No. Similar-looking pump components may have different applications. Verify the sprayer model, applicable exploded diagram, numbered callout, exact Titan part number, and required quantity.
Where can I find other Titan Impact 640 replacement parts?
Browse the Impact 640 Suction Set, Drive Assembly, Main Assembly, Skid Assembly, and other model-specific sections, or return to the complete Titan Impact Sprayer Parts category.
