Titan Impact 640 Suction Set Assembly Parts
Find genuine OEM Titan Impact 640 Suction Set Assembly Parts for maintaining the material-intake side of your Impact 640 airless sprayer. Use the applicable exploded diagram to identify suction tubes, return components, strainers, fittings, clamps, and related hardware, then match the diagram callout with the correct Titan OEM part number before ordering.
Find the Correct Impact 640 Suction Set Parts
The suction set forms the material-intake path between the coating container and the sprayer's pumping system. Its components must allow coating to reach the pump consistently while helping prevent unwanted debris and air from entering the material path.
If your Impact 640 has difficulty priming, loses prime, draws material inconsistently, or shows leakage around the intake system, inspect the complete suction assembly before replacing individual components. Use the exploded parts drawing to identify the exact component and Titan OEM part number required for the repair.
What Does the Impact 640 Suction Set Do?
The suction set provides the intake path that allows the Impact 640 pump to draw coating from its supply container. Depending on the applicable configuration, the system can include suction tubing, intake strainers, return components, fittings, clamps, and related connection hardware.
Proper sealing and unrestricted material flow are important throughout this section. A loose fitting, damaged tube, clogged strainer, worn connection, or air leak can interfere with priming and material delivery even when the pump itself remains serviceable.
Impact 640 Suction Set Components to Inspect
Use the applicable Impact 640 exploded parts diagram as the controlling reference for exact component names, quantities, locations, and Titan part numbers.
Inspect the applicable suction tube for cracks, deformation, restriction, loose connections, coating buildup, or other damage that could interfere with material intake.
Check the intake strainer for dried coating, debris, damage, or restriction that may reduce material flow to the pump.
Inspect applicable return tubing and connections for cracks, leakage, obstruction, looseness, or deterioration.
Verify that fittings, clamps, retainers, and related connection hardware are correctly positioned and free from damage or looseness.
Find Your Impact 640 Suction Parts Faster

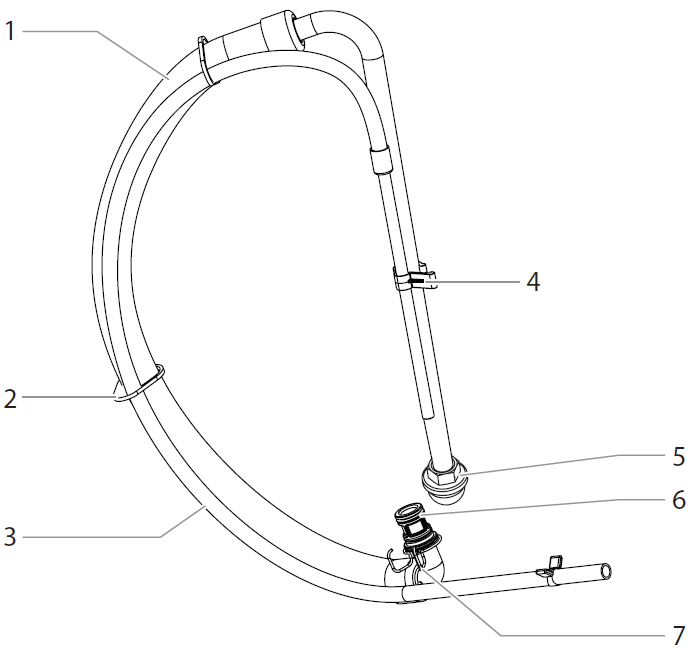

The most reliable way to identify a replacement suction component is to work from the correct exploded parts drawing. This connects the physical location of the part with its diagram callout and corresponding Titan OEM part number.
Verify that you are servicing the applicable Titan Impact 640 configuration.
Find the suction, return, strainer, fitting, or related component on the applicable exploded drawing.
Match the numbered diagram callout with the corresponding genuine Titan OEM part number.
Confirm the part number, required quantity, location, and machine configuration before purchase.
Impact 640 Difficult to Prime or Losing Prime?
Start by inspecting the complete material-intake path. Make sure the suction inlet remains properly submerged in coating and inspect the strainer, suction tube, fittings, clamps, and connections for blockage, dried material, looseness, damage, or conditions that could allow air into the system.
If the suction system is clear and properly sealed but the sprayer still does not prime or maintain material flow, troubleshooting may need to continue into the fluid section, inlet-valve area, or other pump components according to Titan service information.
Impact 640 Suction System Troubleshooting Guide
| Symptom | Inspect First | What to Look For |
|---|---|---|
| Sprayer will not prime | Strainer, suction tube and connections | Blockage, air entry, loose fittings, dried coating or damaged components |
| Sprayer loses prime | Complete suction path | Intermittent air entry, loose connections, cracks or inadequate material supply |
| Restricted material intake | Inlet strainer and suction tube | Debris, dried coating, obstruction, deformation or restriction |
| Visible material leak | Tube connections and fittings | Loose connection, damaged fitting, cracked tubing or failed adjoining component |
| Suction system checks good | Fluid section | Continue diagnosis using the applicable pump and fluid-section service information |
Suction Set Problem or Fluid Section Problem?
Priming and material-flow symptoms can involve more than one system. Separating the intake system from the pumping system helps prevent unnecessary parts replacement.
Focus here when you find damaged suction tubing, a restricted strainer, loose intake connections, return-line problems, or another visible problem along the material-intake path.
Continue into the fluid section when the suction path is clear and sealed but the machine still cannot prime, develop pressure, maintain material flow, or operate correctly.
Impact 640 Suction Set Maintenance
Prevent dried coating and debris from accumulating in the strainer, suction tube, and other material-intake components.
Periodically inspect applicable fittings, clamps, tubes, and adjoining connections for looseness, leakage, cracking, or deterioration.
Follow Titan's cleaning and flushing procedures for the coating being sprayed to reduce material buildup within the intake and fluid systems.
Where to Look When the Repair Extends Beyond the Suction Set
| Repair Area | Parts Section | Use It For |
|---|---|---|
| Material intake | Suction Set Assembly | Suction, strainer, return and related intake components |
| Pump & pressure generation | Fluid Section Assembly | Pump components, sealing and fluid-section service parts |
| Mechanical power transfer | Drive Assembly | Mechanical drive components between motor and pump |
| General machine components | Main Assembly | Primary sprayer components and related hardware |
| External spray equipment | Accessories | Applicable guns, hoses, tips, guards and related accessories |
Service Your Impact 640 Suction System Safely
Before removing suction, return, pump, or adjoining fluid-system components, shut down the sprayer, disconnect electrical power, and follow Titan's complete pressure-relief procedure. Never assume that the system is depressurized simply because the sprayer is switched off.
Follow applicable Titan instructions for flushing, disassembly, inspection, installation, and startup. Correct any damaged tubing, leaking connections, missing components, or other unsafe conditions before returning the sprayer to service.
Confirm Your Impact 640 Suction Part Before Ordering
Suction tubes, return components, strainers, fittings, clamps, and related parts can look similar across Titan sprayer models and configurations. Visual similarity does not confirm interchangeability.
Verify the Impact 640 model and applicable suction-set diagram, locate the component by its numbered callout, and match the callout with the exact Titan OEM part number and required quantity before purchasing.
Explore More Titan Impact 640 Parts
Continue to the Impact 640 Main Assembly when your repair extends beyond the material-intake system, or browse the complete Impact category to locate additional genuine Titan OEM replacement parts.
Shop Titan Impact 640 Suction Set Assembly Parts
Use the Impact 640 Suction Set exploded diagram to identify the intake component you need, confirm its numbered callout and exact Titan OEM part number, and choose the correct replacement for your repair.
Find Impact 640 Suction PartsTitan Impact 640 Suction Set Assembly Parts FAQs
What does the Titan Impact 640 suction set do?
The suction set provides the material-intake path that allows the sprayer's pumping system to draw coating from the supply container.
What should I inspect if my Impact 640 will not prime?
Inspect the material supply, inlet strainer, suction tubing, fittings, clamps, and connections for blockage, dried coating, looseness, damage, or possible air entry. If the suction path is clear and sealed, continue troubleshooting according to Titan service information.
Can a clogged inlet strainer cause priming problems?
A restricted strainer can reduce material flow into the suction system. Inspect and clean the strainer according to the applicable Titan maintenance instructions.
Can an air leak in the suction system affect the Impact 640?
Yes. A leak or poorly sealed connection on the intake side can interfere with the pump's ability to draw material consistently and may contribute to priming or material-flow problems.
How do I identify the correct Impact 640 suction replacement part?
Locate the component on the applicable Impact 640 suction-set exploded drawing, identify its numbered callout, and match that reference with the corresponding Titan OEM part number.
Is a suction-set problem the same as a fluid-section problem?
No. The suction set handles material intake, while the fluid section contains pumping components involved in moving and pressurizing the coating. Similar symptoms can involve either system, so proper diagnosis is important.
Can I select an Impact 640 suction part by appearance?
Appearance alone should not be used to confirm fitment. Verify the sprayer model, applicable diagram, numbered callout, exact Titan part number, and required quantity.
Where can I find other Titan Impact 640 replacement parts?
Browse the applicable Impact 640 Main Assembly and other model-specific parts sections, or return to the complete Titan Impact Sprayer Parts category to locate additional OEM replacement components.
