Titan Impact 640 Low Rider Assembly Parts
Find genuine OEM Titan Impact 640 Low Rider Assembly Parts for servicing the low-profile frame, wheels, handle, mounting points, supports, and related mobility components. Use the applicable exploded Low Rider diagram to identify the required component, match its numbered callout with the correct Titan OEM part number, and verify your machine configuration before ordering.
Find the Correct Impact 640 Low Rider Parts
The Low Rider assembly provides the supporting frame and mobility structure for the applicable Impact 640 configuration. It keeps the sprayer's major assemblies supported while providing the wheels, handle, mounting points, and structural components required for positioning and moving the machine.

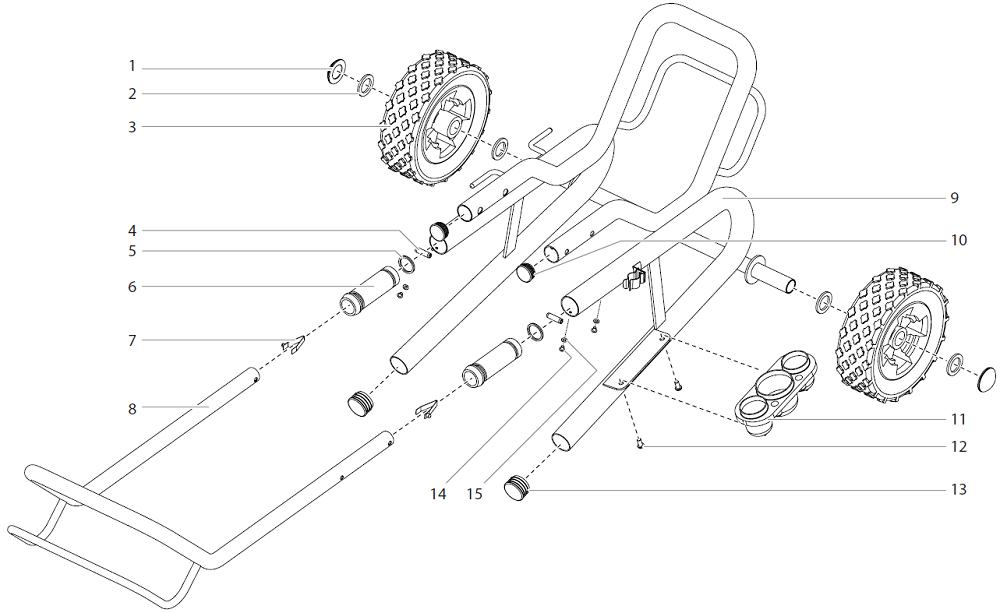

When repairing this area, use the correct Impact 640 Low Rider exploded drawing rather than selecting parts by appearance. Locate the component on the diagram, identify its numbered callout, and match that reference with the corresponding Titan OEM part number and required quantity.
What Does the Impact 640 Low Rider Assembly Do?
The Low Rider assembly provides a low-profile supporting structure for the applicable Impact 640 sprayer configuration. It supports the machine while providing the structural and mobility components needed to position, move, and stabilize the sprayer during normal use and service.
Because major sprayer components attach to or are supported by the frame, damage or looseness in the Low Rider assembly can affect machine stability, component positioning, and transportation. Structural concerns should therefore be inspected before the sprayer is returned to service.
Impact 640 Low Rider Components to Inspect
Exact component names, positions, and quantities should be confirmed from the applicable Titan Impact 640 Low Rider exploded diagram before ordering or beginning repairs.
Inspect structural frame areas for bending, cracking, deformation, impact damage, corrosion, or damaged mounting locations.
Check wheels, axle-related components, retainers, and adjoining mounting areas for looseness, excessive movement, damage, or wear.
Inspect the applicable handle structure, attachment points, retainers, and hardware for secure positioning and visible damage.
Verify applicable bolts, screws, nuts, washers, brackets, and supports that secure the sprayer assemblies to the Low Rider structure.
Find Your Impact 640 Low Rider Parts Faster
Frame and mobility components can appear similar across different Titan sprayers and configurations. Use the applicable Low Rider exploded drawing so the physical location, diagram callout, and Titan OEM part number all agree.
Verify that the sprayer being serviced is the applicable Impact 640 Low Rider configuration.
Find the frame, wheel, handle, mounting, or hardware component on the applicable exploded drawing.
Match the numbered diagram callout with the corresponding genuine Titan OEM part number.
Confirm the part number, diagram location, required quantity, and configuration before purchase.
Impact 640 Low Rider Loose, Unstable, or Difficult to Move?
Inspect the complete Low Rider structure before replacing a single part. Check the frame, wheels, axle areas, handle, mounting points, brackets, supports, retainers, and related hardware for looseness, deformation, wear, or impact damage.
If excessive vibration occurs only while the sprayer is operating, also inspect the drive, pump, motor, and machine mounting points. Operating vibration may originate outside the Low Rider assembly even when it is felt through the frame.
Impact 640 Low Rider Inspection Guide
| Condition | Inspect | What to Check |
|---|---|---|
| Sprayer feels unstable | Frame and mounting points | Deformation, cracks, loose hardware, damaged supports or improper mounting |
| Wheel has excessive movement | Wheel, axle and retainers | Wear, damage, looseness, missing retainers or damaged mounting areas |
| Handle feels loose | Handle and attachment points | Loose or missing hardware, damaged supports or structural deformation |
| Machine shifts on frame | Sprayer mounting hardware | Loose fasteners, damaged brackets, worn mounting points or missing components |
| Excessive operating vibration | Frame, mounts and operating systems | Loose mounting plus possible drive, motor, pump or other mechanical causes |
Low Rider Problem or Another Impact 640 System?
Use the location and function of the component to determine which Impact 640 parts section applies to your repair.
Use for the applicable low-profile frame, wheels, handle, mounting components, supports, and related hardware.
Use when vibration, mechanical noise, binding, or abnormal movement originates within the mechanical power-transfer system.
Use for pump components associated with priming, pressure generation, fluid leakage, sealing, or pumping performance.
Use for material-intake components associated with drawing coating from the container toward the fluid section.
Impact 640 Low Rider Service Guidance
If one frame or mobility component is damaged, inspect nearby mounting points, supports, fasteners, wheels, and adjoining structural areas.
Note the original position of brackets, supports, hardware, and mounted assemblies before disassembly and follow applicable Titan service procedures.
Verify that wheels move correctly, the handle and frame are secure, and mounted sprayer components remain properly supported before operation.
Find the Correct Impact 640 Parts Section
| Repair Area | Parts Section | Use It For |
|---|---|---|
| Low-profile frame & mobility | Low Rider Assembly | Frame, wheels, handle, mounting and related hardware |
| Primary machine components | Main Assembly | Components identified on the main machine drawing |
| Mechanical power transfer | Drive Assembly | Mechanical drive and associated support components |
| Pump & pressure generation | Fluid Section Assembly | Pump, sealing, valve and fluid-handling components |
| Material intake | Suction Set Assembly | Suction and material-intake components |
| External spray equipment | Accessories | Applicable guns, hoses, tips, guards and related equipment |
Service the Impact 640 Low Rider Assembly Safely
Before inspecting, moving, or removing frame-mounted sprayer components, shut down the machine, disconnect electrical power, and follow Titan's complete pressure-relief procedure. Place the sprayer on a stable surface and support it securely before removing structural or mounting hardware.
Follow applicable Titan service instructions for removal, installation, fastening, and inspection. Do not operate or transport the sprayer with a damaged frame, unsecured handle, compromised wheel assembly, missing hardware, or improperly mounted machine components.
Confirm the Correct Impact 640 Low Rider Part Before Ordering
Wheels, frame pieces, handles, brackets, supports, retainers, and mounting hardware can look similar across different Titan sprayer configurations. Similar appearance does not establish compatibility.
Confirm that your machine uses the applicable Impact 640 Low Rider configuration, locate the required component on the correct exploded drawing, and match its numbered callout with the exact Titan OEM part number and required quantity.
Explore More Titan Impact 640 Parts
Continue through the dedicated Impact 640 parts sections when your repair extends beyond the Low Rider frame and mobility system, or browse the complete Titan Impact category for additional genuine OEM replacement parts.
Shop Titan Impact 640 Low Rider Assembly Parts
Use the Impact 640 Low Rider exploded diagram to locate the frame, wheel, handle, mounting, or support component you need, confirm its numbered callout and exact Titan OEM part number, and order the correct replacement for your repair.
Find Impact 640 Low Rider PartsTitan Impact 640 Low Rider Assembly Parts FAQs
What is the Titan Impact 640 Low Rider Assembly?
The Low Rider assembly is the applicable low-profile frame and mobility configuration that supports the Impact 640 and incorporates structural, wheel, handle, mounting, and related components.
How do I identify the correct Impact 640 Low Rider part?
Locate the required component on the applicable Impact 640 Low Rider exploded diagram, identify its numbered callout, and match that reference with the corresponding Titan OEM part number.
What should I inspect if my Impact 640 Low Rider feels unstable?
Inspect the frame, wheels, axle areas, mounting points, brackets, supports, handle attachments, and applicable hardware for looseness, wear, deformation, damage, or missing components.
What should I check if an Impact 640 wheel feels loose?
Inspect the wheel, applicable axle components, retainers, mounting locations, and related hardware. Use the exploded diagram to identify any damaged or missing component before ordering.
Can a Low Rider frame problem cause vibration?
Loose mounting or damaged structural components can contribute to movement or vibration. However, operating vibration may also originate from the drive, motor, pump, or another mechanical system.
Is the Impact 640 Low Rider Assembly the same as the Skid Assembly?
No. They are different frame configurations. Select parts from the exploded diagram that corresponds to the actual configuration of the Impact 640 being serviced.
Can I order an Impact 640 Low Rider component by appearance?
No. Similar-looking frame and mobility components may have different applications. Confirm the machine configuration, exploded diagram, callout, exact Titan part number, and required quantity.
Where can I find other Titan Impact 640 replacement parts?
Browse the Impact 640 Main Assembly, Drive Assembly, Fluid Section, Suction Set, Skid Assembly, and other model-specific parts sections, or return to the complete Titan Impact Sprayer Parts category.
