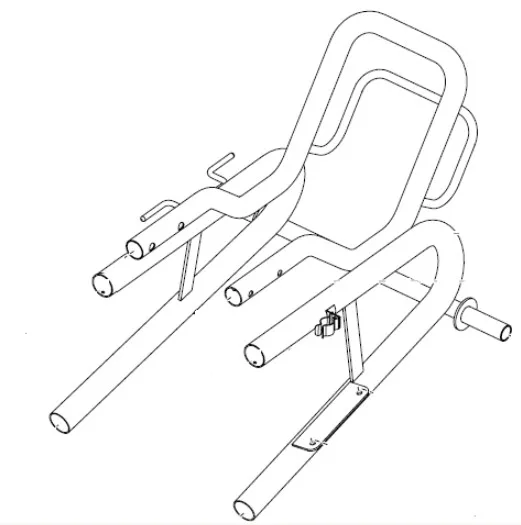

Titan 0558463 Cart Weldment
Give your sprayer a sound foundation with the Titan 0558463 Cart Weldment. This replacement frame appears in documented Impact 440, 540, and 640 low-rider assemblies. Inspect it when the cart develops bent tubing, cracked welds, or damaged mounting points, and confirm the exact cart diagram before ordering.
Fitment Note: Select this frame only where the low-rider parts list specifies 0558463. Wheels, handle, and mounting hardware are separate diagram items.
Restore Your Sprayer’s Foundation with Titan 0558463 Cart Weldment
A dependable repair starts with the frame supporting your equipment. The Titan 0558463 Cart Weldment is the replacement frame identified in specified Titan Impact low-rider cart assemblies. When inspection reveals structural damage, selecting the correct weldment lets you rebuild the cart around serviceable components and address the damaged foundation directly.
What Does Titan 0558463 Cart Weldment Do?
The cart weldment forms the supporting frame of the designated low-rider arrangement. Its condition matters when assessing the cart’s alignment, mounting security, and overall serviceability.
A frame replacement should follow a complete cart inspection. Loose fasteners, worn wheels, or damaged handle components can also affect how the equipment stands and moves.
When Should the Cart Weldment Be Replaced?
Cracked or separated welds: Have visible fractures assessed before returning the cart to service.
Bent frame members: Check for distortion following a fall, transport incident, or impact.
Damaged mounting areas: Inspect attachment points for deformation, cracks, or enlarged holes.
Significant corrosion: Distinguish cosmetic surface rust from deterioration affecting structural integrity.
Persistent instability: Check the frame together with the wheels, spacers, axle retention, handle, and fasteners to identify the actual cause.
Inspection & Replacement Guidance
1. Identify the configuration. Verify the full model number and confirm that the machine has the applicable low-rider cart.
2. Prepare the equipment. Follow the machine’s pressure-relief procedure, disconnect power, and arrange stable support before removing components.
3. Record component positions. Use the correct exploded diagram to track spacers, fasteners, handle hardware, and other removable parts.
4. Inspect parts before transfer. Replace damaged associated components rather than installing them onto the replacement frame.
5. Reassemble to the applicable instructions. Use the specified hardware and any tightening requirements supplied for the machine. Do not force misaligned mounting points.
6. Check the completed cart. Confirm mounting security, wheel movement, handle retention, and clearance around hoses and electrical cords before following the normal startup procedure.
Plan the Repair Around the Complete Cart
Inspect the surrounding components while the cart is disassembled. Reuse only those that remain suitable for service.
Order associated components from the parts list for your exact cart revision.
Order Titan 0558463 Cart Weldment
Choose Titan 0558463 from AllTitanParts after confirming the low-rider diagram for your machine. If you need compatibility assistance, provide the complete model number, serial number, and clear photographs of the existing cart and mounting points.
Frequently Asked Questions
Helpful answers about frame selection, cart configuration, and repair planning.
What is Titan 0558463?
It is the cart weldment identified in specified Titan Impact low-rider assemblies.
Which machines have documented compatibility?
The confirmed applications are the documented low-rider versions of Impact 440, Impact 540, and Impact 640. See the Technical & Ordering Details table for model numbers and manual references.
What about Impact 640I and Impact 640IA?
Their low-cart variants appear in the shared Impact 640 service-manual family. Confirm 0558463 in the diagram applicable to the exact machine before purchasing.
Does this fit the high-rider or skid version of the same sprayer?
The compatibility documented here concerns the low-rider frame. Select high-rider and skid components from their own assembly diagrams.
Is 0558463 the complete low-rider cart assembly?
0558463 identifies the weldment. In the cited diagrams, 0558392 identifies the broader low-rider assembly. Confirm what is supplied with the listing before ordering.
Will a replacement frame correct a wobbling cart?
It can address instability caused by a damaged weldment. Inspect the wheels, fasteners, spacers, and other cart components first to establish the cause.
Can I use it to convert a skid sprayer into a low rider?
The weldment listing does not establish a complete conversion package or approved conversion procedure. Obtain model-specific guidance before planning a configuration change.
What information helps confirm fitment?
Provide the full machine model, serial number, cart configuration, and photographs of the existing frame. Include the relevant parts-diagram page when available.
