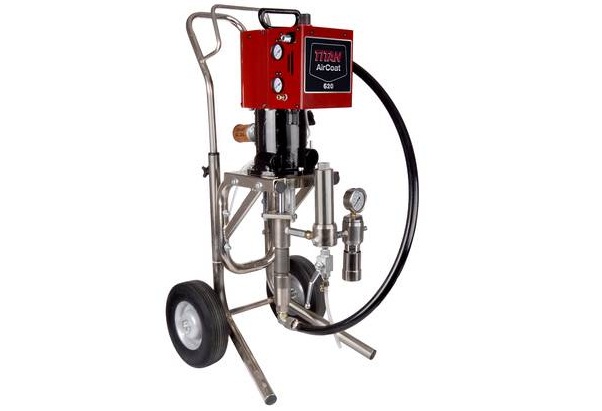

It is better than a regular sprayer. AirCoat 620 can not only spray paints with high quality finish but also works great with primers, varnishes, polyurethanes, stains and lacquers, slow-setting 2k materials or Ultra Violet hardening materials. AirCoat 620 can work easily with any type of paint, be it solvent or water based.
Features:
AirCoat 620 Â has great features, some of them are as under:
- AirCoat 620 is an FRL (Standard) paint sprayer with an air filter, dual regulators and air lubricator.
- Muffler: AirCoat 620 provides low operating noise levels.
- With a standard fluid filter, it also provides the best spray finish possible.
- It has a standard pulsation damper, it minimizes pressure fluctuations.
- A stainless-steel fluid section with PTFE/leather packings allows its usage with all finishing coatings.
Specifications (AirCoat 620)
Max. Operating Pressure (PSI):The maximum pressure at which AirCoat 620 operates is 2320 PSI (160 bar). Max. Delivery: The maximum delivery of AirCoat 620 is 1.25 GPM. Max. air inlet pressure: The maximum air inlet pressure, AirCoat 620 provides is 116 PSI (8 bar). Pressure Ratio: The pressure ration of AirCoat 620 is 20:1. Motor:  The AirCoat 620 works with a 6" Air Motor . Model Number: AirCoat 620 has a model number of Cart 0533620C / 0533620CAA, Wall 0533620W / 0533620WAA and Spider 0533620S / 0533620SAA. Volume per double stroke: AirCoat 620 has volume per double stroke of 81.6 cc (4.98 in3). Max. volume flow @ Cycles per minute (CPM): AirCoat 620 1.29 gal (4.88 l)/min (60 CPM) and 1.94 gal (7.34 l)/min (90 CPM). Fluid inlet: AirCoat 620 has a fluid inlet of 3/4†NPT (F) Fluid outlet: AirCoat 620 has a fluid outlet of 3/8†NPT (F) Hose connection: AirCoat 620 has a  hose connection of 1/4†NPSM(M) Approximate air requirement (SCFM) per gallon of output @ 100 PSI (6,9 bar) air pressure: AirCoat 620 has an 18 SCFM (0.51 m3/min) approximate air requirement (SCFM) per gallon of output. Air inlet: AirCoat 620 has an air inlet of 3/8†NPT (M) Air outlet: AirCoat 620 has an outlet of 3/8†NPT (M) Max. sound pressure level: AirCoat 620 has  a sound pressure level of maximum 98 dB* Weight: AirCoat 620 has a weight of Cart 66.1 lbs. (29.9 kg) , Wall 50.7 lbs. (22.7 kg) and Spider 46.3 lbs. (21.3 kg). Max. viscosity: The maximum viscosity of AirCoat 620 is 50.000 mPa s. Dimensions L x W x H:  The dimensions of the unit of AirCoat 620 are 19.75" x 18.5" x 40" (50.16 cm x 47 cm x 101.6 cm) (cart), 14.5" x 11.5" x 30" (36.8 cm x 29.2 cm x 76.2 cm) (wall) and 19" x 17" x 36.3" (48.3 cm x 43.2 cm x 92.2 cm) (Spider). Max. temperature of pre-heated coating material: The maximum temp. of pre-heated coating material of AirCoat 620 is 140º F (60º C) Filter insert (standard equipment): The filter insert of AirCoat 620 is 60 mesh, 97 cm2 (15 In2). Explore the classic AirCoat series today at alltitanparts.com and get the titan airless paint sprayer of your choice.
