Shop diagram-matched parts for the Titan AirCoat 620 Fluid Pump Assembly, including the pump block, cylinder, female and male glands, leather and PTFE V-packings, packing spring, gasket, outlet valve body, balls, retainer, ball guide, ball pin, washer, cotter pin, and repacking kit. Confirm every replacement by diagram item number and exact Titan part number.

Pressure-Generating Core

Service the pump block and cylinder that form the structural housing and working fluid chamber.

Reliable Packing Seals

Match glands, leather and PTFE V-packings, spring, and gasket to the correct upper or lower packing position.

One-Way Valve Control

Inspect outlet valve body, balls, retainer, guide, and pin for pressure loss, backflow, or poor priming.

Complete Rebuild Planning

Use the diagram to identify internal sealing, valve, structural, and retaining parts before teardown.

Assembly Overview

AirCoat 620 Fluid Pump Assembly Overview

The Titan AirCoat 620 Fluid Pump Assembly is the material-pressure section that draws coating from the supply, seals it within the pump chamber, and pressurizes it for delivery to the air-assisted airless spray system. The pump block provides the central structural housing, while the cylinder forms the precision fluid chamber in which the displacement components operate.

Upper and lower packing stacks use female glands, male glands, leather V-packings, PTFE V-packings, a packing spring, and a gasket to maintain a high-pressure seal around the moving pump components. The outlet valve body, stainless balls, ball guide, retainer, and ball pin control one-way material movement, helping the pump prime correctly, prevent backflow, and maintain stable pressure between strokes.

Main Functions

Functions Supported by the Fluid Pump Assembly

Draws coating material into the pump during the intake stroke.
Pressurizes material for controlled delivery to the AirCoat spray system.
Maintains high-pressure sealing through upper and lower packing stacks.
Uses check-valve components to prevent backflow and preserve prime.
Provides serviceable internal parts for packing replacement, valve repair, and full pump rebuilding.

Service Applications

Common Fluid Pump Service Applications

Correcting material leakage from the packing area.
Restoring pressure after output loss or pressure fluctuation.
Repairing difficult priming, loss of prime, or material backflow.
Replacing worn packings, scratched cylinders, damaged glands, or valve-seat components.
Completing preventive maintenance or a full fluid-pump rebuild.

Troubleshooting & Maintenance

Common AirCoat 620 Fluid Pump Assembly Symptoms

Use the symptom to isolate packing, cylinder, pump-block, or check-valve problems before ordering parts.

Operating symptom	Areas to inspect	Recommended action
Material leaks from the packing area	Female glands 0533424, male glands 0533427, leather V-packings 0533425, PTFE V-packings 0533426, packing spring 0533428, and gasket 0533429	Relieve pressure, inspect packing orientation and wear, and check the cylinder and mating surfaces before repacking.
Pump loses pressure during operation	Cylinder 0533431, packing stacks, outlet valve body 0533435, balls 569-016 and 211-129, ball guide 0533436, retainer 0533434, and ball pin 0533437	Inspect both sealing and check-valve systems; pressure loss can originate from either area.
Pump will not prime or repeatedly loses prime	Check-valve balls, outlet valve body, ball guide, retainer, packing condition, pump block passages, and material supply	Clean contamination, inspect seating surfaces, and rule out suction-side air entry before replacing internal parts.
Output is uneven or pulsates	Packing stacks, cylinder bore, valve balls, outlet valve body, ball guide, and pump block	Check for worn seals, sticking balls, damaged valve seats, contamination, or restricted material flow.
Packing wear returns quickly after service	Cylinder 0533431, glands, packing spring, gasket, packing orientation, coating compatibility, and lubrication	Correct scoring, misalignment, contamination, or incorrect assembly before installing another packing set.
Pump components loosen or shift	Cotter pin 0533441, washer 0533599, retainers, threaded glands, pump block, and outlet valve body	Inspect retaining hardware and threaded connections and replace damaged or missing securing parts.

Major Replacement Components

High-Value AirCoat 620 Fluid Pump Parts

These verified components represent the pump's primary structural, sealing, and check-valve service areas.

PUMP HOUSING

Titan 0533423 Pump Block

Serves as the central housing for the fluid pump and supports the cylinder, packing stacks, displacement components, and fluid passages.

View Titan 0533423 Pump Block →

FLUID CHAMBER

Titan 0533431 Cylinder

Forms the pump's working fluid chamber and provides the precision bore surface required for pressure generation and packing seal integrity.

View Titan 0533431 Cylinder →

PACKING SERVICE

Titan 0533927 Repacking Kit

Provides the principal packing-service components used to restore sealing and reduce leakage or pressure loss.

View Titan 0533927 Repacking Kit →

OUTLET CHECK VALVE

Titan 0533435 Outlet Valve Body

Provides the sealing surface for the outlet check ball, preventing backflow and helping the pump retain pressure.

View Titan 0533435 Outlet Valve Body →

PACKING SUPPORT

Titan 0533424 Female Gland

Positions and supports the packing stack within the fluid pump while contributing to correct compression and sealing.

View Titan 0533424 Female Gland →

CHECK BALL

Titan 211-129 Stainless Ball

Functions as a precision check-valve ball that supports one-way coating flow and reliable pressure retention.

View Titan 211-129 Stainless Ball →

Parts Selection Guide

How to Order the Correct Fluid Pump Component

Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.

STEP 1

Identify the failure mode

Determine whether the issue involves leakage, pressure loss, poor priming, backflow, output fluctuation, or structural damage.

STEP 2

Locate the diagram callout

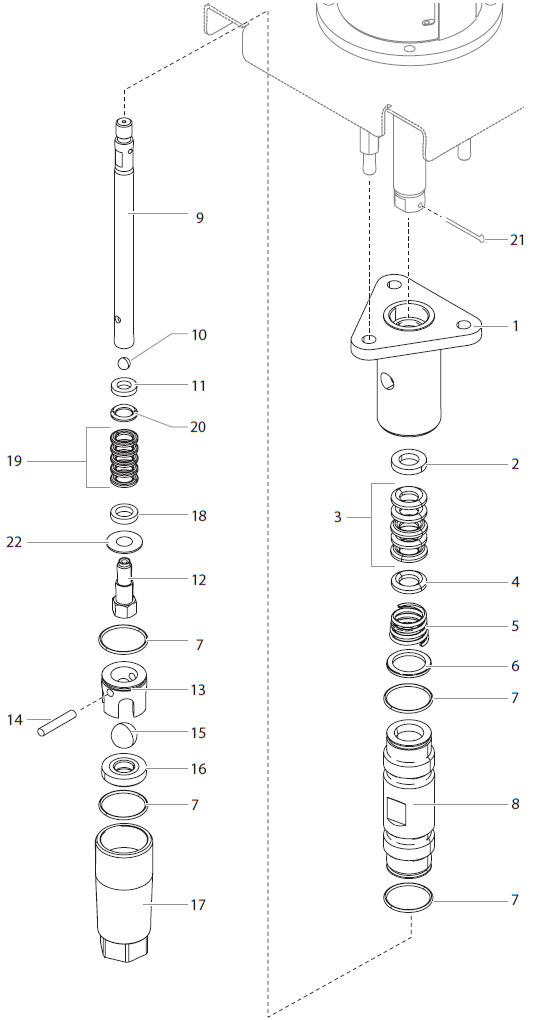

Use the exploded view to identify the exact packing, gland, valve, cylinder, or retaining position.

STEP 3

Confirm the part number

Match the item number to the complete Titan part number before ordering.

STEP 4

Inspect related wear parts

Check both packing stacks, cylinder bore, valve balls, seat surfaces, retainers, glands, spring, gasket, washer, and pin.

Preventive Care

Maintenance Practices for the Fluid Pump Assembly

Relieve all air and fluid pressure before disconnecting or opening the pump.
Flush coating material from the system before it dries inside the pump or valve passages.
Inspect the cylinder bore for scoring, corrosion, coating buildup, or abnormal wear.
Check leather and PTFE V-packings for flattening, cuts, hardening, or chemical damage.
Inspect both valve balls and their seating surfaces for contamination, pitting, or deformation.
Verify glands, spring, gasket, retainer, guide, ball pin, washer, and cotter pin are correctly installed.
Use compatible pump lubricant and follow the correct packing orientation during rebuilds.

Complete Repair Planning

Build a Complete AirCoat 620 Fluid Pump Repair

When replacing packings, inspect the cylinder bore, female and male glands, packing spring, gasket, pump block, and all mating surfaces. When servicing the outlet valve, inspect the valve body, stainless balls, guide, retainer, ball pin, and related seating surfaces together.

When pressure loss and priming problems occur together, evaluate both the packing system and check-valve system rather than replacing one visible part. A complete rebuild restores sealing, one-way flow, pressure retention, and dependable coating delivery.

Fast Parts Navigation

Use these verified internal links to continue to the complete diagram and major service components.

Complete Fluid Pump Diagram Pump Block 0533423 Cylinder 0533431 Repacking Kit 0533927 Outlet Valve Body 0533435 Female Gland 0533424

Frequently Asked Questions

Titan AirCoat 620 Fluid Pump Assembly FAQs

Use these answers to identify packing, pressure, priming, cylinder, and check-valve repairs.

What does the AirCoat 620 Fluid Pump Assembly do?+

It draws coating from the supply, seals and pressurizes it within the pump chamber, and delivers it to the spray system.

What does Titan 0533423 Pump Block do?+

It forms the central pump housing and supports the cylinder, packing stacks, displacement components, and internal fluid passages.

What does Titan 0533431 Cylinder do?+

It forms the precision fluid chamber in which the pump components move to draw in and pressurize coating material.

What is the purpose of the V-packings?+

The leather and PTFE V-packings form high-pressure seals around moving pump components and help prevent coating leakage.

What does the outlet valve body do?+

It provides the sealing surface for the outlet check ball, controls one-way material flow, and helps prevent backflow.

What causes the fluid pump to lose pressure?+

Possible causes include worn packings, a scored cylinder, contaminated or damaged check balls, worn valve seats, or a separate downstream restriction.

Why does the pump fail to prime?+

Common causes include suction-side air leaks, sticking or contaminated valve balls, worn packings, blocked passages, or insufficient material supply.

Should both packing stacks be inspected during service?+

Yes. Inspect upper and lower packings, glands, spring, gasket, cylinder bore, and related mating surfaces during a rebuild.

When should the repacking kit be used?+

Use it when the pump leaks at the packing area, loses sealing efficiency, or requires scheduled packing replacement.

What safety steps are required before fluid-pump service?+

Relieve all air and fluid pressure, disconnect the air supply, trigger the gun safely, secure the sprayer, and verify that no stored pressure remains.

Find the Correct Replacement Part

Restore AirCoat 620 Priming, Pressure, and Pump Sealing

Browse pump blocks, cylinders, glands, leather and PTFE V-packings, springs, gaskets, valve bodies, balls, guides, retainers, pins, washers, cotter pins, and repacking kits listed on this assembly page. Verify the exact Titan part number and diagram callout before ordering.

Search using:

Titan part number
Fluid-pump diagram callout
Packing or valve position
Operating symptom
Related wear component

AirCoat 620 Fluid Pump Assembly

Restore Priming, Pressure, Sealing, and One-Way Material Flow
