AirCoat 620 High pressure filter

AirCoat 620 High pressure filter
Titan 0533513 Spring
Titan 0533513 Spring

Item No: 2

Part #: 0533513

Titan 0533513 Spring is an OEM spring used in the high-pressure fluid filter assembly of AirCoat...

$11.80
QTY:
Titan 0533514 Filter Element
Titan 0533514 Filter Element

Item No: 3

Part #: 0533514

Titan 0533514 Filter Element is an OEM 60-mesh high-pressure filter element used in the fluid fi...

Retail Price: $38.00
You save: $2.09 (5.50%)
Our Price: $35.91
QTY:

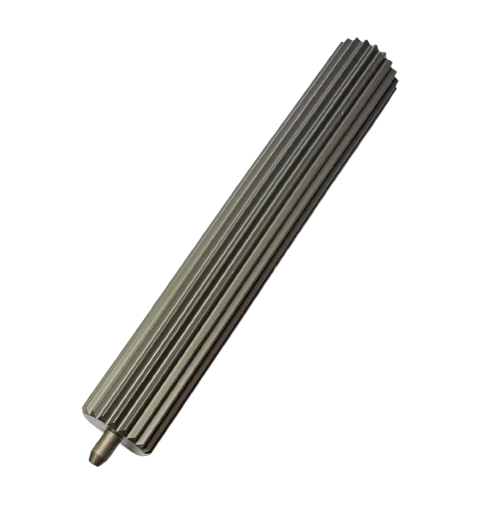

Titan 0533515 Filter Support
Titan 0533515 Filter Support

Item No: 4

Part #: 0533515

Titan 0533515 Filter Support is an OEM filter support used in the high-pressure filter assembly ...

$28.20
QTY:
Titan 0533533 O-Ring
Titan 0533533 O-Ring

Item No: 5

Part #: 0533533

Titan 0533533 O-Ring is an OEM O-ring used in the fluid and air sealing applications of AirCoat ...

$5.60
QTY:
Titan 0533523 Gasket, PTFE
Titan 0533523 Gasket, PTFE

Item No: 6

Part #: 0533523

Titan 0533523 Gasket, PTFE is an OEM thin PTFE gasket used in the high-pressure filter assembly ...

$5.60
QTY:
Titan 0533525 Pipe Plug
Titan 0533525 Pipe Plug

Item No: 8

Part #: 0533525

Titan 0533525 Pipe Plug is an OEM pipe plug used in the high-pressure filter assembly of AirCoat...

$13.80
QTY:
Titan 0533518 Nipple
Titan 0533518 Nipple

Item No: 9

Part #: 0533518

  OEM Titan Fluid Connector Titan 0533518 Nipple is an OEM threaded pipe fitting that provi...

$17.80
QTY:
Titan 0533516 Nipple
Titan 0533516 Nipple

Item No: 10

Part #: 0533516

  OEM Titan Fluid Connector Titan 0533516 Nipple is an OEM threaded pipe fitting used to co...

$15.80
QTY:
Titan 0533517 Bleed Valve Assembly
Titan 0533517 Bleed Valve Assembly

Item No: 11

Part #: 0533517

Titan 0533517 Bleed Valve Assembly is an OEM bleed valve assembly used in the high-pressure filt...

Retail Price: $141.60
You save: $14.73 (10.40%)
Our Price: $126.87
QTY:

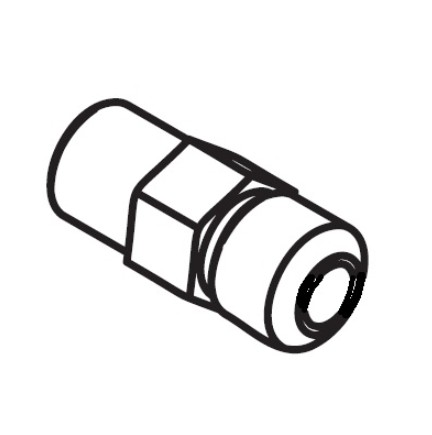

Titan 0533634 Spray Hose Outlet Fitting
Titan 0533634 Spray Hose Outlet Fitting

Item No: 12

Part #: 0533634

Titan 0533634 Spray Hose Outlet Fitting is an OEM fitting used to connect the high-pressure spra...

$19.20
QTY:
Titan 0533127 Return Tube Assembly
Titan 0533127 Return Tube Assembly

Item No: 13

Part #: 0533127

Titan 0533127 Return Tube Assembly is an OEM return tube assembly used in the fluid system of Po...

$10.30
QTY:

Titan AirCoat 620 Parts · High-Pressure Filter

Protect Fluid Components and Maintain Consistent Material Flow

Shop diagram-matched parts for the Titan AirCoat 620 High-Pressure Filter, including the spring, 60-mesh filter element, filter support, O-ring, PTFE gasket, pipe plug, fluid nipples, bleed valve assembly, spray-hose outlet fitting, and return tube assembly. Confirm each replacement by diagram item number and exact Titan part number.

01
60-Mesh Fluid Filtration
Capture debris before it reaches the spray hose, gun, tip, and downstream fluid components.
02
Stable Element Support
Use the spring and filter support to keep the element correctly positioned and sealed under pressure.
03
Leak-Resistant Sealing
Service the O-ring, PTFE gasket, pipe plug, and threaded fittings that contain pressurized coating.
04
Controlled Outlet and Bleed Flow
Maintain the bleed valve, hose outlet fitting, nipples, and return tube used for pressure control and routing.
Assembly Overview

AirCoat 620 High-Pressure Filter Overview

The Titan AirCoat 620 High-Pressure Filter is the pressurized fluid-cleaning section positioned between the pump and downstream spray equipment. Its primary purpose is to capture particulate contamination before material reaches the spray hose, gun, and tip, helping preserve fluid flow, pressure stability, and finish quality.

The 60-mesh filter element performs the filtration work, while the spring and filter support keep the element correctly seated so fluid cannot bypass the filtering surface. The O-ring and PTFE gasket seal the assembly, and the pipe plug, nipples, bleed valve, outlet fitting, and return tube provide the required pressure-control, connection, and fluid-routing functions.

Main Functions

Functions Supported by the High-Pressure Filter

  • Captures debris and coating contaminants before they reach downstream spray components.
  • Supports consistent material flow and pressure by reducing blockage in the hose, gun, and tip.
  • Keeps the filter element seated through the spring and filter support.
  • Contains high-pressure coating through the O-ring, PTFE gasket, plug, and threaded connections.
  • Supports pressure bleeding, spray-hose connection, and return-fluid routing.
Service Applications

Common High-Pressure Filter Service Applications

  • Replacing a clogged, damaged, or contaminated filter element.
  • Correcting pressure fluctuation, restricted material flow, or inconsistent spray output.
  • Repairing leaks at the filter seals, plug, nipples, valve, or outlet fitting.
  • Restoring proper pressure-relief operation through bleed-valve service.
  • Replacing damaged hose-outlet or return-tube connections.
Troubleshooting & Maintenance

Common AirCoat 620 High-Pressure Filter Symptoms

Use the symptom to isolate filtration, sealing, bleed-valve, outlet, or return-path problems before ordering parts.

Operating symptom Areas to inspect Recommended action
Material flow is restricted or spray pressure drops Filter element 0533514, spring 0533513, filter support 0533515, coating viscosity, and downstream restrictions Relieve pressure, inspect and clean or replace the 60-mesh element, and confirm the spring and support keep it correctly seated.
Spray pattern becomes uneven or contaminated Filter element, element seating, fluid cleanliness, gun filter, spray tip, and hose condition Inspect the complete filtration path and replace any damaged or persistently contaminated filter element.
Fluid leaks around the filter assembly O-ring 0533533, PTFE gasket 0533523, pipe plug 0533525, nipples 0533518 and 0533516, and threaded sealing surfaces Identify the exact leak point and replace damaged seals or fittings rather than overtightening the assembly.
Bleed valve does not relieve pressure correctly Bleed valve assembly 0533517, return tube assembly 0533127, connected nipple, contamination, and valve seating Relieve pressure safely, inspect the valve and return path for blockage, leakage, or damaged seating surfaces.
Fluid leaks at the spray-hose connection Spray hose outlet fitting 0533634, nipple connections, threads, hose coupling, and sealing surfaces Inspect both mating connections and replace damaged fittings or hose couplings before repressurizing.
Filter element repeatedly clogs Coating contamination, inadequate straining, dried material, filter mesh, flushing practice, and pump cleanliness Correct the source of contamination and improve material preparation and flushing instead of repeatedly replacing the element.
Major Replacement Components

High-Value AirCoat 620 Filter Parts

These verified components represent the primary filtration, support, sealing, bleed, and outlet service areas.

ELEMENT SUPPORT

Titan 0533513 Spring

Applies consistent force to keep the filter element correctly seated and reduce fluid bypass around the filtration surface.

View Titan 0533513 Spring →
STRUCTURAL SUPPORT

Titan 0533515 Filter Support

Provides structural support for the filter element and helps maintain its correct operating position within the assembly.

View Titan 0533515 Filter Support →
Parts Selection Guide

How to Order the Correct High-Pressure Filter Component

Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.

STEP 1

Identify the failure mode

Determine whether the problem involves restriction, contamination, leakage, pressure bleeding, hose connection, or return routing.

STEP 2

Locate the diagram callout

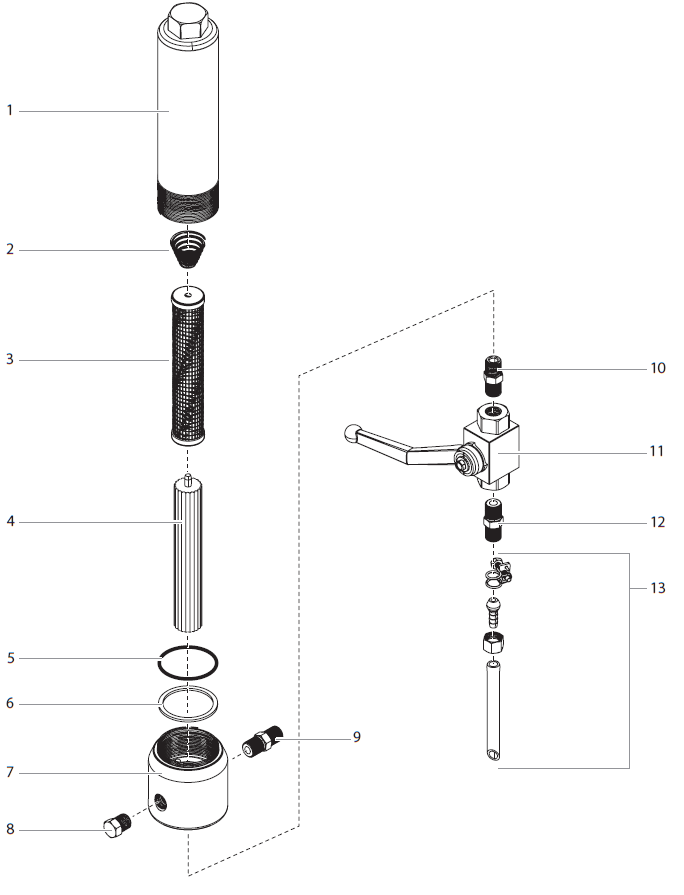

Use the exploded view to identify the exact filter, seal, fitting, valve, or tube position.

STEP 3

Confirm the part number

Match the item number to the complete Titan part number before ordering.

STEP 4

Inspect related components

Check the element, spring, support, O-ring, gasket, plug, nipples, valve, outlet fitting, and return tube together.

Preventive Care

Maintenance Practices for the High-Pressure Filter

  • Relieve all fluid and air pressure before opening the filter or disconnecting any fitting.
  • Inspect and clean the 60-mesh element at intervals appropriate for the coating and operating conditions.
  • Replace an element that is torn, distorted, damaged, or cannot be cleaned completely.
  • Inspect the spring and filter support for corrosion, fatigue, deformation, or poor element seating.
  • Check the O-ring and PTFE gasket for cuts, flattening, chemical attack, or material buildup.
  • Operate and inspect the bleed valve regularly so the pressure-relief and return path remain clear.
  • Flush the filter, hose outlet, and return tube thoroughly before coating material dries.
Complete Repair Planning

Build a Complete AirCoat 620 Filter Repair

When replacing the filter element, inspect the spring, support, O-ring, PTFE gasket, and all internal seating surfaces. When servicing the bleed valve, inspect the return tube, connected nipple, valve seat, and pressure-relief path together.

When correcting an external leak, inspect both mating threads and sealing components rather than replacing only the visible fitting. A complete repair restores clean material flow, pressure containment, controlled bleeding, and dependable hose delivery.

Fast Parts Navigation

Shop Major AirCoat 620 High-Pressure Filter Components

Use these verified internal links to continue to the complete assembly and major service components.

Frequently Asked Questions

Titan AirCoat 620 High-Pressure Filter FAQs

Use these answers to identify filtration, sealing, bleed-valve, outlet, and return-path repairs.

What does the AirCoat 620 High-Pressure Filter do?+
It removes debris from the pressurized coating stream before material reaches the spray hose, gun, and tip.
What mesh is Titan 0533514 Filter Element?+
It is a 60-mesh high-pressure fluid filter element.
What does Titan 0533513 Spring do?+
It keeps the filter element seated against the sealing surfaces and helps prevent unfiltered fluid from bypassing the element.
What does Titan 0533515 Filter Support do?+
It supports the filter element structurally and helps maintain its correct operating position.
What causes pressure loss across the filter?+
A clogged element, collapsed element, restricted fitting, damaged support, coating buildup, or downstream blockage can reduce flow.
When should the filter element be replaced?+
Replace it when it is torn, distorted, damaged, persistently clogged, or no longer cleans completely.
Why can the filter assembly leak?+
A damaged O-ring, PTFE gasket, loose plug, defective nipple, damaged threads, or poor seating can allow pressurized fluid to escape.
What does the bleed valve assembly do?+
It provides a controlled path for relieving fluid pressure and routing coating into the return circuit.
What does the spray-hose outlet fitting do?+
It connects the filtered high-pressure fluid outlet to the spray hose.
What safety steps are required before filter service?+
Relieve all air and fluid pressure, trigger the gun safely, disconnect the air supply, and verify zero stored pressure before opening the filter.
Find the Correct Replacement Part

Restore Clean Fluid Flow and Reliable Pressure Control

Browse filter elements, springs, supports, O-rings, PTFE gaskets, plugs, nipples, bleed valves, outlet fittings, and return tubes listed on this assembly page. Verify the exact Titan part number and diagram callout before ordering.

Search using:
  • Titan part number
  • High-pressure filter callout
  • Filtration or sealing component
  • Operating symptom
  • Related bleed or outlet fitting

Related Titan AirCoat 620 High-Pressure Filter Searches
