Shop diagram-matched parts for the Titan AirCoat 620 Upper Shroud Assembly, including top, left, right, and rear shrouds, air regulator components, tubing, push-in connectors, elbows, valves, brackets, lock washers, nuts, rings, and fastening hardware. Confirm each replacement by diagram callout and exact Titan part number.

Protective Housing Coverage

Restore the top, side, and rear shrouds that protect upper pneumatic and control components.

Organized Air Routing

Identify tubes, push-in connectors, elbows, and threaded fittings that maintain clean pneumatic routing.

Air-Control Support

Service the air pressure regulator, regulator assembly, ball valve, and FRL mounting components.

Complete Hardware Matching

Confirm rings, screws, brackets, washers, nuts, and connectors by exploded-view callout.

Assembly Overview

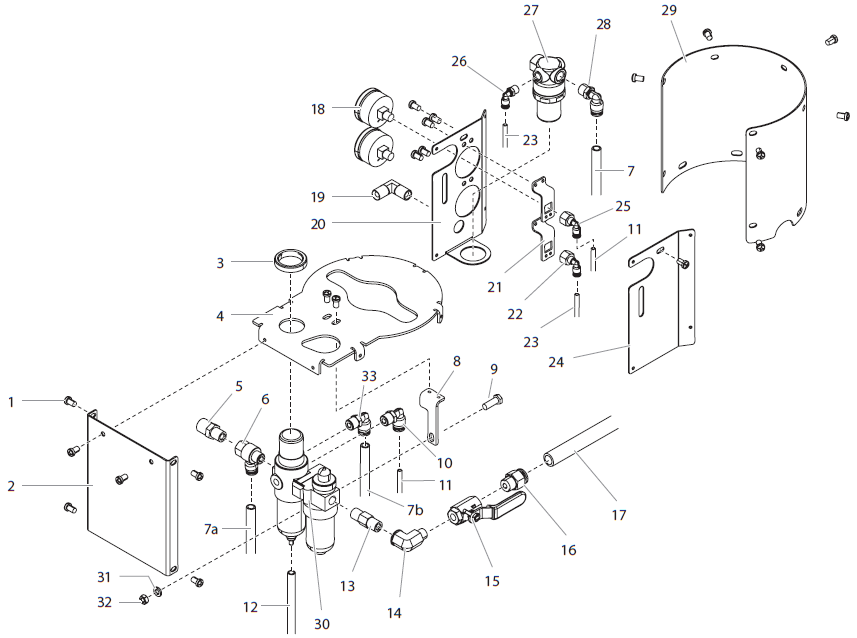

AirCoat 620 Upper Shroud Assembly Overview

The Titan AirCoat 620 Upper Shroud Assembly is the protective and pneumatic-routing section positioned around the upper area of the sprayer. Its shrouds shield internal air-control and connection components from overspray, dust, impact, and job-site debris while maintaining access to the tubing, regulator, valves, and fittings required for proper air delivery.

The assembly combines the top shroud, left and right side shrouds, rear shroud, FRL bracket, air pressure regulator, air regulator assembly, ball valve, tubing, push-in connectors, elbows, threaded connectors, support brackets, and fastening hardware. Together, these components help maintain regulated airflow, secure line routing, controlled isolation, and stable mounting around the upper machine housing.

Main Functions

Functions Supported by the Upper Shroud Assembly

Protects upper pneumatic and control components from overspray, debris, and incidental impact.
Supports organized routing of tubes and air lines through push-in connectors, elbows, and threaded fittings.
Provides mounting support for the FRL and air-regulation components.
Helps maintain controlled airflow through the regulator, ball valve, tubes, and related connections.
Secures the upper housing with shrouds, brackets, rings, washers, nuts, and screws.

Service Applications

Common Upper Shroud Service Applications

Replacing cracked, missing, or overspray-damaged top, side, or rear shrouds.
Correcting loose FRL or regulator mounting.
Repairing leaking or disconnected pneumatic tubing and push-in fittings.
Replacing damaged elbows, ball valves, threaded connectors, or air regulators.
Restoring secure hardware and proper line routing after upper-machine service.

Troubleshooting & Maintenance

Common AirCoat 620 Upper Shroud Assembly Symptoms

Use the symptom to isolate protective, pneumatic-routing, regulator, valve, or mounting problems before ordering parts.

Operating symptom	Areas to inspect	Recommended action
Shroud is cracked, loose, or missing	Top shroud 0533468, left shroud 0533489, right shroud 0533495, rear shroud 0533501, screws, ring, washers, and nut	Inspect every mounting point and replace damaged covers and missing fastening hardware together.

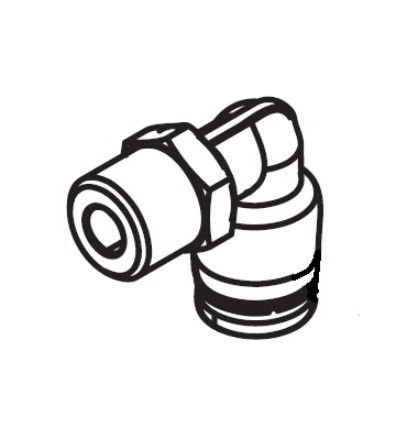

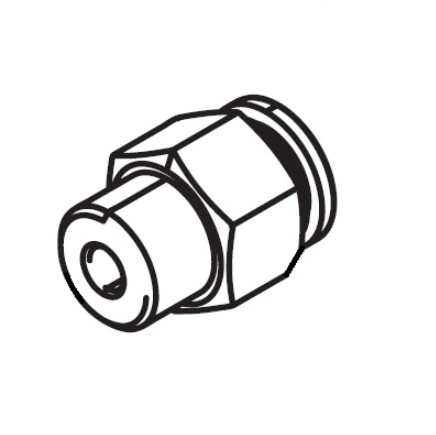

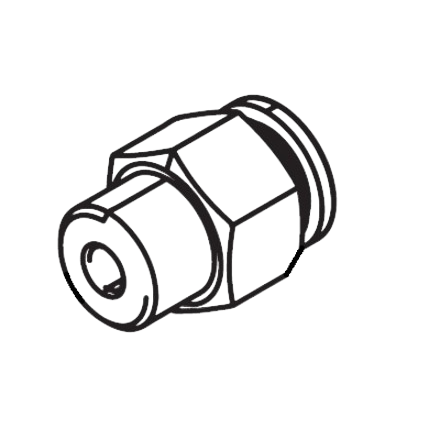

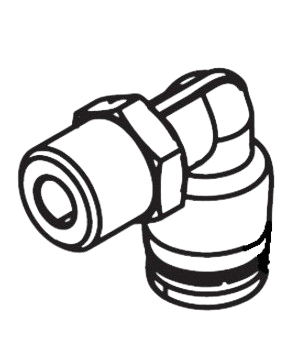

Air leaks near tubing connections	Push-in connectors 0533496, 0533621, and 0533476; elbows 0533491, 0533499, and 0533629; tubes 0533473, 0533478, 0533479, 0533493, and 0533595	Relieve air pressure, identify the exact leaking connection, and check tube ends for cuts, distortion, or poor seating.
Air pressure is unstable	Air pressure regulator 0533497, air regulator assembly 0533512, ball valve 0533594, tubing, and fittings	Confirm supply pressure and downstream restriction before replacing the regulator or regulator assembly.

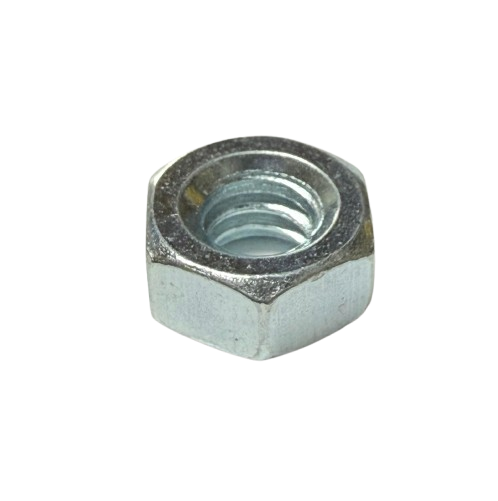

FRL or regulator assembly moves during operation	FRL bracket 0533592, air motor bracket 0533490, screws, lock washer 9821503, nut 9810108, and adjoining mounts	Correct bracket alignment and replace loose, missing, or damaged mounting hardware.
Air flow cannot be isolated correctly	Ball valve 0533594, threaded connector 0533482, elbow 0533456, regulator components, and connected tubing	Inspect the valve and surrounding fittings for leakage, damage, contamination, or incorrect orientation.
Tubing rubs, kinks, or disconnects	Upper-shroud routing, tubes, push-in fittings, elbows, brackets, and shroud clearances	Restore the intended routing and replace damaged tubing or connectors before operating the sprayer.

Major Replacement Components

High-Value AirCoat 620 Upper Shroud Parts

These verified components represent the primary protective, air-control, connection, and mounting service areas.

TOP PROTECTION

Titan 0533468 Top Shroud

Protects the upper machine housing and helps shield pneumatic and control components from overspray, dust, and impact.

View Titan 0533468 Top Shroud →

LEFT-SIDE COVER

Titan 0533489 Red Left Shroud

Protects the left side of the upper housing while preserving intended fit and access around internal components.

View Titan 0533489 Red Left Shroud →

RIGHT-SIDE COVER

Titan 0533495 Red Right Shroud

Restores right-side protection and enclosure around the AirCoat 620 upper assembly.

View Titan 0533495 Red Right Shroud →

REAR PROTECTION

Titan 0533501 Red Rear Shroud

Covers the rear upper housing and helps protect pneumatic routing and mounted components.

View Titan 0533501 Red Rear Shroud →

AIR REGULATION

Titan 0533512 Air Regulator Assembly

Manages air-pressure control within the upper assembly and supports consistent pneumatic operation.

View Titan 0533512 Air Regulator Assembly →

FRL SUPPORT

Titan 0533592 Bracket FRL

Secures the filter-regulator-lubricator area and helps maintain stable positioning and organized line routing.

View Titan 0533592 Bracket FRL →

Parts Selection Guide

How to Order the Correct Upper Shroud Component

Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.

STEP 1

Identify the service area

Determine whether the issue involves a protective cover, tube, fitting, valve, regulator, bracket, or fastener.

STEP 2

Locate the diagram callout

Use the exploded view to identify the exact component position and item number.

STEP 3

Confirm the part number

Match the callout to the full Titan part number before ordering.

STEP 4

Inspect adjacent parts

Check mating tubes, connectors, brackets, washers, nuts, screws, and shroud mounting points.

Preventive Care

Maintenance Practices for the Upper Shroud Assembly

Relieve air and fluid pressure before removing any shroud or disconnecting tubing.
Clean overspray and debris from the top, side, and rear shrouds without forcing contamination into fittings.
Inspect tubes for abrasion, hardening, kinks, cuts, or flattened ends.
Check push-in connectors and elbows for leakage and confirm each tube is fully seated.
Inspect the regulator, ball valve, and FRL mounting for movement, leakage, or difficult adjustment.
Tighten loose brackets and replace damaged washers, nuts, rings, or screws.
Restore the original routing so tubes do not rub against shrouds, brackets, or moving components.

Complete Repair Planning

Build a Complete AirCoat 620 Upper Shroud Repair

When replacing a shroud, inspect its screws, ring, washers, nut, brackets, and neighboring tube clearances. When servicing the air regulator or ball valve, inspect all connected tubes, push-in fittings, elbows, threaded connectors, and mounting hardware.

When correcting repeated tube disconnection or leakage, replace damaged tube ends and defective connectors rather than forcing worn parts back together. A complete repair protects the upper housing, restores controlled airflow, and reduces repeat service.

Fast Parts Navigation

Use these verified internal links to continue to the complete diagram and major service components.

Complete Upper Shroud Diagram Top Shroud 0533468 Left Shroud 0533489 Right Shroud 0533495 Rear Shroud 0533501 Air Regulator Assembly 0533512

Frequently Asked Questions

Titan AirCoat 620 Upper Shroud Assembly FAQs

Use these answers to identify protective, pneumatic-routing, regulator, and mounting repairs.

What is the function of the AirCoat 620 Upper Shroud Assembly?+

It protects upper pneumatic and control components while supporting organized tubing, regulator, valve, fitting, and bracket placement.

Which covers make up the upper shroud enclosure?+

The assembly includes a top shroud, red left shroud, red right shroud, and red rear shroud.

What does Titan 0533512 Air Regulator Assembly do?+

It manages air-pressure control within the upper assembly and supports consistent pneumatic operation.

What does Titan 0533592 Bracket FRL support?+

It secures the filter-regulator-lubricator area and helps maintain stable positioning and organized line routing.

Why do push-in connectors leak?+

Common causes include damaged tube ends, incomplete insertion, contamination, worn connector seals, or side loading from poor routing.

When should a shroud be replaced?+

Replace a shroud when it is cracked, deformed, missing mounting points, or no longer protects the internal components correctly.

What can cause unstable air pressure?+

Possible causes include regulator wear, supply-pressure variation, tubing leaks, restricted fittings, valve problems, or downstream air demand.

Should tubing be replaced when a connector is changed?+

Inspect the tube end carefully. Replace or properly trim it if it is cut, flattened, hardened, or unable to seal securely.

Can the left and right shrouds be interchanged?+

No. They are side-specific protective covers and should be ordered by the correct Titan part number.

What safety steps should be taken before upper-shroud service?+

Relieve air and fluid pressure, disconnect the air supply, secure the machine, and verify that no stored pressure remains before removing covers or tubing.

Find the Correct Replacement Part

Restore AirCoat 620 Upper Protection and Air Routing

Browse shrouds, tubes, push-in connectors, elbows, regulators, valves, brackets, washers, nuts, rings, and screws listed on this assembly page. Verify the exact Titan part number and diagram callout before ordering.

Search using:

Titan part number
Upper-shroud diagram callout
Protective cover location
Pneumatic connection type
Operating symptom

Aircoat 620 Upper shroud assembly

Protect Upper Components and Restore Reliable Pneumatic Line Routing
