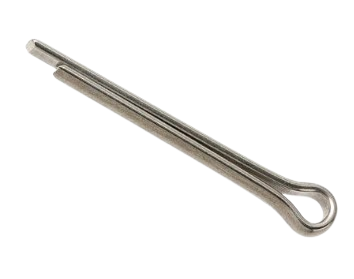

Shop diagram-matched components for the Titan AirCoat 620 Motor/Pump Assembly, including mounting brackets, stanchions, inlet and outlet fittings, high-pressure fluid regulation, filter support, spider-hose distribution, connectors, washers, cotter pins, and fasteners. Confirm the item number and exact Titan part number before ordering.

Diagram-Based Identification

Match each bracket, fitting, regulator, hose, washer, pin, and fastener to its assembly callout.

Complete Pressure-Path Diagnosis

Trace material from the inlet siphon elbow through regulation, filtration support, and outlet distribution.

Exact Part Selection

Verify the Titan part number before ordering fluid-control, structural, or connection hardware.

System-Level Repair

Inspect adjoining fittings, hoses, brackets, washers, pins, and fasteners during service.

Assembly Overview

What the AirCoat 620 Motor/Pump Assembly Contains

The Titan AirCoat 620 Motor/Pump Assembly is the primary structural and fluid-control section of the sprayer. It connects the air-powered drive system to the fluid pump while supporting the components responsible for material intake, pressure regulation, filtration, and high-pressure fluid distribution. Proper alignment of this assembly is essential for consistent operating pressure, reliable coating delivery, and long service life. Within this assembly, the inlet siphon connection supplies coating material to the pump, the high-pressure fluid regulator controls operating pressure, and the outlet fittings and spider hose distribute pressurized coating to the downstream spray system. Structural brackets, stanchions, lock washers, cotter pins, and mounting hardware maintain correct alignment while helping reduce vibration during operation.

The exploded parts diagram for this assembly allows technicians and contractors to identify the exact replacement component required for maintenance or repair. Before ordering, always match the exploded-view item number with the correct Titan part number and inspect related fittings, hoses, regulators, brackets, and mounting hardware to ensure the entire pressure-delivery system remains properly supported and leak free.

Together, these parts support alignment, material intake, pressure regulation, high-pressure filtration mounting, and fluid distribution. Structural components keep the motor and pump correctly positioned, while fittings and hoses move coating through the pressure-delivery path.

Main Functions

Systems Supported by the Motor/Pump Assembly

Supports and aligns the motor, pump, regulator, filter, and connected hardware.
Routes coating material into the pump through the inlet siphon elbow and adjoining fittings.
Controls downstream pressure through the high-pressure fluid regulator.
Supports high-pressure filtration through the dedicated filter bracket.
Distributes pressurized coating through the outlet fitting, fluid nipple, spider hose, elbow, and connector.

Service Applications

When Contractors Use This Parts Diagram

Correcting loose, misaligned, or vibration-prone motor and pump mounting.
Repairing leaks at inlet, regulator, filter, outlet, or spider-hose connections.
Diagnosing unstable pressure or inconsistent downstream material delivery.
Replacing bent brackets, damaged stanchions, missing pins, or loosened fastening hardware.
Identifying exact fittings and fluid-routing components before maintenance.

Troubleshooting & Maintenance

Common AirCoat 620 Motor/Pump Assembly Symptoms

Use the symptom to isolate structural, intake, regulation, filtration, or outlet-distribution problems before ordering parts.

Operating symptom	Areas to inspect	Recommended action
Excessive vibration or movement	Bracket 0533450, stanchion 0533625, filter bracket 0533452, lock washers, cotter pins, and screws	Inspect alignment, looseness, missing hardware, and structural damage before continued operation.
Material leaks at the inlet	Inlet siphon elbow 0533627, nipple 0533457, pump inlet connection, and thread condition	Relieve pressure, clean the area, and identify the exact leaking joint before replacement.
Pressure cannot be adjusted correctly	High-pressure fluid regulator 0533252, adjoining nipples, outlet fitting, seals, and downstream restriction	Confirm the regulator is the source and rule out a clogged filter, hose, or outlet path.
Leak near the regulator or outlet	Outlet fitting 0533459, fluid-outlet nipple 0533461, connector 0533460, elbow 0533641, and spider hose 0533462	Inspect every threaded and hose connection in the downstream pressure path.
Filter assembly is loose or misaligned	Filter bracket 0533452, bracket 0533450, washers, screws, stanchion, and mounting points	Correct bracket alignment and replace damaged or missing fastening hardware.
Uneven material distribution	Spider hose 0533462, 90-degree elbow 0533641, connector 0533460, outlet nipple, and downstream hoses	Check for restriction, collapse, leakage, contamination, or damaged connection surfaces.

Major Replacement Components

High-Value AirCoat 620 Motor/Pump Parts

These verified components represent the assembly's major structural, intake, regulation, and distribution service areas.

PRESSURE CONTROL

Titan 0533252 HP Fluid Regulator

Controls high-pressure fluid delivery and is a primary inspection point for unstable adjustment, pressure drift, or regulator leakage.

View Titan 0533252 HP Fluid Regulator →

FLUID DISTRIBUTION

Titan 0533462 Spider Hose

Provides multi-port high-pressure fluid distribution from the motor/pump assembly to connected system components.

View Titan 0533462 Spider Hose →

MATERIAL INTAKE

Titan 0533627 Inlet Siphon Elbow

Routes coating material into the pump and should be checked for leakage, restriction, damaged threads, or poor sealing.

View Titan 0533627 Inlet Siphon Elbow →

STRUCTURAL SUPPORT

Titan 0533450 Bracket

Supports correct mounting and alignment of assembly components and helps control movement and mechanical stress.

View Titan 0533450 Bracket →

VERTICAL SUPPORT

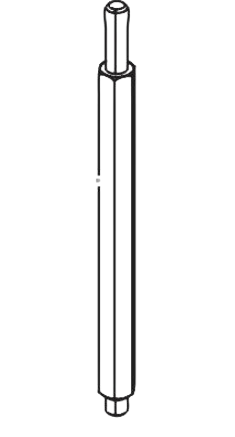

Titan 0533625 Stanchion

Provides vertical structural support for assembly positioning, stability, and mounting alignment.

View Titan 0533625 Stanchion →

FILTER SUPPORT

Titan 0533452 Filter Bracket

Secures and positions the high-pressure filter within the motor/pump fluid-delivery layout.

View Titan 0533452 Filter Bracket →

Parts Selection Guide

How to Order the Correct AirCoat 620 Motor/Pump Part

Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.

STEP 1

Identify the symptom

Record whether the issue is vibration, intake leakage, pressure-control failure, filter movement, or outlet leakage.

STEP 2

Locate the component

Determine whether the failed part is structural, inlet-side, regulator-side, filter-support, or outlet-side.

STEP 3

Match the diagram

Use the exploded-view callout to confirm the exact Titan part number.

STEP 4

Inspect mating parts

Check connected fittings, hose ends, brackets, washers, pins, threads, and fasteners before ordering.

Preventive Care

Maintenance Practices That Protect the Motor/Pump Assembly

Relieve fluid and air pressure before inspection, cleaning, or disassembly.
Check brackets, stanchions, screws, cotter pins, and lock washers for looseness or damage.
Inspect inlet and outlet fittings for leakage, thread wear, or coating buildup.
Keep the high-pressure filter and filter bracket clean and securely mounted.
Inspect the regulator for leakage, pressure drift, or difficult adjustment.
Check the spider hose and adjoining fittings for abrasion, restriction, cracking, or damaged ends.
Correct vibration or misalignment before it damages connected hoses, fittings, or regulators.

Complete Repair Planning

Build a Complete AirCoat 620 Motor/Pump Repair

When servicing the regulator, inspect the inlet nipple, outlet fitting, fluid-outlet nipple, spider hose, elbow, connector, and downstream restrictions. When repairing structural mounting, inspect both brackets, stanchions, washers, pins, and screws.

When correcting inlet leakage, inspect the siphon elbow, nipple, mating threads, and upstream suction system. A complete repair plan reduces repeat teardown and prevents new parts from being damaged by unresolved alignment or restriction.

Fast Parts Navigation

Use these verified internal links to continue directly to the complete diagram and major service components.

Complete Motor/Pump Diagram HP Fluid Regulator 0533252 Spider Hose 0533462 Inlet Siphon Elbow 0533627 Bracket 0533450 Filter Bracket 0533452

Frequently Asked Questions

Titan AirCoat 620 Motor/Pump Assembly FAQs

Use these answers to confirm structural, inlet, regulator, filter-support, and outlet-distribution repairs.

What does the AirCoat 620 Motor/Pump Assembly do?+

It supports the motor and pump, routes material into the pump, controls high-pressure fluid delivery, supports filtration, and distributes coating through outlet fittings and the spider hose.

What does Titan 0533252 HP Fluid Regulator do?+

It controls downstream high-pressure fluid delivery and helps maintain the selected operating pressure.

What is Titan 0533462 Spider Hose used for?+

It distributes pressurized coating through multiple fluid connections within the AirCoat 620 system.

What does Titan 0533627 Inlet Siphon Elbow do?+

It forms the angled inlet connection that routes coating material from the siphon path into the pump.

Why is Titan 0533450 Bracket important?+

It supports assembly positioning and alignment and helps limit vibration and mechanical stress.

What is Titan 0533625 Stanchion used for?+

It provides vertical support and helps stabilize mounted motor/pump components.

What does Titan 0533452 Filter Bracket support?+

It positions and secures the high-pressure filter within the fluid-delivery system.

What can cause leakage around this assembly?+

Possible causes include loose threaded fittings, damaged hose ends, worn sealing surfaces, regulator leakage, or vibration-related loosening.

Should all mounting hardware be replaced together?+

Not automatically, but inspect screws, washers, pins, brackets, and stanchions together and replace every damaged or missing item.

What should be checked before replacing the regulator?+

Check the fluid pump, high-pressure filter, inlet path, outlet fittings, spider hose, downstream restrictions, and the regulator connections.

Find the Correct Replacement Part

Restore AirCoat 620 Pressure Delivery With Diagram-Matched Parts

Browse structural supports, inlet fittings, pressure-regulation parts, filter mounting, outlet fittings, spider-hose components, washers, pins, and fasteners listed on this assembly page. Verify the exact Titan part number before ordering.

Search using:

Titan part number
Motor/pump diagram callout
Component location
Operating symptom
Mating connection

Related Titan AirCoat 620 Motor/Pump Searches

Titan AirCoat 620 Motor Pump Assembly Parts Titan 0533252 HP Fluid Regulator Titan 0533462 Spider Hose Titan 0533627 Inlet Siphon Elbow Titan 0533450 Bracket Titan 0533625 Stanchion Titan 0533452 Filter Bracket Titan 0533461 Fluid Outlet Nipple
