Titan AirCoat 620 Parts · Motor and Pump
Restore Stable Mounting, Fluid Intake, Regulation, and Distribution
Shop diagram-matched components for the Titan AirCoat 620 Motor/Pump Assembly, including mounting brackets, stanchions, inlet and outlet fittings, high-pressure fluid regulation, filter support, spider-hose distribution, connectors, washers, cotter pins, and fasteners. Confirm the item number and exact Titan part number before ordering.
What the AirCoat 620 Motor/Pump Assembly Contains
The Titan AirCoat 620 Motor/Pump Assembly is the primary structural and fluid-control section of the sprayer. It connects the air-powered drive system to the fluid pump while supporting the components responsible for material intake, pressure regulation, filtration, and high-pressure fluid distribution. Proper alignment of this assembly is essential for consistent operating pressure, reliable coating delivery, and long service life. Within this assembly, the inlet siphon connection supplies coating material to the pump, the high-pressure fluid regulator controls operating pressure, and the outlet fittings and spider hose distribute pressurized coating to the downstream spray system. Structural brackets, stanchions, lock washers, cotter pins, and mounting hardware maintain correct alignment while helping reduce vibration during operation.
The exploded parts diagram for this assembly allows technicians and contractors to identify the exact replacement component required for maintenance or repair. Before ordering, always match the exploded-view item number with the correct Titan part number and inspect related fittings, hoses, regulators, brackets, and mounting hardware to ensure the entire pressure-delivery system remains properly supported and leak free.
Together, these parts support alignment, material intake, pressure regulation, high-pressure filtration mounting, and fluid distribution. Structural components keep the motor and pump correctly positioned, while fittings and hoses move coating through the pressure-delivery path.
Systems Supported by the Motor/Pump Assembly
- Supports and aligns the motor, pump, regulator, filter, and connected hardware.
- Routes coating material into the pump through the inlet siphon elbow and adjoining fittings.
- Controls downstream pressure through the high-pressure fluid regulator.
- Supports high-pressure filtration through the dedicated filter bracket.
- Distributes pressurized coating through the outlet fitting, fluid nipple, spider hose, elbow, and connector.
When Contractors Use This Parts Diagram
- Correcting loose, misaligned, or vibration-prone motor and pump mounting.
- Repairing leaks at inlet, regulator, filter, outlet, or spider-hose connections.
- Diagnosing unstable pressure or inconsistent downstream material delivery.
- Replacing bent brackets, damaged stanchions, missing pins, or loosened fastening hardware.
- Identifying exact fittings and fluid-routing components before maintenance.
Common AirCoat 620 Motor/Pump Assembly Symptoms
Use the symptom to isolate structural, intake, regulation, filtration, or outlet-distribution problems before ordering parts.
High-Value AirCoat 620 Motor/Pump Parts
These verified components represent the assembly's major structural, intake, regulation, and distribution service areas.

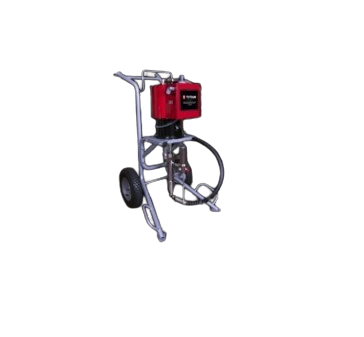

Titan 0533252 HP Fluid Regulator
Controls high-pressure fluid delivery and is a primary inspection point for unstable adjustment, pressure drift, or regulator leakage.
Titan 0533462 Spider Hose
Provides multi-port high-pressure fluid distribution from the motor/pump assembly to connected system components.

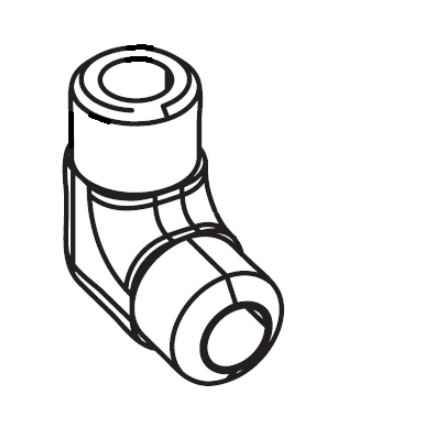

Titan 0533627 Inlet Siphon Elbow
Routes coating material into the pump and should be checked for leakage, restriction, damaged threads, or poor sealing.
Titan 0533450 Bracket
Supports correct mounting and alignment of assembly components and helps control movement and mechanical stress.

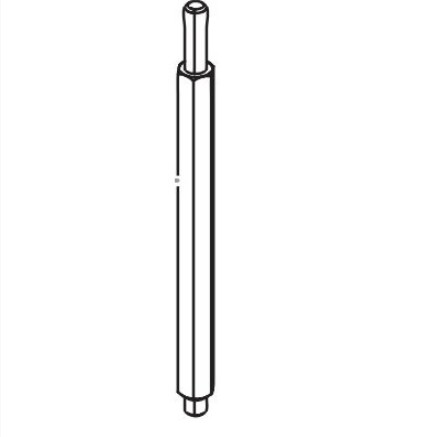

Titan 0533625 Stanchion
Provides vertical structural support for assembly positioning, stability, and mounting alignment.
Titan 0533452 Filter Bracket
Secures and positions the high-pressure filter within the motor/pump fluid-delivery layout.
How to Order the Correct AirCoat 620 Motor/Pump Part
Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.
Identify the symptom
Record whether the issue is vibration, intake leakage, pressure-control failure, filter movement, or outlet leakage.
Locate the component
Determine whether the failed part is structural, inlet-side, regulator-side, filter-support, or outlet-side.
Match the diagram
Use the exploded-view callout to confirm the exact Titan part number.
Inspect mating parts
Check connected fittings, hose ends, brackets, washers, pins, threads, and fasteners before ordering.
Maintenance Practices That Protect the Motor/Pump Assembly
- Relieve fluid and air pressure before inspection, cleaning, or disassembly.
- Check brackets, stanchions, screws, cotter pins, and lock washers for looseness or damage.
- Inspect inlet and outlet fittings for leakage, thread wear, or coating buildup.
- Keep the high-pressure filter and filter bracket clean and securely mounted.
- Inspect the regulator for leakage, pressure drift, or difficult adjustment.
- Check the spider hose and adjoining fittings for abrasion, restriction, cracking, or damaged ends.
- Correct vibration or misalignment before it damages connected hoses, fittings, or regulators.
Build a Complete AirCoat 620 Motor/Pump Repair
When servicing the regulator, inspect the inlet nipple, outlet fitting, fluid-outlet nipple, spider hose, elbow, connector, and downstream restrictions. When repairing structural mounting, inspect both brackets, stanchions, washers, pins, and screws.
When correcting inlet leakage, inspect the siphon elbow, nipple, mating threads, and upstream suction system. A complete repair plan reduces repeat teardown and prevents new parts from being damaged by unresolved alignment or restriction.
Shop Major AirCoat 620 Motor/Pump Components
Use these verified internal links to continue directly to the complete diagram and major service components.
Titan AirCoat 620 Motor/Pump Assembly FAQs
Use these answers to confirm structural, inlet, regulator, filter-support, and outlet-distribution repairs.
